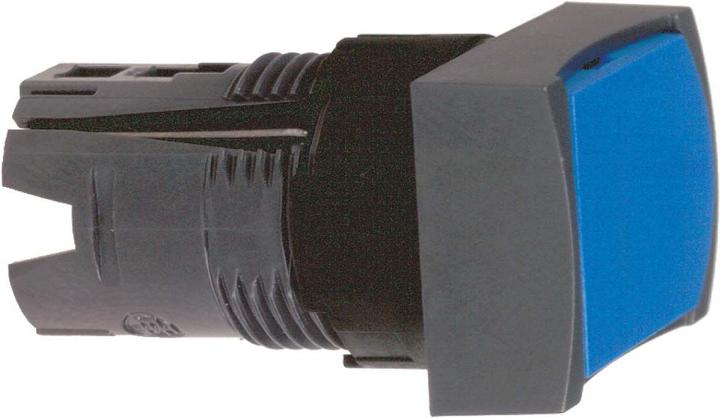

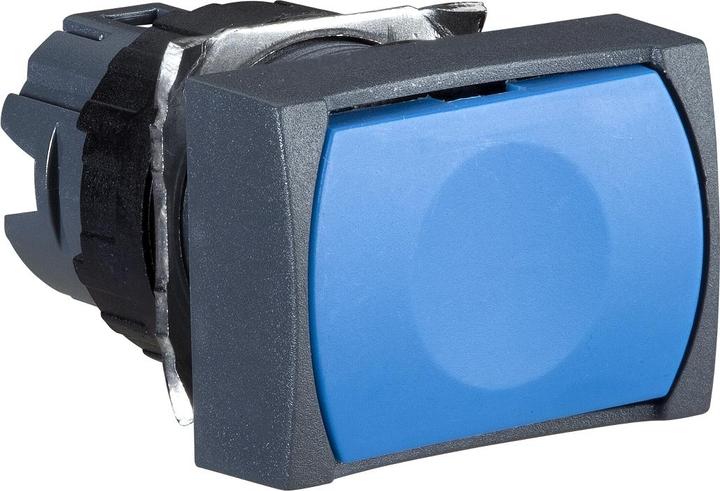

Schneider Electric Front Element, Rectangular ZB6DA6

Manufacturer: Schneider Electric
Description: Front element, rectangular for push button D16mm
Type: ZB6DA6
Button Color: Blue
Number of Control Points: 1
Lens Shape: Rectangular
Hole Diameter: 16.2 mm
Opening Width: 0 mm
Opening Height: 0 mm
Button Shape: Flat
Suitable for Lighting: No
With Protective Cover: No
Labeled: No
Switch Function Latching: No
Momentary: Yes
With Front Ring: Yes
Material of Front Ring: Plastic
Front Ring Color: Gray
Protection Class (IP), Front Side: IP65
Protection Class (NEMA), Front Side: Other

Additional Details:
Front element for Harmony push button ZB6. Plastic cover. Dimensions (WxHxD) 24x18x33 mm, mounting diameter 16 mm, weight 0.016 kg. Shape of the head is rectangular. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees C. The plastic program with a 16mm installation size combines easy installation with great flexibility in minimal space requirements. Certifications according to CCC, GOST, CSA, UL. Product standards according to EN/IEC 60947-5-1, JIS C 4520, CSA C22.2 No 14, EN/IEC 60947-1, UL 508, JIS C 852, EN/IEC 60947-5-5.
