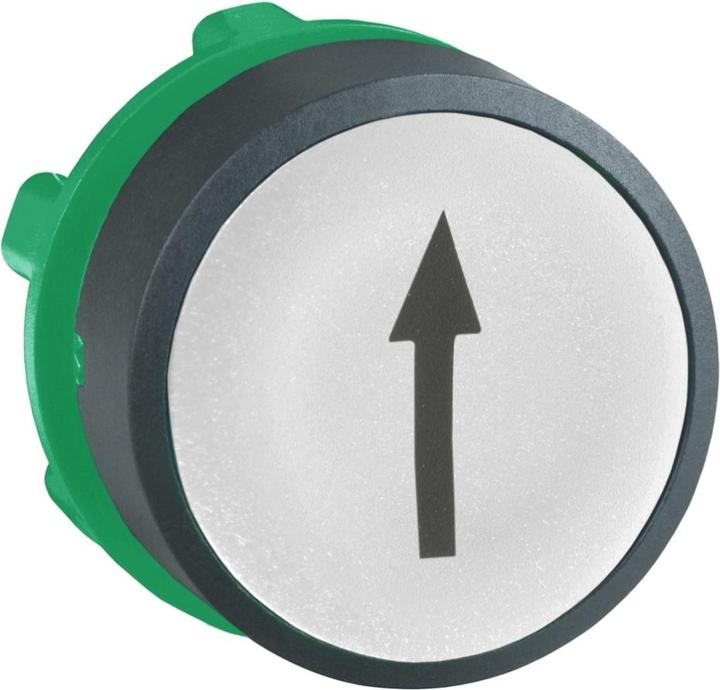

Schneider Electric Push Button ZB5AA334

Manufacturer: Schneider Electric
Description: Flat push button, white, arrow up
Type: ZB5AA334
Button color: white
Number of command points: 1
Lens shape: round
Hole diameter: 22.5 mm
Button shape: flat
Suitable for lighting: no
With protective cover: no
Labeled: yes
Latching switch function: no
Momentary: yes
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP), front side: IP66
Protection class (NEMA), front side: 13

Additional details:
Front element for Harmony ZB5 push button. White front, plastic bezel, arrow pointing up. Front element push button, white. Dimensions (WxHxD): 29x29x28 mm, mounting diameter: 22 mm, weight: 0.018 kg. Front element with white labeling in the push area, DM 22 without latching. Mechanical lifespan: 10,000,000 cycles. Head shape: round, standard. With high vibration resistance and chemical resistance, ambient temperature: -40 to +70 degrees C. The modular plastic program with a 22 mm installation size combines easy installation, efficiency, modern design, flexibility with maximum robustness. Certifications according to RINA, BV, LROS, CSA, DNV, GL, UL listed. Product standards according to JIS C 4520, EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, UL 508. EAN: 3389110134582.
