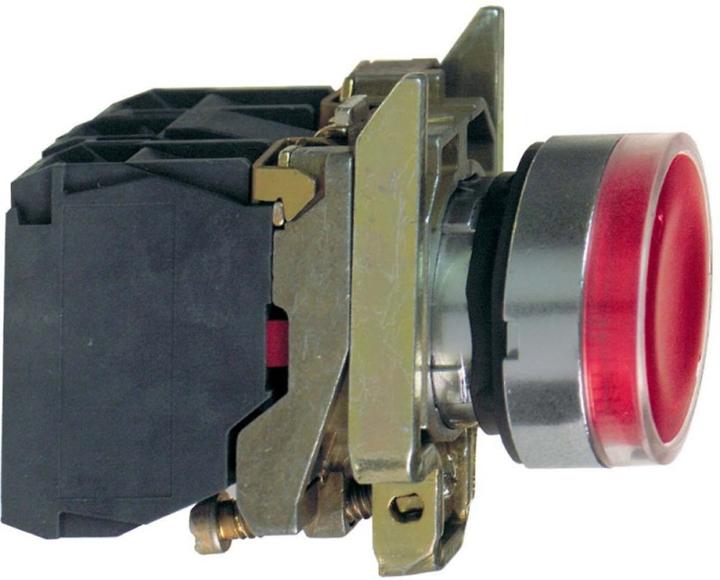

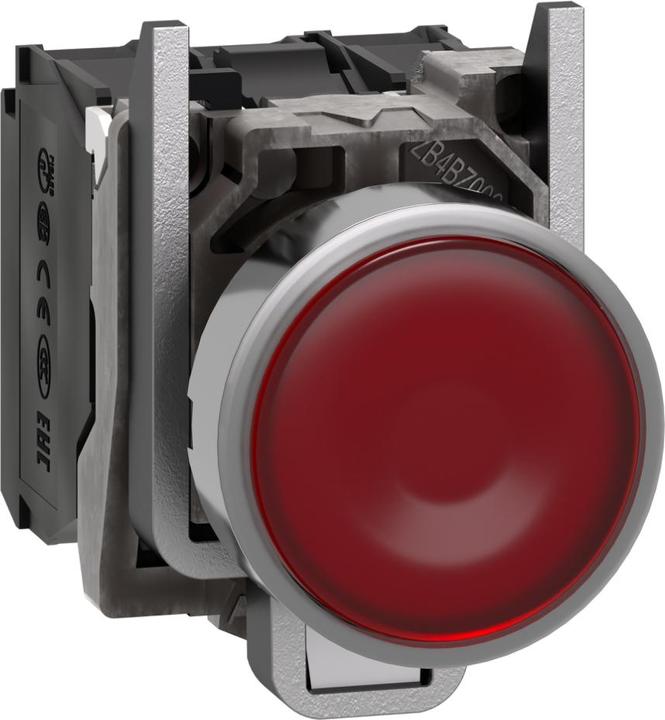

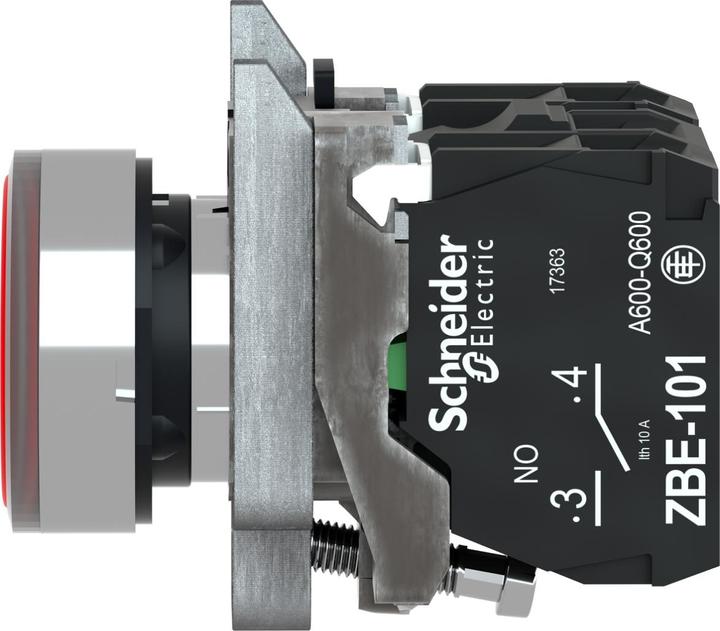

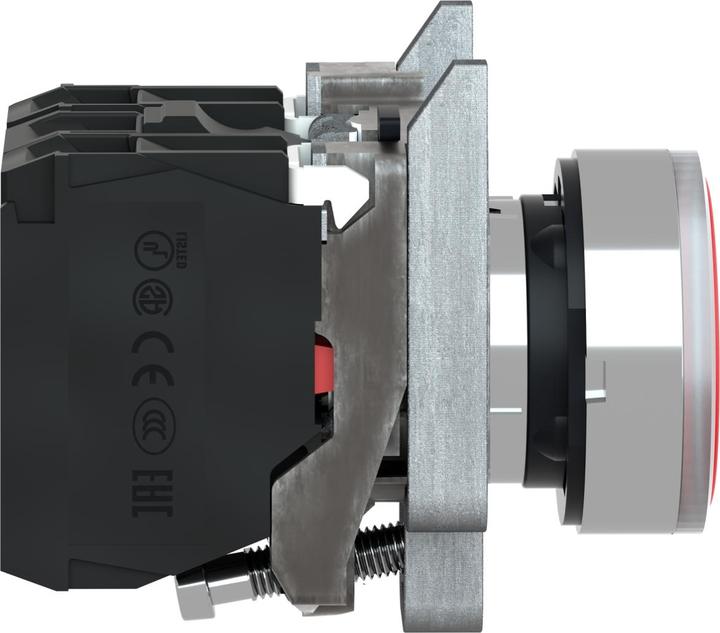

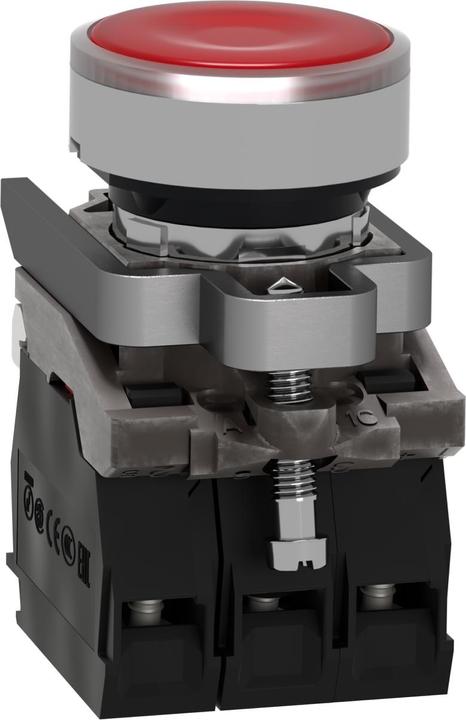

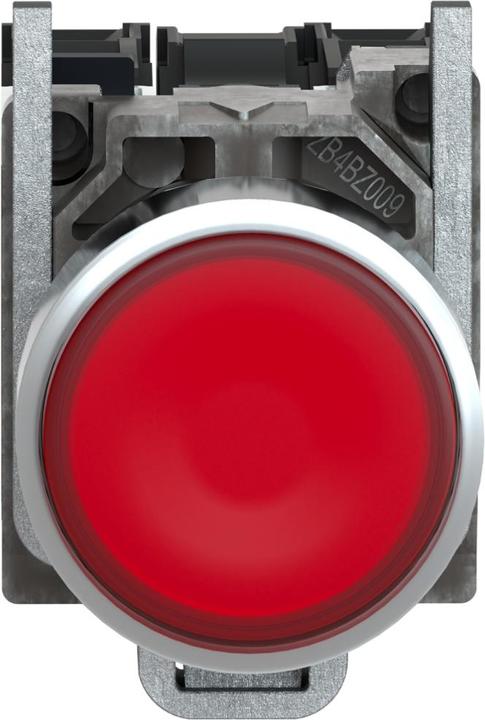

Schneider Electric Illuminated Push Button XB4BW34G5

Manufacturer: Schneider Electric
Description: Illuminated Push Button
Type: XB4BW34G5
Number of Command Points: 1
Button Shape: Flat
Button Color: Red
Lens Shape: Round
Hole Diameter: 22.5 mm
Suitable for Lighting: Yes
Latch Function: No
Momentary: Yes
Lamp Supply Voltage: 120 V

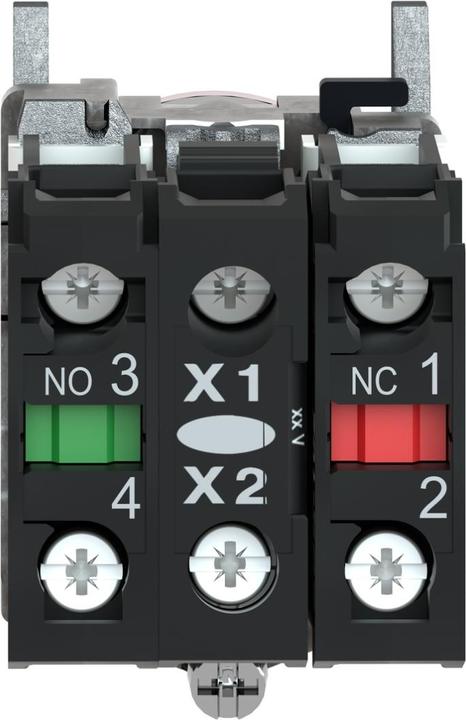

Number of Contacts as Normally Closed: 1
Number of Contacts as Normally Open: 1

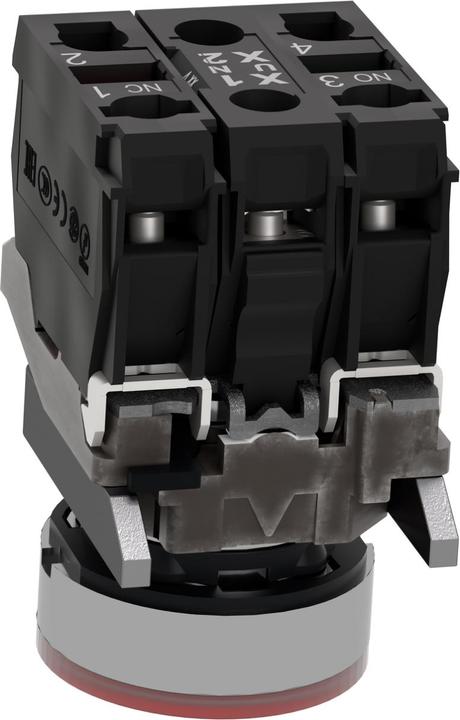

Electrical Connection Type: Screw Terminal
With Front Ring: Yes
Material of Front Ring: Metal
Front Ring Color: Chrome
Protection Class (IP): IP66
Protection Class (NEMA): 4X

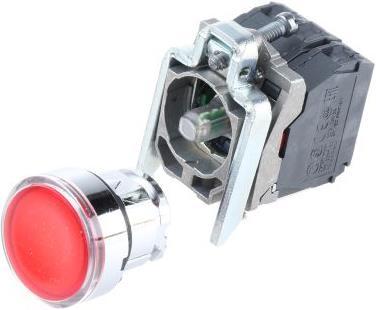

The Harmony XB4 series made of metal offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop buttons. Additionally, due to the modular design of the devices, all components can also be purchased as individual elements, and they can optionally be adapted for 30mm installation size. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This illuminated push button in red features a universal LED and requires a supply voltage of 110-240V AC. The button has 1 normally closed and 1 normally open contact. Installed in a 22mm hole, the device is connected via screw terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium label, you can obtain detailed information on material contents, environmental impacts, and circular economy, supporting your sustainability goals.
