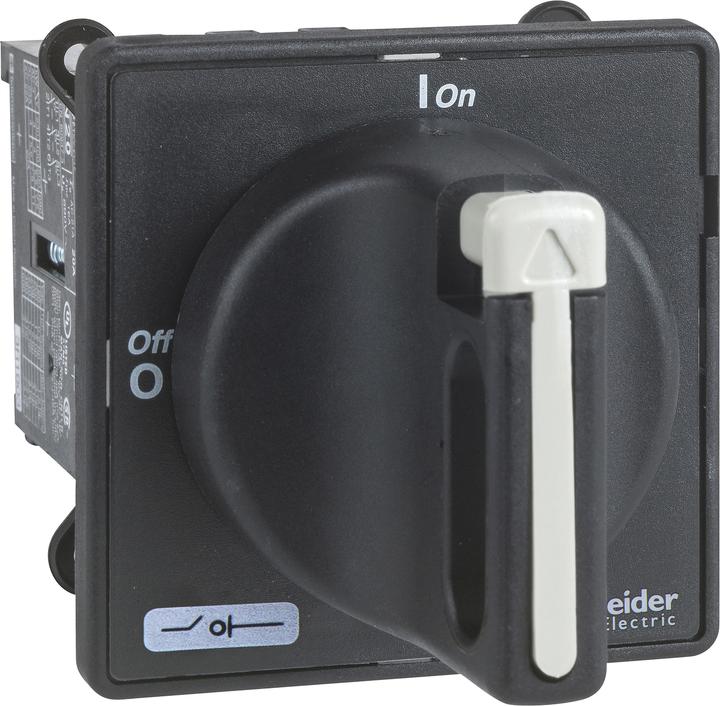

Schneider Electric Load Break Switch VBDN12

Manufacturer: Schneider Electric
Designation: Load Break Switch 3p, 690 V 12A
Type: VBDN12
Design as main switch: yes
Design as maintenance/repair switch: yes
Design as safety switch: no
Design as emergency stop device: no
Design as reversing switch: no
Number of switches: 1
Max. rated operational voltage Ue for AC: 690 V
Rated operational voltage: 0..690 V
Rated continuous current Iu: 12 A
Rated continuous current for AC-23, 400 V: 8.1 A
Rated continuous current for AC-21, 400 V: 12 A
Rated operational power for AC-3, 400 V: 3 kW
Rated short-time current withstand Icw: 0.14 kA
Rated operational power for AC-23, 400 V: 4 kW
Conditional rated short-circuit current Iq: 6 kA
Number of poles: 3
Motor drive optional: no
Integrated motor drive: no
Voltage release optional: no
Device design: Built-in device with fixed installation technology
Suitable for floor mounting: no
Suitable for front mounting 4-hole: no
Suitable for central front mounting: yes
Suitable for distribution board installation: no
Suitable for intermediate installation: no
Color of the operating element: black
Design of the operating element: short rotary handle
Lockable: yes
Connection type main circuit: screw connection
Protection class (IP), front side: IP65

Schneider Electric Load Break Switch VBDN12: additional details
VBDN12 is a 3-pole TeSys Vario load break switch for the main circuit in motor applications of 4 kW at 400 V AC-23. It consists of a VZ12 Vario switch body and a lockable black/gray actuator that can be mounted to the door with a single fastening. It ensures IP65 protection for installation. It is certified according to several standards (IEC, UL, CSA, CCC, EAC, Marine) and is Green Premium compliant (RoHS/REACH).
