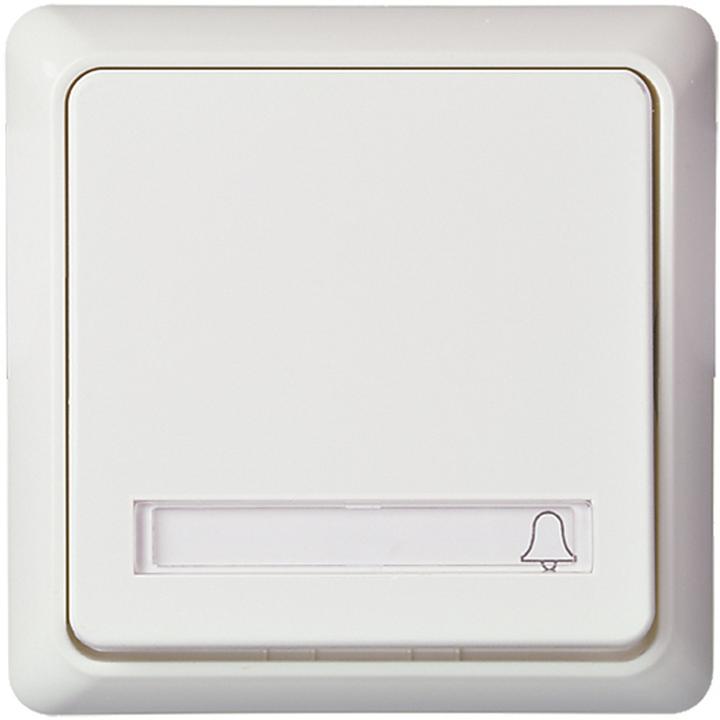

Elso flush-mounted push-button 252114
Manufacturer: Elso
Designation: Flush-mounted push-button pure white
Type: 252114
Composition: Basic element with complete housing
Version: Single push-button
Operating mode: Push-button
Number of actuating rockers: 1
Number of poles: 1
Rated voltage: 250 V
Rated current: 10 A
With illumination: Yes
With signalling lamp: Yes
Feedback contact: No
Mounting type: Flush-mounted
Mounting type: Claw/screw fixing
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Glossy
Colour: Pure white
RAL number (similar): 9010
Transparent: No
Text field/labelling area: No
Imprint: "Bell" symbol
Suitable for degree of protection (IP): IP20
Device width: 80 mm
Device height: 80 mm
Device depth: 24 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Elso flush-mounted push-button 252114: more details
Push-button with text field. Colour: pure white, inscription strips with bell, light, key and neutral symbols enclosed, illuminated rocker, for flush-mounted installation. Protection class IP 20, push-button 10 A, 250 V AC, frame and rocker made of thermoplastic, can also be used in device carriers with an installation depth of at least 32 mm. Screw terminals: Clamping range for copper conductors 1.5 mm and 2.5 mm, for secure connection of aluminium conductors 2.5 mm without pre-treatment.
