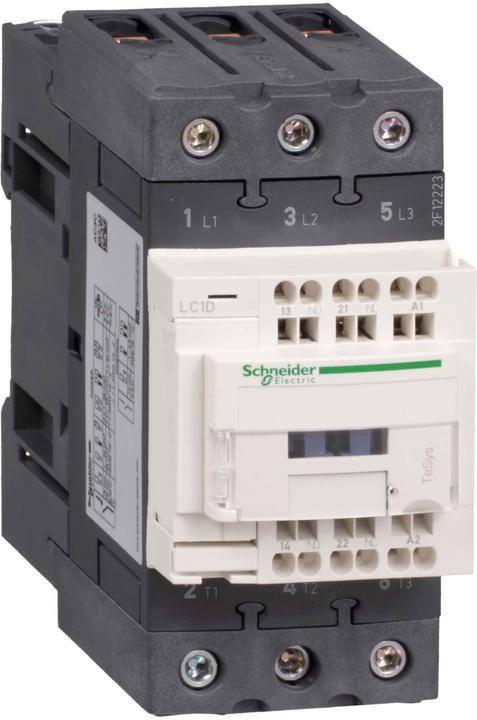

Schneider Electric power contactor LC1D40A3BD

Manufacturer: Schneider Electric
Designation: Power contactor 3-pole, 1S, 1Ö
Type: LC1D40A3BD
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
Rated operational current Ie at AC-1, 400 V: 60 A
Rated operational current Ie at AC-3, 400 V: 40 A
Rated operational power at AC-3, 400 V: 18.5 kW
Rated operational current Ie at AC-4, 400 V: 20 A
Rated operational power at AC-4, 400 V: 9 kW
Suitable for series installation: No
Number of auxiliary contacts as make contacts: 1
Number of auxiliary contacts as break contacts: 1
Connection type main circuit: Spring-cage connection
Number of NO contacts as main contacts: 3

Further details:
Contactor TeSys LC1D. 3 pole, 3 NO contacts. Additional auxiliary contacts: 1 NO + 1 NC, rated operational power at AC-3, 400 V: 18.5 kW, rated operational current Ie at AC-3, 400 V: 40 A, coil: 24 V DC.
Dimensions (WxHxD): 55 x 122 x 120 mm
Weight: 0.925 kg
Category: AC-1, AC-4, AC-3
Integrated bidirectional amplitude limiting diode. Quick and easy set-up. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically coupled contacts and mirror contacts. UL, CSA, CCC, GOST certifications.
Product standards: EAN: 3389119408608.
