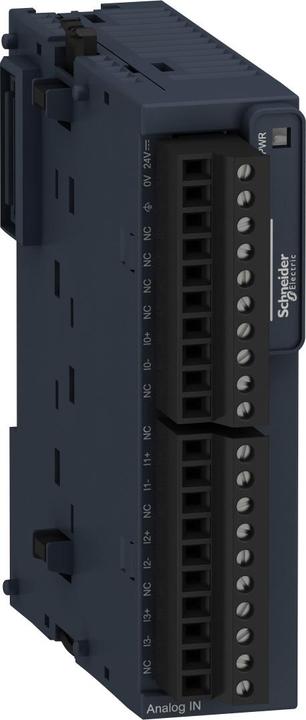

The Schneider TM3TI4D is an analog input module specifically designed for expanding Modicon PLC controls such as M221, M241, M251, and M262. This module offers a flexible solution for integrating analog inputs into existing automation systems. With a total of four analog inputs supporting 16-bit resolution, it allows for the capture of signals from various thermocouples (Type J, K, R, S, B, T, N, E, C). Configuration and project planning are carried out via the EcoStruxure Machine Expert software or a standalone configurator, ensuring user-friendly handling. The module is designed for operation in a temperature range of -10°C to +55°C and can be mounted on a 35mm DIN rail or directly onto a control panel. The removable screw terminal blocks with a pitch of 3.81mm facilitate installation and connection.

• Compatible with Modicon TM3 bus couplers for third-party controls
• Supports a variety of thermocouples for versatile applications
• Easy project planning and configuration with EcoStruxure Machine Expert
• Robust design for a temperature range of -10°C to +55°C
• Certified according to CE, cULus/CSA, EAC, RCM, and cULus Hazardous Location.
