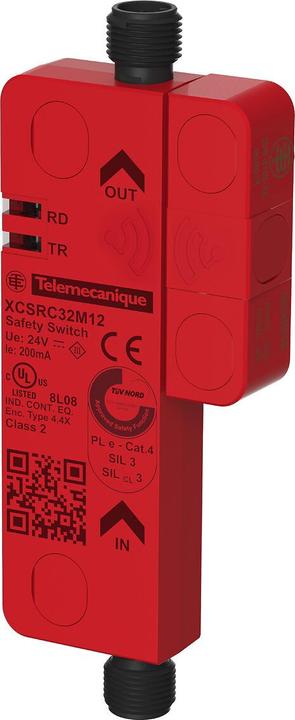

Schneider Electric RFID Safety Switch XCSRC32M12

Manufacturer: Schneider Electric
Designation: RFID Safety Switch DAISYCHAIN
Type: XCSRC32M12
Number of safe contact outputs: 5
Actuation type: Magnetic
Interface design for safety-related communication: other
Electrical connection design: M12 connector
Output design: PNP
Sensor width: 15 mm
Sensor height: 119.6 mm
Sensor length: 30 mm
Explosion protection category for gas: none
Explosion protection category for dust: none
Housing design: Rectangular
Housing material: other
Housing coating: uncoated
Safe switching distance OFF: 35 mm
Safe switching distance ON: 10 mm
SIL according to IEC 61508: 3
Performance Level according to EN ISO 13849-1: Level e
Max. output current at safe output: 60 mA
Ambient temperature: -25 to 70 °C
Mechanical installation condition for sensor: other
Min. output current: 60 mA
Rated supply voltage at DC: 24 V
Voltage type: DC
Cross/short-circuit detection possible: yes
Switching distance: 35 mm
With monitoring function for downstream devices: no
Suitable for safety functions: yes
With status indication: no
Protection class (IP): IP67

Schneider Electric RFID Safety Switch XCSRC32M12: additional details
RFID safety switch. Series configuration, coding for up to 2 new transponders. Contactless RFID safety switch for connection to a safety module (single configuration) connected in series (series configuration) or with integrated safety evaluation (standalone configuration). The switches can be supplied with uniquely coded transponders or with the option to learn up to 2 new transponders. Power supply 24 V DC. Connection via M12 connector.
