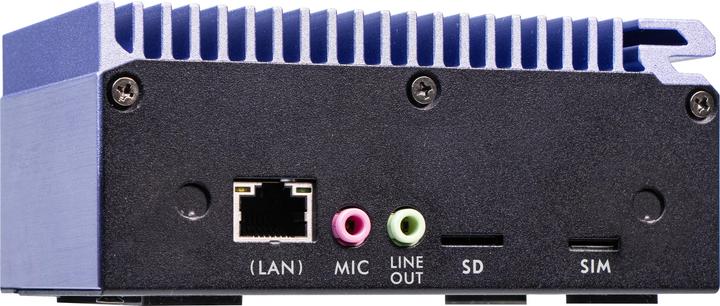

Robust 0.5L Industrial PC with three graphics ports and 4G option

The Shuttle Edge PC SPCEL12 is a fanless industrial PC barebone housed in a sturdy metal case that can be mounted using a VESA bracket. It is versatile and designed for reliable, maintenance-free continuous operation at temperatures of up to 40 °C. Internally, it features an Intel Celeron "Elkhart Lake" processor with slots for RAM modules, M.2 SSD cards, and optional WLAN or 4G cards. The compact case offers an impressive variety of connections, including three graphics ports, dual network, audio, and slots for micro-SD and nano-SIM. The Shuttle SPCEL12 is aimed at professional applications such as digital signage (media player), edge computing (IoT gateway), automation, control, data acquisition, and video surveillance.

Fanless and quiet

• Passive cooling through heat convection
• Large aluminum heat sink without a fan, making it virtually silent and ideal for noise-sensitive environments
• Reduced dust contamination - thus practically maintenance-free

24/7 continuous operation

• This device is officially approved for 24-hour continuous operation (24/7).

Case

• Sturdy aluminum metal case
• Color: Purple
• Dimensions: 120 x 75 x 51 mm (LxWxH) = 460 ml
• Height: approx. 53 mm with rubber feet
• Weight: 730/1250 g net (without/with accessories) and 1.5 kg gross

Operating positions:
1) Via VESA bracket, e.g., behind a suitable monitor (supports the 100x100 mm VESA standard)
2) Standing on rubber feet like a desktop PC

Operating system

• This system is delivered without an operating system.
• It is compatible with Windows 10/11 (64-bit) and Linux (64-bit)

Processor

• Intel® Celeron® Processor J6412, Quad Core
• Clock frequency: 2.0 GHz, max. Turbo frequency: 2.6 GHz
• Codename: "Elkhart Lake"
• 10 nm manufacturing process, FCBGA1493 package (soldered)
• CPU cores/threads: 4 / 4
• L2 cache: 1.5 MB
• Power consumption (TDP): 10...
