Robust industrial PC with VESA/DIN rail mounting

The Shuttle Edge PC SPCEL03 is a fanless IPC barebone housed in a sturdy 450 ml metal case. It can be mounted using DIN rail or VESA brackets. It is versatile and designed for reliable maintenance-free continuous operation at temperatures up to 60 °C. Internally, it features an Intel Atom "Elkhart Lake" processor with slots for RAM module, M.2 SSD card, and Wi-Fi card. The compact case offers an impressive variety of connections such as dual network, COM port, and digital I/O. The Shuttle SPCEL03 is aimed at professional applications such as edge computing (IoT gateway), automation, control, digital signage, data acquisition, and video surveillance.

• Intel Atom x6413E processor
• Suitable for ambient temperatures between -20 °C and 60 °C
• 75 × 120 × 51 mm (DWH)
• Up to 32 GB DDR5 memory (SO-DIMM)
• Two M.2 slots (1× M.2-2280, 1× M.2-2230)
• 2× 2.5 Gbit Ethernet, Wi-Fi optional

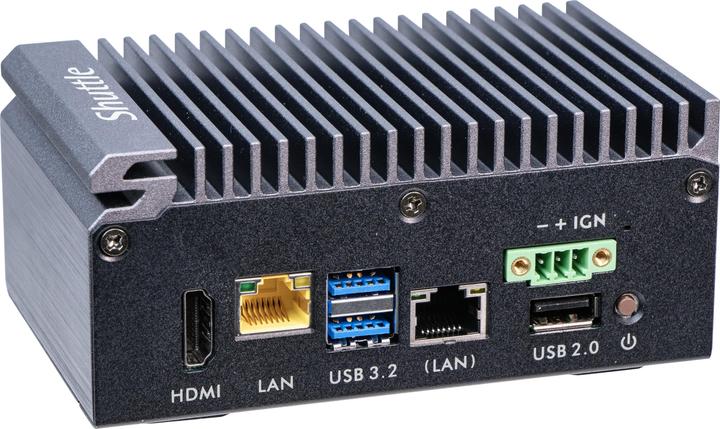

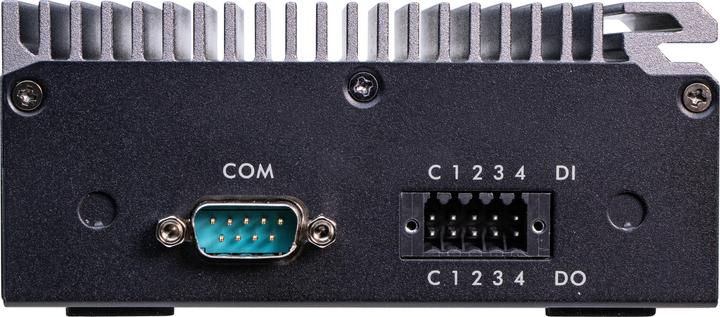

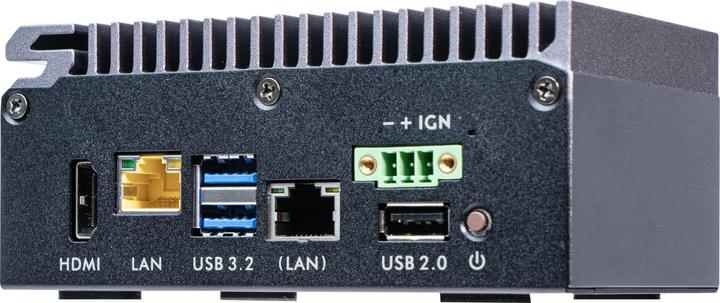

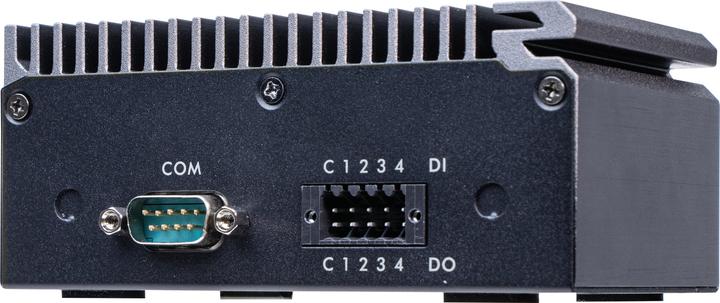

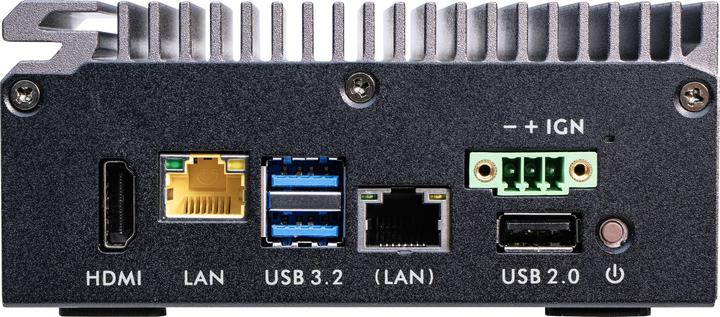

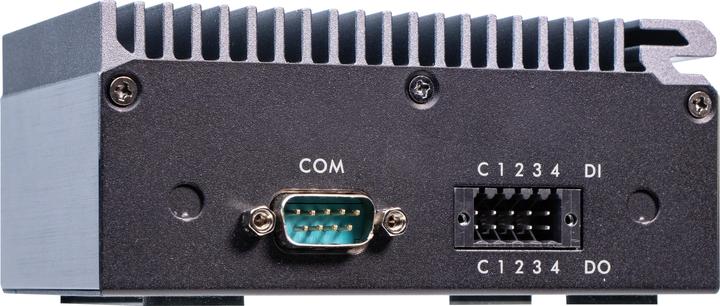

• 2× USB 3.2 (10 Gbit), 1× COM, DIO
• 1× M.2 SSD
• Suitable for 12 to 24 V DC
• DIN rail/wall/VESA mounting options

Fanless and quiet

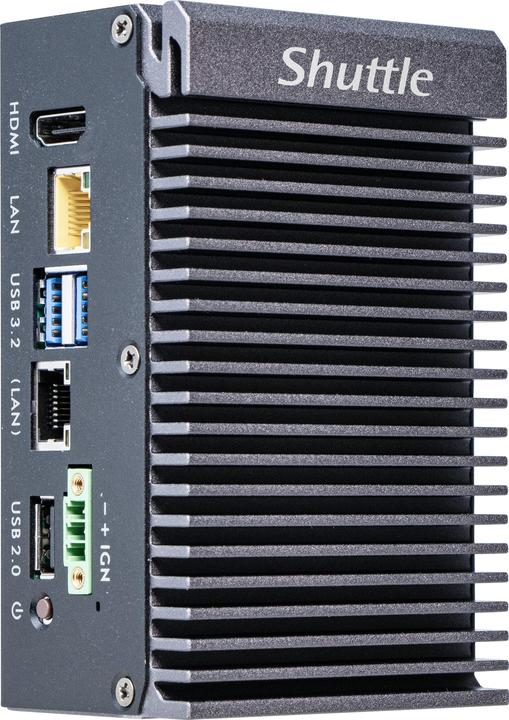

Passive cooling through thermal convection. Large aluminum heat sink without a fan, making it virtually silent and ideal for noise-sensitive environments. Less dust contamination - thus practically maintenance-free.

24/7 continuous operation
This device is officially approved for 24/7 continuous operation.

Housing
Robust aluminum metal case. Color: Dark gray. Dimensions: 120 x 75 x 51 mm (BLH) = 460 ml (Height: approx. 53 mm with rubber feet). Weight: 720/970 g net (without/with accessories) and 1.2 kg gross.

Operating positions:
1) Mounted on a DIN rail, e.g., in a control cabinet.
2) With VESA mount, e.g., behind a suitable monitor (supports the 50x50 and 100x100 mm VESA standard).
3) Standing on rubber feet like a desktop PC.

Operating system
This system is delivered without an operating system.
