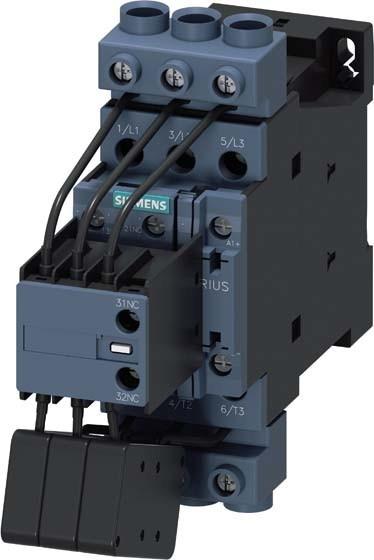

Siemens Digital Industry Contactor 3RT2628-1NF35

Manufacturer: Siemens Digital Industry
Designation: Contactor 1S+2Ö
Type: 3RT2628-1NF35
Rated control supply voltage Us at AC 50 Hz: 95..130 V
Rated control supply voltage Us at AC 60 Hz: 95..130 V
Rated control supply voltage Us at DC: 95..130 V
Type of voltage for operation: AC/DC
Number of auxiliary contacts as normally closed: 1
Number of auxiliary contacts as normally open: 2
Connection type for main circuit: Screw connection
Number of normally closed contacts as main contacts: 3
Rated reactive power at 400 V, 50 Hz: 33 kvar

Siemens Digital Industry Contactor 3RT2628-1NF35: additional details
Capacitor contactor, AC-6b 33 kVAr, / 400 V 1 S + 2 Ö, AC 50-60 Hz DC 95-130 V 3-pole, size S0 screw connection.

The SIRIUS 3RT26 capacitor contactor is designed for switching capacitive loads, such as capacitor banks or inverters. The 3RT26 capacitor contactors are part of the SIRIUS modular system with optimally coordinated products. They offer conventional drives for AC and DC operation, as well as electronic drives with AC/DC operation. They impress with high performance while maintaining a compact design and high contact reliability. They can be combined in various ways with other components in the load branch. Many of the device combinations are factory-tested. Integrated auxiliary switches reduce the complexity of your setup. The front connections allow for easy wiring. The 3RT26 capacitor contactors are climate-resistant and globally approved (e.g., IEC and UL/CSA). They are available in various sizes and a wide power range for AC and DC operation with screw connection technology. The comprehensive accessories are uniform across all sizes. The 3RT26 capacitor contactors replace the 3RT16 capacitor contactors. Simple, efficient, always up to date - the SIRIUS modular system.
EAN: 4011209948136.
