Siemens digital industrial flexible plug-in cable 6XV1878-5GE50

Manufacturer: Siemens Digital Industries
Designation: Flexible plug-in cable 4x2, 0.5m
Type: 6XV1878-5GE50
Conductor surface: Bare
Number of cores: 8
Stranding element: Pairs
Core insulation material: Other
Core identification: Colour
Shield over stranding element: Without stranding: Bundle
Shield over stranding: Foil + braiding
Jacket material: Polyurethane (PUR)
Specification jacket material: Other
Jacket colour: Green
Fire performance class according to EN 13501-6: None
Flame retardant: No
Smoke resistant according to EN 61034-2: Yes
Outer diameter approx.: 6.5 mm
Minimum permissible bending radius, flexible use with forced guidance: 65 mm
Minimum permissible bending radius, flexible use/free movement: 65 mm
Minimum permissible bending radius, stationary use/fixed installation: 65 mm
Permissible cable external temperature during installation/handling: 80 °C
Permissible cable external temperature after installation without exhaustion: 80 °C
Permissible cable outer temperature after assembly without shock: -30 to 80 °C
Category: Other
NVP value: 68%

Siemens digital industrial flexible plug-in cable 6XV1878-5GE50: further details
IE TP Cord M12-90/M12-90 preconfigured

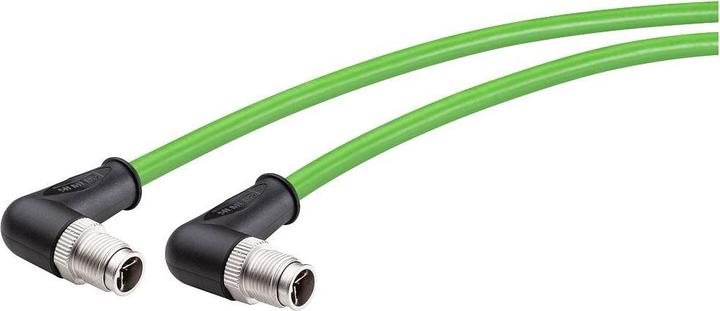

IE Flexible Cable, with 2 M12 connectors (X-coded), 90-degree cable outlet, length 0.5m.
SIMATIC NET IE TP Cord M12-90/M12-90
Easy connection of terminal devices with M12 connection in protection class IP65/IP67 to the interference-resistant Industrial Ethernet FastConnect cabling system (10/100/1000/10000 Mbit/s).
Silicone-free, thus suitable for use in the automotive industry (e.g., painting lines).
Fast and error-free commissioning thanks to preassembled, factory-tested patch cables.
Easy installation due to small cable diameter.
EAN: 4019169857017.
