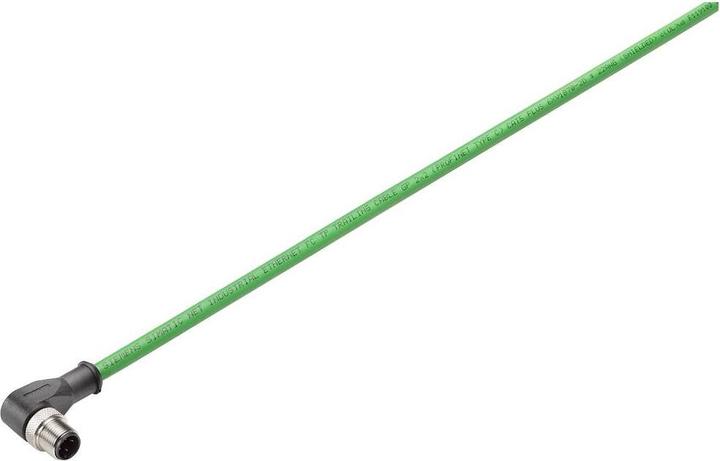

Siemens Dig.Industr. IE Connecting Cable 6XV1870-8GE50

Manufacturer: Siemens Dig.Industr.
Description: IE Connecting Cable M12-90/M12-90
Length: 0.5 m
Type: 6XV1870-8GE50
Conductor Surface: bare
Conductor Diameter: 0.75 mm
Number of Conductors: 4
Number of Twisted Elements: 2
Twisted Element: Four
Insulation Material of Conductors: other
Conductor Marking: color
Shield over Twisted Element: none
Twisting: bundle
Shield over Twisting: foil + braid
Suitable for underground installation: no
Sheath Material: Polyvinyl Chloride (PVC)
Specification of Sheath Material: other
Sheath Color: green
Fire Behavior Class according to EN 13501-6: none
Flame Retardant: no
Low Smoke according to EN 61034-2: no
Outer Diameter approx.: 6.5 mm
Min. allowable bending radius, flexible use with forced guidance: 49 mm
Min. allowable bending radius, flexible use/free movement: 49 mm
Min. allowable bending radius, stationary use/fixed installation: 49 mm
Permissible cable outer temperature during installation/handling: -10 to 60 °C
Permissible cable outer temperature after installation without shock: -25 to 75 °C
Category: 5E
NVP Value: 66 %

Siemens Dig.Industr. IE Connecting Cable 6XV1870-8GE50: further details
IE Connecting Cable M12-90/M12-90, pre-assembled IE FC trailing cable GP, with 2 M12 connectors (D-coded) length 0.5 m.
SIMATIC NET cables IE Connecting Cable M12-90/M12-90 for connecting industrial Ethernet participants in protection classes IP 65/67, with transmission rates of 10/100 Mbit/s. Suitable for use in drag chains, for example, in permanently moving machine parts. Silicone-free, making it suitable for use in the automotive industry (e.g., painting systems). Time-saving and error-free connection of end devices through pre-assembled AWG22 connection cables. Interference-resistant network due to double-shielded cables and a continuous grounding concept. Reliable shield contact and strain relief integrated. Exceeds Category 5 (Cat5e) of the international cabling standards ISO/IEC 11801 and EN 50173.
