Siemens Dig.Industr. S7-1500 Front Connector 6ES7922-5BJ00-0HB0

Manufacturer: Siemens Dig.Industr.
Description: S7-1500 front connector halogen-free
Type: 6ES7922-5BJ00-0HB0
Function: PLC - other devices
Length: 8 m
Suitable for PLC input card: yes
Suitable for PLC output card: yes
Suitable for digital signals: yes
Suitable for analog signals: no
Electrical connection type, field side: other
Electrical connection type, housing side: screw connection
Number of poles: 40

Further details:

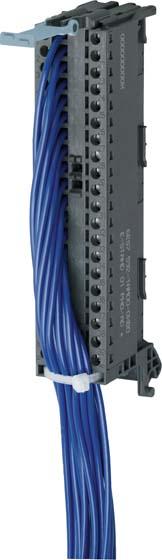

Front connector for SIMATIC S7-1500, 40-pole (6ES7592-1AM00-0XB0) with 20 individual wires 0.5 mm² (1-20), wire type H05Z-K (halogen-free), screw version, length 8.0 m. The pre-assembled 40-pole front connector with 20 individual wires of halogen-free type, conductor cross-section 0.5 mm², with a length of 8.0 m in screw version is intended for connection to a digital I/O module of the SIMATIC S7-1500. This is plugged onto the module to be wired instead of the front connector. This allows the signals of the digital I/O module to be easily connected to the elements to be wired via the numbered individual wires. This front connector with individual wires is part of the flexible connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to a 50% reduction in wiring effort, potential sources of error in wiring can be significantly reduced.
EAN: 4025515154150.
