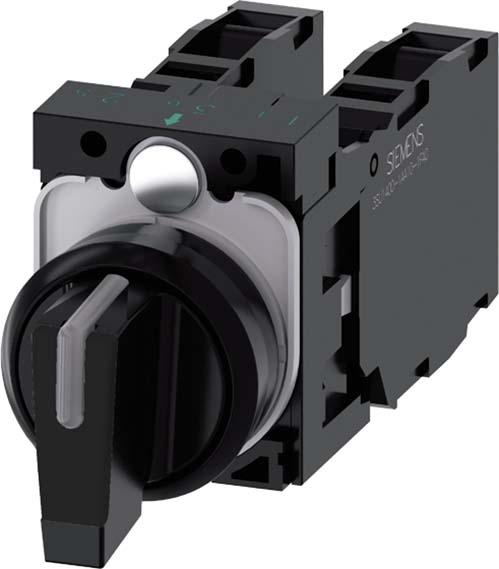

Siemens Toggle switch front ring plastic illuminable Toggle black 2 x 45° 1 pc.
Product details
Knob switch, illuminated, 22 mm, round, plastic, black, short, 3 switching positions I-O-II, latching, with holder, screw connection. The SIRIUS ACT knob switch is used for switching and controlling electrical consumers. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of control and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic. The innovative snap-on concept simplifies installation to the point where only one hand and no special tools are required. For mounting holes, non-threaded holes are sufficient, as a 100% anti-rotation protection is already integrated. Thanks to the consistently high protection class, the robust devices are suitable for industrial use and outdoor applications. Even cleaning with high-pressure jets is possible. Neither dust, oils, nor aggressive alkalis can disrupt reliable operation. In addition to standard wiring, most devices can also be connected to the control system via PROFINET, AS-Interface, or IO-Link. This reduces your wiring effort, minimizes sources of error, and provides greater flexibility. The graphical online configurator conveniently assists in selecting and ordering individual devices, housings, and labels. Extensive documentation (e.g., manual, 3D data, connection diagram) is available. Available versions: multiple colors, 2-4 switching positions, short/long knob or rotary knob, illuminated/non-illuminated (illumination can also be retrofitted), latching/tactile operation. Note: Complete device, delivery includes holder and modules. SIRIUS ACT - Performance in Action for commanding and signaling. Easily mounted, simply strong, simply perfect.
Colour | Black |
Switch + button type | Rotary switches |
Number of actuation levels | 3 x |
Width | 22 mm |
Diameter | 22 mm |
Item number | 36328342 |
Manufacturer | Siemens |
Category | Buttons + Switches |
Manufacturer no. | 3SU11002BL101NA0 |
Release date | 15.6.2023 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Material | Plastic |
Switch + button type | Rotary switches |
Operating mode | Rocker arm |
Number of actuation levels | 3 x |
LED colour | without LED |
Nominal voltage | 5 V |
Protection type (IP code) | IP67, IP69K |
Switch + push-button Additional function | Lighting |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Smart Home | Compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 10:30h/12h/13:30h, 1S, 22 mm, 3 switching positions I-O-II, around, Black, Gag, illuminable, latching, Plastic, Short, SIRIUS ACT screw connection toggle switch for switching and controlling electrical loads., Toggle switch, with holder |
Length | 32.30 mm |
Width | 22 mm |
Height | 28.80 mm |
Diameter | 22 mm |
