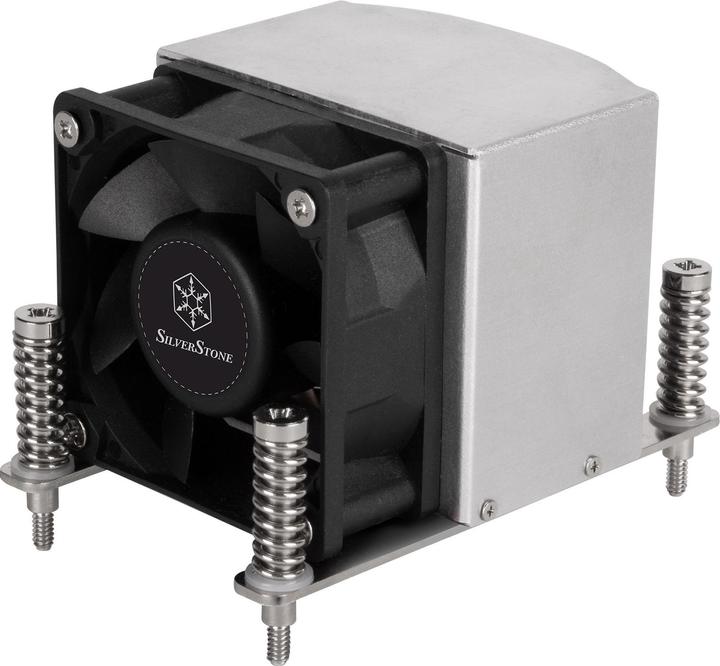

Silverstone ar09-am4 cpu cooler
66 mmMore than 10 pieces in stock at supplier
Product details
Main features
Performance
Type: Air cooling
Fan diameter: 6 cm
Supported processor sockets: Socket AM4, Socket AM5
Number of speeds: 2
Rotational speed (min.): 1200 RPM
Rotational speed (max.): 5000 RPM
Maximum airflow: 27.9 CFM
Airflow: 4.83 m³/h
PWM support: Yes
Fan noise level (min.): 18.02 dB
Fan noise level (max.): 42.5 dB
Fan bearing technology: Double ball bearing
Quantity per pack: 1 piece
Mean time to failure (MTTF) of the fan: 70000 h
Design
Product color: Black
Number of blades: 3
Blade material: Aluminum

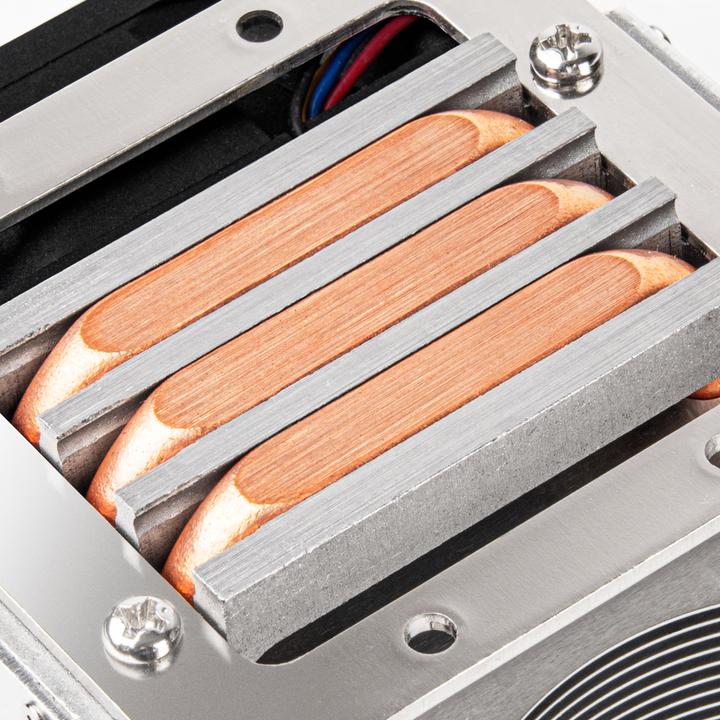

Number of heat pipes: 3
Fan connector: 4-pin
Power
Voltage: 12 V
Rated current: 0.35 A
Weight and dimensions
Width: 71 mm
Depth: 102 mm
Height: 66 mm
Weight: 295 g
Fan dimensions (W x D x H): 60 x 25 x 60 mm.
Socket | AM4, AM5 |
Height (with fan) | 66 mm |
Diameter | 60 mm |
Number of fans | 1 x |
Max. TDP | 95 W |
Airflow | 289.80 m³/h |
power connector | 4-pin PWM |
Item number | 22763347 |
Manufacturer | Silverstone |
Category | CPU coolers |
Manufacturer no. | SST-AR09-AM4 |
Release date | 5.10.2022 |
Colour | Black |
Exact colour description | Black |
CPU cooler design | Single Tower |
Fan type | Passive |
Socket | AM4, AM5 |
Supported fan sizes | 60mm |
Number of heatpipes | 3 |
Diameter heat pipe | 6 mm |
Number of cooling fins | 3 |
Materials radiator core | Aluminium |
Material cooling fins | Aluminium |
Diameter | 60 mm |
Number of fans | 1 x |
Maximum mountable fan | 1 |
Max. Speed | 5000 RPM |
Max. TDP | 95 W |
Airflow | 289.80 m³/h |
Max. noise level | 42.50 dB |
LED colour | without LED |
Fan bearing type | Double ball bearing |
power connector | 4-pin PWM |
Power consumption | 95 W |
Voltage | 12 V |
Scope of delivery | 1x 60 mm fan |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Width (with fan) | 71 mm |
Length (with fan) | 102 mm |
Height (with fan) | 66 mm |
Weight | 295 g |
Length | 12.50 cm |
Width | 11.50 cm |
Height | 11 cm |
Weight | 363 g |
