Silverstone SST-AR09-1700 - Argon CPU Cooler Superior 2U server thermal solution for Intel LGA1700

66 mm
Price in EUR including VAT, free shipping
Delivered between Thu, 22.5. and Sat, 24.5.
More than 10 items in stock at supplier

Product details

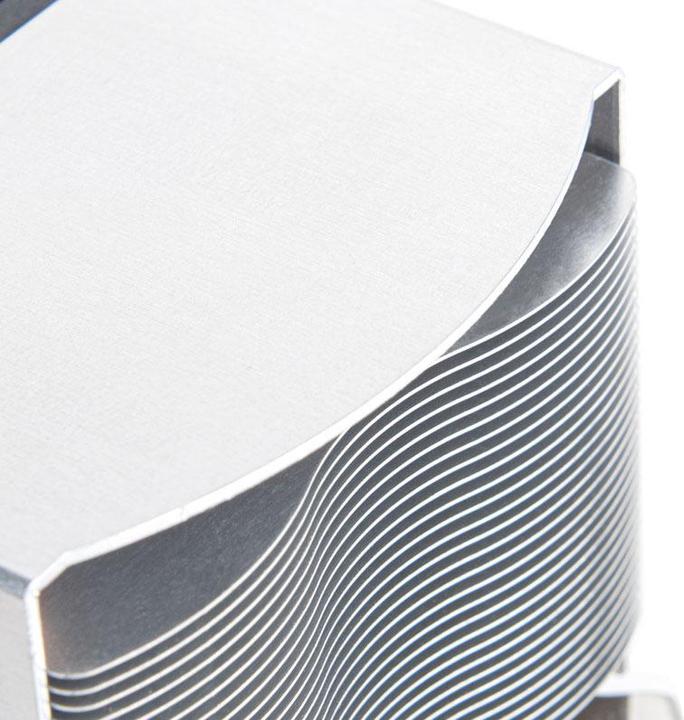

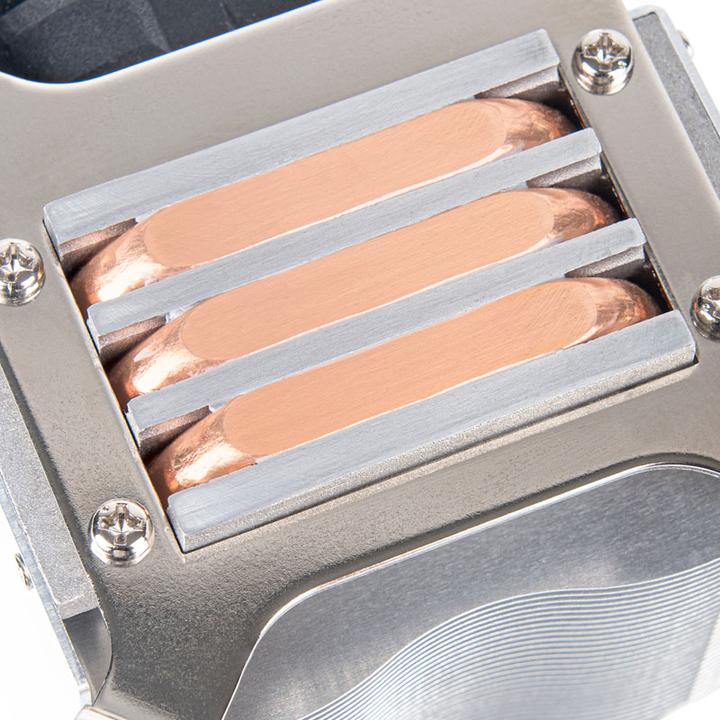

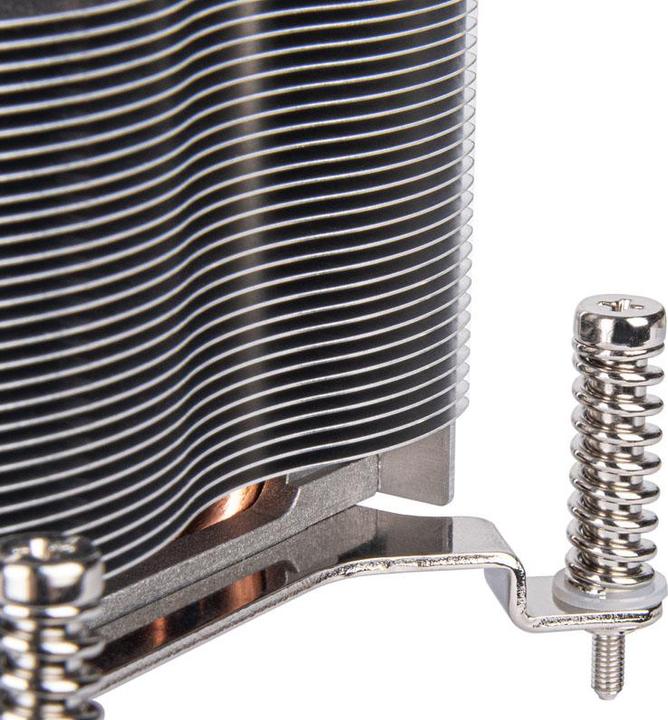

With the Argon series CPU coolers, SilverStone presents a range of coolers that are stripped down to the essentials but still offer state-of-the-art technology. The major advantage is a particularly attractive price point without compromising on cooling performance. All Argon towers consist of an aluminum radiator and several copper heat pipes that, thanks to HDC technology (Heatpipe Direct Contact), rest directly on the processor's heat spreader, effectively dissipating heat into the fin tower.

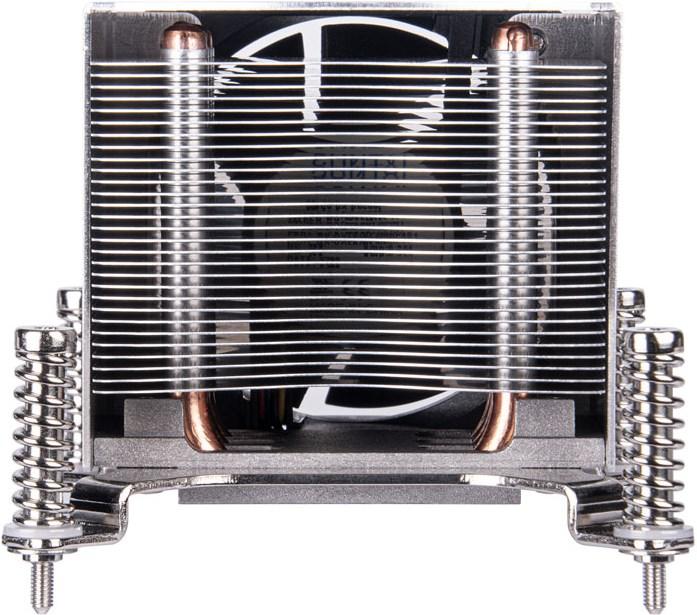

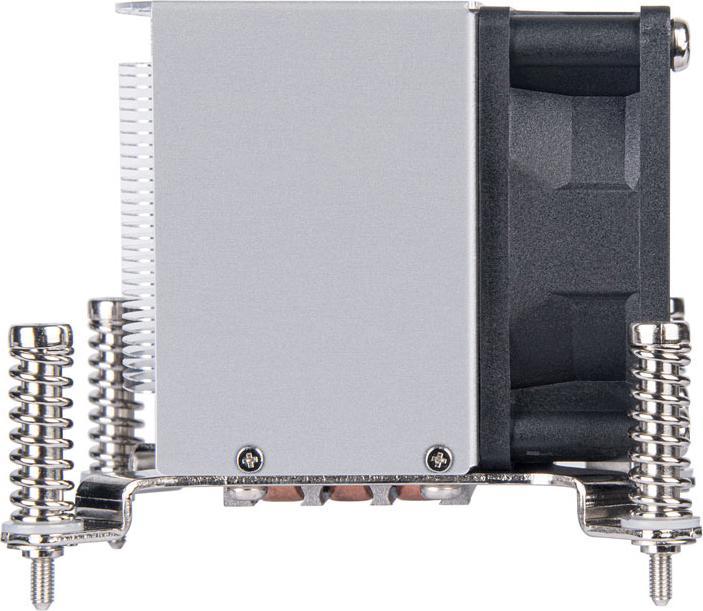

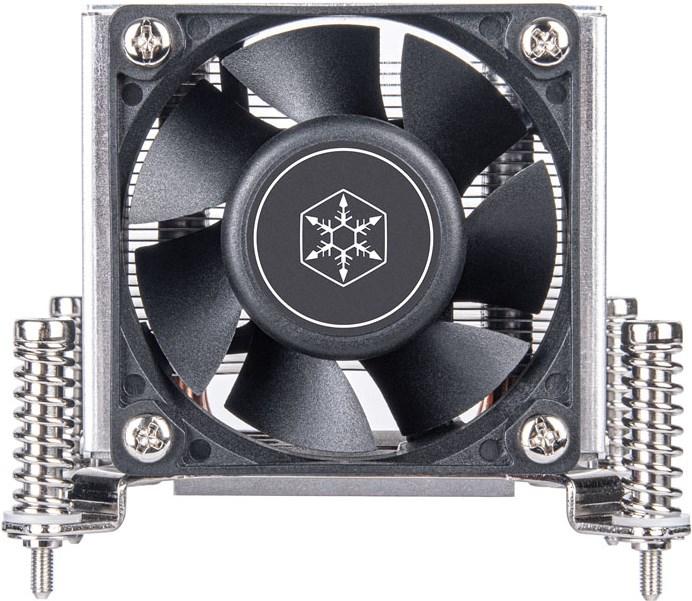

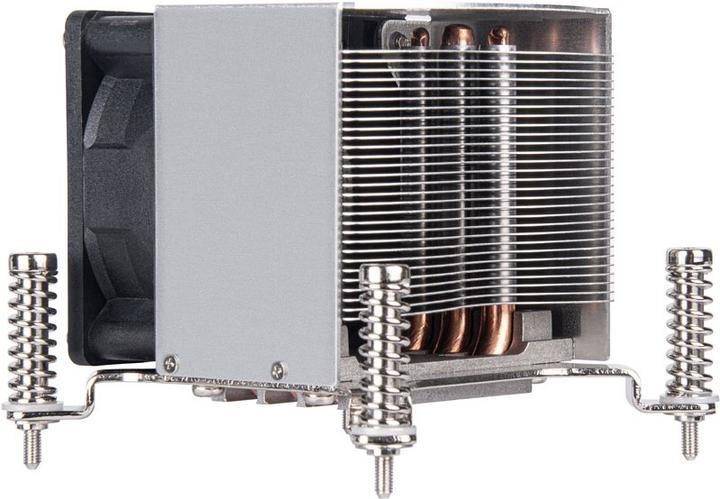

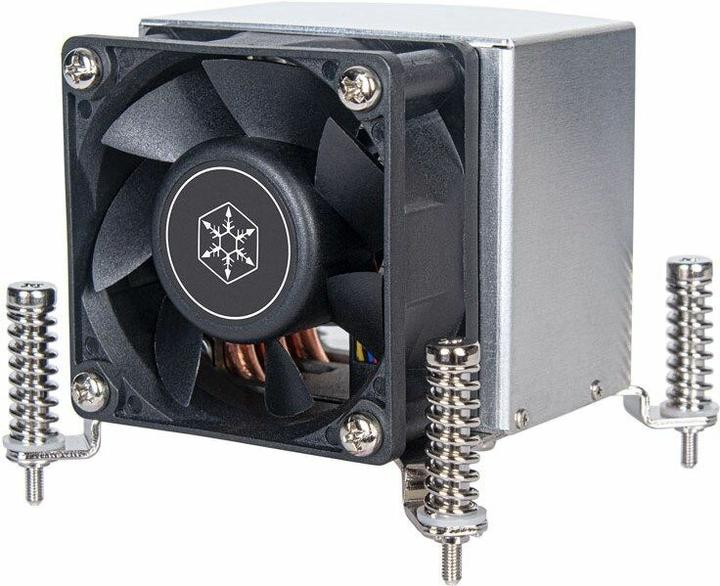

The SilverStone SST-AR09-1700 offered here is an extremely compact tower cooler with three cleverly arranged heat pipes with a diameter of 6 mm, suitable for 2U rack mounts or small form factor cases. The heat pipes, embedded in the base, transport waste heat to the radiator block, which is 8.8 cm wide and 6.6 cm high. A seven-blade 60 mm fan with a sleeve bearing ensures a decent airflow of up to 47.4 m³/h at a full speed of 5,000 RPM, while generating no more than 42.5 dB(A). However, it can also operate very quietly when throttled by pulse width modulation, producing just over 18.02 dB(A) at only 1,200 RPM.

Technical details:

  • Dimensions: 88 x 66 x 88 mm (W x H x D)
  • Weight: 323 g
  • Material: Copper, aluminum (base plate), copper (heat pipes), aluminum (fins)
  • Bearing: Dual ball bearing
  • Heat pipes: 3x Ø 6 mm
  • Fan:
  • Speed: 1200 - 5000 RPM
  • Noise level: 18.02 - 42.5 dB(A)
  • Voltage: 12V
  • Current: 0.35A
  • Airflow: 47.4 m³/h
  • Air pressure: 4.83 mmH2O
  • Connectors: 4-Pin PWM
  • Compatibility: Intel LGA 1700.

Key specifications

Socket
LGA 1700
Height (with fan)
66 mm
Diameter
60 mm
power connector
4-pin PWM
Number of fans
1 x
Item number
25006951

General information

Manufacturer
Silverstone
Category
CPU coolers
Manufacturer no.
SST-AR09-1700
Release date
23.2.2023

Colour

Colour
BlackSilver
Exact colour description
BlackSilver

Cooler properties

CPU cooler design
Single Tower
Fan type
Standard
Socket
LGA 1700
Cooler mounting

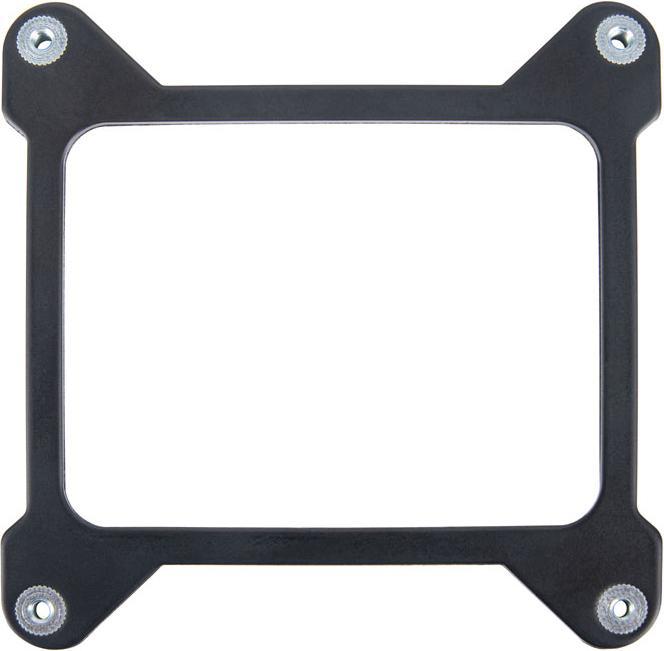

Retention module
Supported fan sizes
60mm

Heat sink properties

Number of heatpipes
3
Diameter heat pipe
6 mm
Materials radiator core
Aluminium

Fan dimensions

Diameter
60 mm
Length
88 mm
Width
80 mm
Height
66 mm
Weight
323 g

Fan properties

Number of fans
1 x
Max. Speed
5 RPM
Airflow
47.40 m³/h
Static pressure
0.49 Pa
Max. noise level
42.50 dB
LED colour
without LED

Connections

power connector
4-pin PWM

Power supply

Voltage
12 V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width (with fan)
88 mm
Length (with fan)
88 mm
Height (with fan)
66 mm
Weight
323 g

Package dimensions

Length
12 cm
Width
12 cm
Height
12 cm
Weight
400 g
