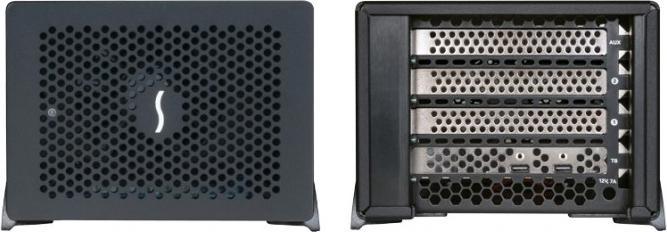

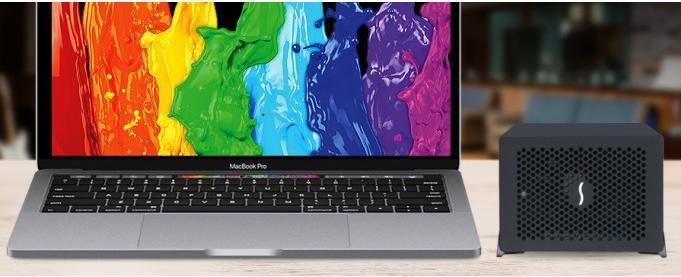

Connect three full-height, half-length PCIe cards to computers equipped with Thunderbolt 3 ports. While thin Mac, Windows, and Linux computers with Thunderbolt 3 ports have sufficient processing power, the onboard processing capabilities often fall short for many users (such as professionals in creative fields). Sonnet’s Echo Express SE IIIe is a compact Thunderbolt 3 to PCIe card expansion system for the desktop, allowing you to connect three professional PCIe cards simultaneously to any computer with Thunderbolt 3 ports.

Mac Compatibility:

• Mac with Thunderbolt 3 ports
• Mac with a Thunderbolt 2 or Thunderbolt port and an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 adapter, along with a Thunderbolt 2 cable (both sold separately)
• macOS 10.12.6 or newer
• Compatible with macOS Catalina

Windows Compatibility:

• PC with Thunderbolt 3 ports
• Windows 10 (64-bit version 1809 or higher, see note)
• Important Note: Windows computers require the latest BIOS and Thunderbolt drivers to support this product. Check for update information with your computer manufacturer.

Linux Compatibility:

• Linux computers with Thunderbolt 3 ports
• Linux kernel 5.0 or newer

External Connections:

• Two Thunderbolt 3 ports
• 12V power connection

Internal Connection:

• 6-pin Mini-Fit Jr (same type as on the old Mac Pro motherboard; provides power for PCIe cards that require additional power)

Expansion Slots:

• One x8 mechanical (x4 electrical) PCIe 3.0
• Two x8 mechanical (x8 electrical) PCIe 3.0

Supported PCIe Cards:

• One half-length (up to 7.75 inches long), double-width, full-height x8 PCIe card, plus one single-sided card or
• Three half-length, single-sided, full-height x8 PCIe cards

Power Supply:

• Universal 120W, 100-240V, 50-60 Hz

Fan:

• Noctua NF-R8 redux-1800 at 17.1 dB(A)

Operating Temperature:

• 0ºC to 35ºC (32ºF to 95ºF).
