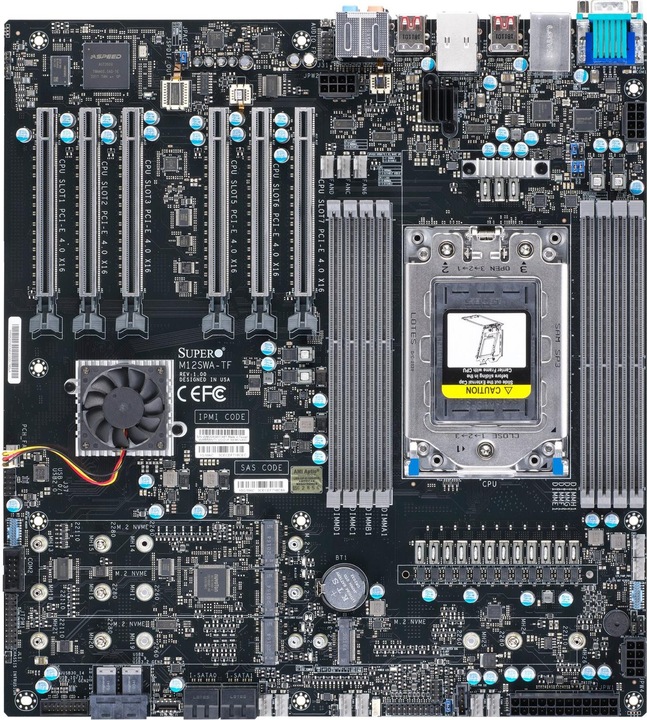

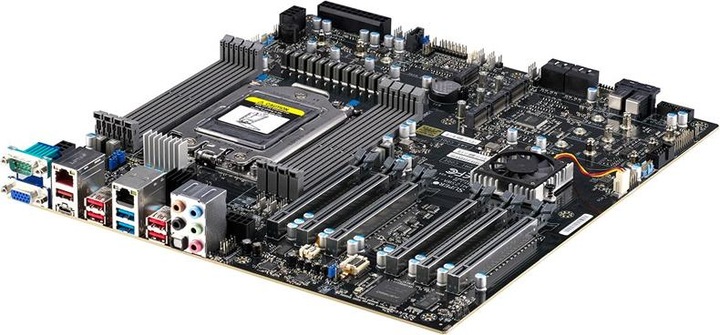

Supermicro M12SWA-TF
sWRX8, AMD WRX80, E-ATXProduct details
The Super Micro Computer M12SWA-TF motherboard is a high-end server motherboard designed to meet the needs of data centers and demanding workloads. It supports 2nd generation AMD EPYC processors with up to 64 cores and 128 threads, as well as eight channels of DDR4 memory with ECC support for maximum data integrity and reliability. The motherboard features an SP3 socket and supports both PCIe 4.0 and PCIe 3.0 slots to provide a wide range of expansion options. It also offers multiple networking and storage options, including 10GbE network connections and NVMe storage.
Mainboard features | Trusted Platform Module |
Processor family | Ryzen Threadripper |
Number of memory modules (RAM) | 8x |
Memory type | DDR4-RAM |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Item number | 15710570 |
Manufacturer | Supermicro |
Category | Motherboards |
Manufacturer no. | MBD-M12SWA-TF-O |
Release date | 24.6.2024 |
External links |
Form factor | E-ATX |
Socket | sWRX8 |
Chipset | AMD WRX80 |
Mainboard features | Trusted Platform Module |
BIOS type | Ami |
Processor family | Ryzen Threadripper |
Memory form factor | DIMM |
Number of pins | 240x |
Number of memory modules (RAM) | 8x |
Max. memory (RAM) | 2000 GB |
Memory chip | DDR4 RAM |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

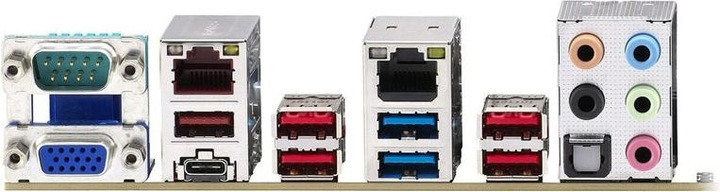

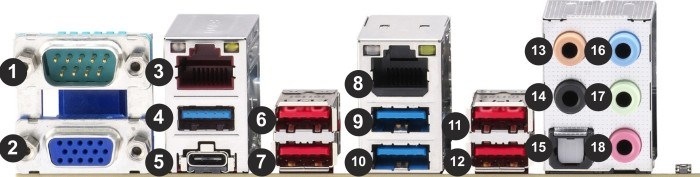

Video connections | D-Sub (1x) |
Network connections | RJ45 (2x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I210-AT |
Max. port speed | 10 Gbit/s |
Chip | Realtek ALC1220, Realtek ALC4050H |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (5x), Optical TOSLINK (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Expansion slot | PCI Express x16 (6x) |
Number of fan connector | 9 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (2x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Scope of delivery | HD Audio (8-channel) |
Length | 330.20 mm |
Width | 304.80 mm |
Height | 330.20 mm |
Weight | 900 g |
Product Safety |
Length | 46.10 cm |
Width | 37.20 cm |
Height | 9.10 cm |
Weight | 2.02 kg |
