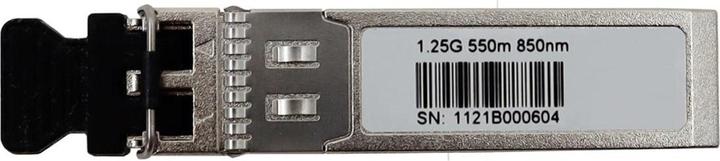

SFP Transceiver Module 1 GbE, 2 Fibers (LC/PC) MM

SFP (Smart Form-Factor Pluggable) transceiver module with 1 GbE duplex LC/PC connection. This allows a network to be extended up to 500 m over multimode (MM) dual fiber. This powerful media converter can be connected to an Ethernet input of a network device to enable access to an Ethernet signal over fiber optic.

The central wavelength used by this device is 850 nm.

Product Data

• Ref. No.: 769150
• EAN13: 8424450279373

Highlights

• Small Form Pluggable (SFP) module
• 2 multimode (MM) fibers
• 1250 Mbit/s maximum rate
• LC/PC duplex connector
• For connections up to 500 m
• 850 nm central wavelength

What is an SFP?
Small Form-Factor Pluggable (SFP) devices are adapters that create an interface to enable access to an Ethernet signal via optical fibers. These devices can be connected to the inputs of various Ethernet and GPON devices, allowing the sending/receiving of information by connecting to single-mode or multi-mode fiber optic cables or Ethernet cables. Benefits of using SFP modules include reduced space requirements, lower power consumption, and increased transmission distances.

When to use which SFP?
Depending on the devices they are connected to, the transmission speed, or the type of cable used, several options for media converters are available. Compatibility between SFPs and various Ethernet and GPON devices is described below.

Physical Data

• Net weight: 18 g
• Gross weight: 24 g
• Width: 13 mm
• Height: 10 mm
• Depth: 57 mm
• Main product weight: 18 g.
