Name: Phantom Spirit 120 EVO - CPU air cooler - Max 27 dBA
Brand: Thermalright
SKU: 42921527
Price: 68.8 EUR
Availability: InStock
Rating: 4.6 (13 reviews)

productDetailPageQuery

Thermalright

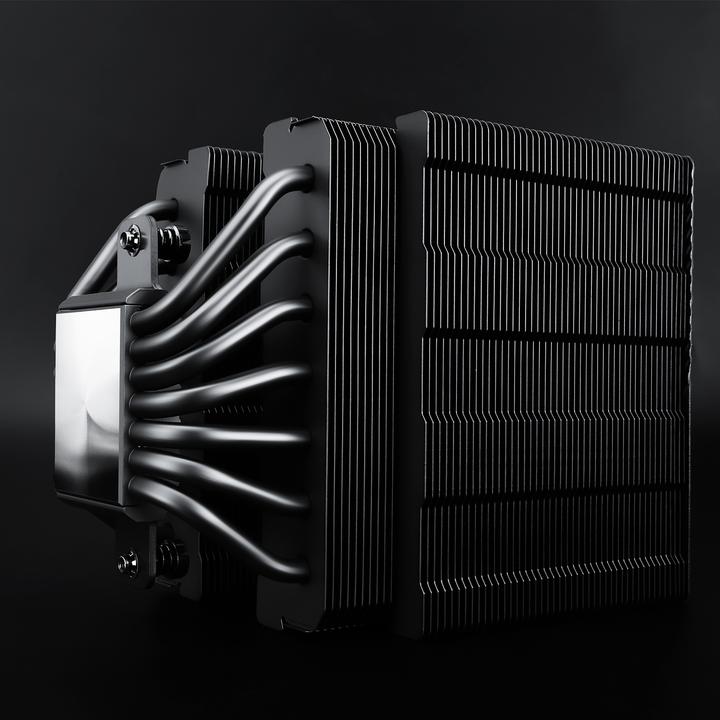

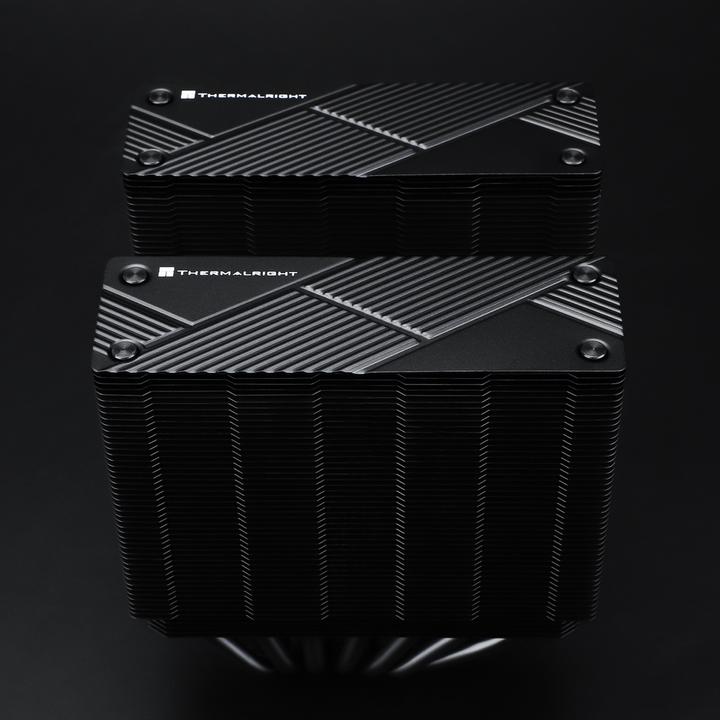

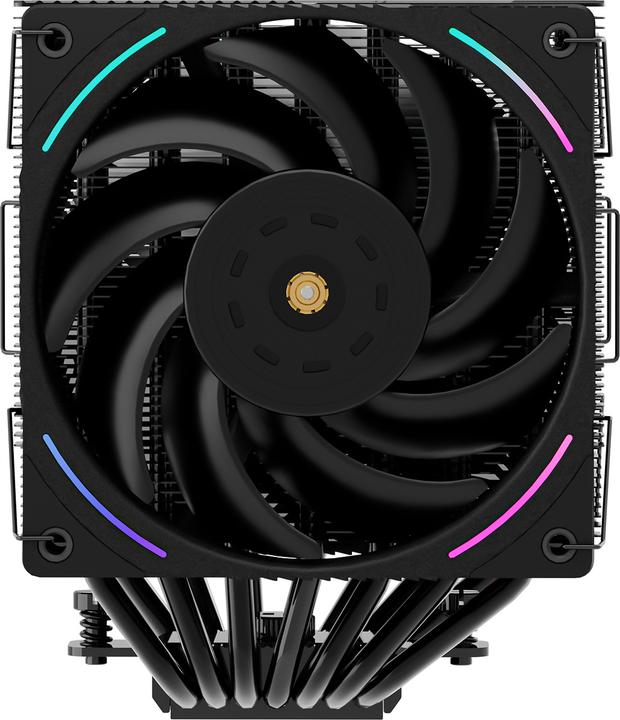

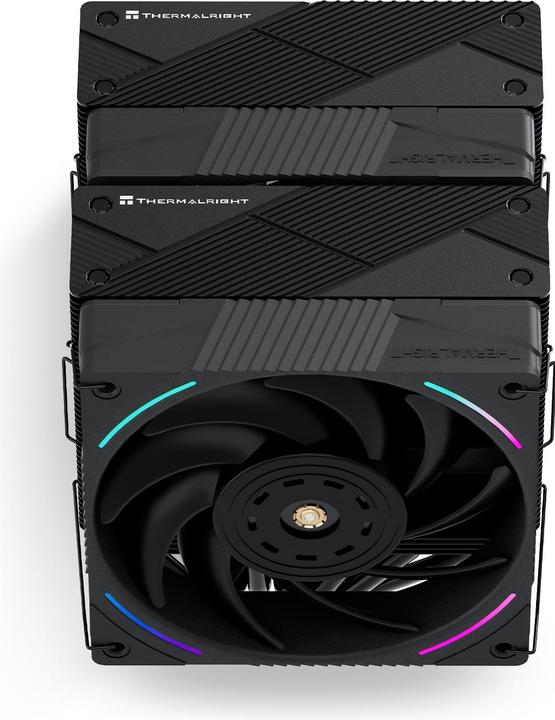

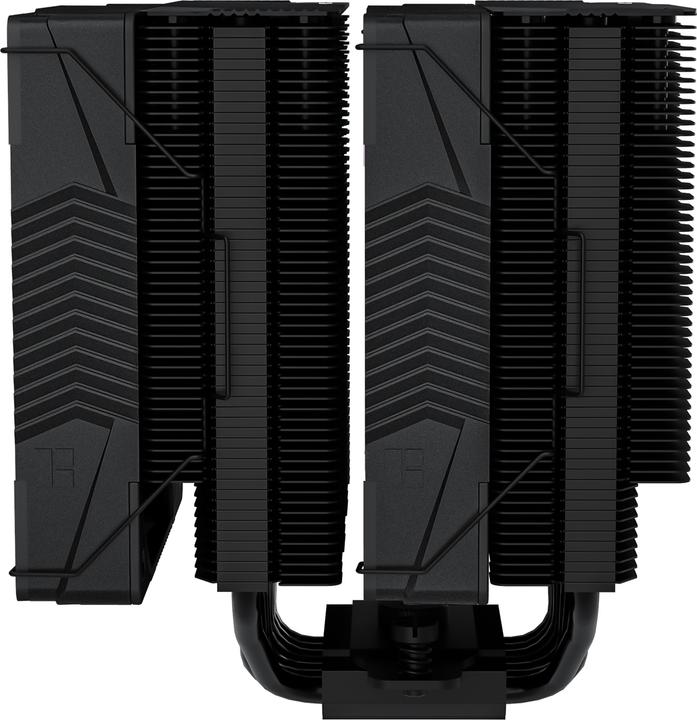

The Thermalright Phantom Spirit 120 Evo is a powerful dual-tower CPU cooler designed for AMD and Intel platforms. It features an efficient cooling system that includes seven 6 mm heat pipes and a copper base to ensure excellent heat transfer even under demanding conditions. The cooler is equipped with two 120 mm TL-K12 PWM fans that can reach speeds of up to 2150 RPM. These fans provide optimal airflow while keeping noise levels low, around 27 dBA.

The cooler utilizes advanced AGHP 4.0 technology, which enhances thermal conductivity and maintains performance under heavy loads. Its compact size (125 x 135 x 157 mm) allows for easy installation in most cases without interfering with RAM or graphics cards. The Phantom Spirit 120 Evo supports a variety of CPU socket types, including AMD AM4/AM5 and Intel LGA1700/1200 series.

Actual product image Thermalright Phantom Spirit 120 EVO - CPU air cooler - Max 27 dBA (157 mm)

Key specifications

Socket

A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering.
Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket.

Diameter

Number of fans

Max. TDP

The thermal design power (TDP), sometimes called thermal design point, refers to the maximum amount of power the cooling system in a computer is required to dissipate. For example, a laptop's CPU cooling system may be designed for a 20 watt TDP, which means that it can dissipate up to 20 watts of heat without exceeding the maximum junction temperature for the computer chip. It can do this using an active cooling method such as a fan or any of the three passive cooling methods, convection, thermal radiation or conduction. Typically, a combination of methods is used. The TDP is typically not the most power the chip could ever draw, such as by a power virus, but rather the maximum power that it would draw when running "real applications". This ensures the computer will be able to handle essentially all applications without exceeding its thermal envelope, or requiring a cooling system for the maximum theoretical power (which would cost more but in favor of extra headroom for processing power).

Airflow

The air volume refers to the amount of air that can be moved or circulated per unit of time. It is often measured in cubic metres per hour or litres per second. A higher air volume generally indicates a stronger suction force or circulation of air.

power connector

Height (with fan)

Phantom Spirit 120 EVO - CPU air cooler - Max 27 dBA

CPU coolers

14-day cancellation right
30-day right of return

30-day right of return

General information

Colour

Cooler properties

Heat sink properties

Fan dimensions

Fan properties

Connections

Power supply

Scope of delivery

Origin

Voluntary climate contribution

Product dimensions

Legal Notice

Package dimensions

With a maximum TDP of 280W, the dual-tower air cooler is also suitable for particularly demanding processors under heavy load.

High Cooling Performance

The two 120mm fans reach a maximum noise level of around 27 dBA for quiet system operation.

Low Noise Generation

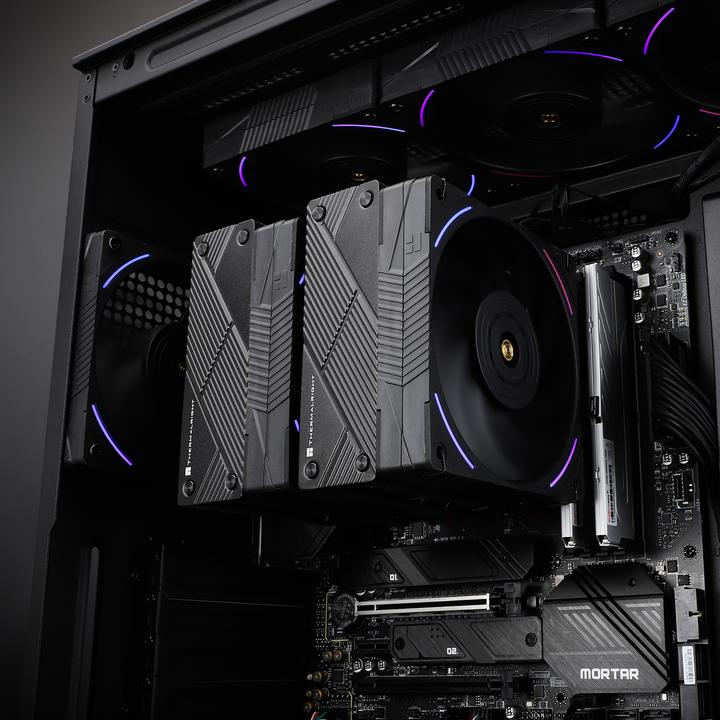

With a height of 157mm, the cooler is suitable for standard PC cases as well as modern Intel and AMD sockets such as LGA 1700 and AM5.
