Tremba HMB-1513.001-12VDC Linear solenoid pushing, pulling 2 N 8 N 12 V/DC 35 W
Price in EUR including VAT
Free shipping starting at 30,–
The Tremba HMB-1513.001-12VDC is a bistable, bidirectional actuator magnet that operates in both pushing and pulling modes. With an output voltage of 12 V/DC and a maximum power of 35 W, this lifting magnet provides a reliable solution for applications requiring high motion forces. The magnet features secure locking in both end positions, allowing for precise control. Thanks to its moderate power consumption, it is energy-efficient and suitable for a wide range of applications. The actuation is done via a short current pulse of about 50 ms, ensuring a quick response time. The design of the HMB-1513.001-12VDC allows for high switching reliability and an extremely wide actuation tolerance, making it a flexible choice for various technical applications.
input voltage | 12 V |
Output voltage | 12 V |
Item number | 36742942 |
input voltage | 12 V |
Output voltage | 12 V |
Max. Switching capacity | 0.04 kW |
Manufacturer Type | HMB-1513.001-12VDC |
CO₂-Emission | |
Climate contribution |

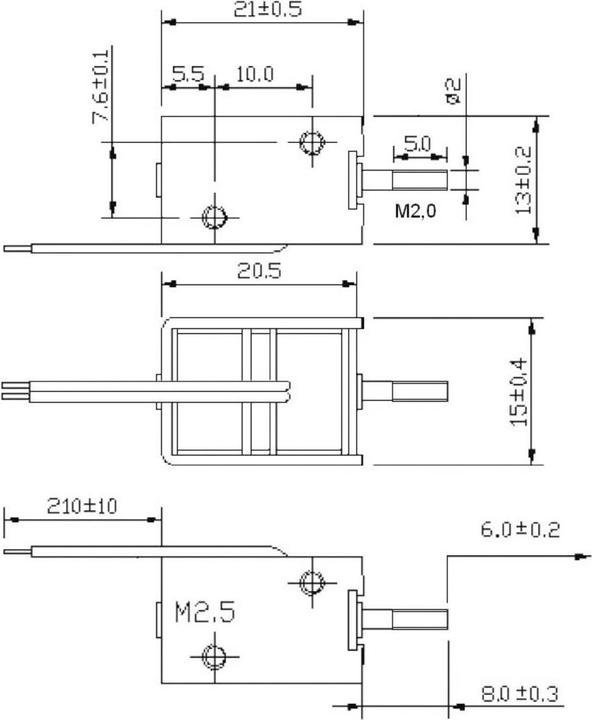

Length | 21 mm |
Width | 15 mm |
Height | 13 mm |
Weight | 21 g |
