Turck Actuator and sensor cable PP-EPDM connecting cable

5 m
Price in EUR including VAT
Ratings
BrandMore from Turck
Delivered between Thu, 27.11. and Fri, 12.12.
free shipping

Product details

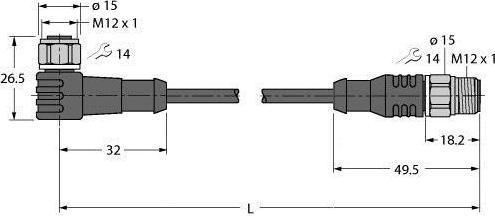

Turck connection cable WKCV5T-5-RSCV5T/TFW Manufacturer :Turck Designation :Connection cable Type :WKCV5T-5-RSCV5T/TFW Number of poles :5 Type of electrical connection, field side :M12 Type of plug contact, field side :Male Arrangement of cable entry, field side :Straight Type of electrical connection, housing side :M12 Type of plug contact, housing side :female Cable feed arrangement, housing side :angled Cable length :5 m Material of cable sheath :other Colour of cable sheath :white With LED indicator :no Shielded :no Cable type :multi-core Material of contact base :CuZn Material of contact coating :gold Perm. Permissible external cable temperature after installation without vibration :-40..105 °C Permissible external cable temperature during installation/handling :0...80 °C Rated current In :4 A Rated voltage :60 V Turck connecting cable WKCV5T-5-RSCV5T/TFW: further details Actuator and sensor cable / PP-EPDM, connecting cable, M12 coupling, angled, 4-pin + PE, union nut/screw in stainless steel, sheath material: PP-EPDM, Sheath colour: white, Resistant to acids and alkalis, Resistant to cleaning agents and disinfectants, Hydrolysis-resistant in accordance with DIN EN 60068-2-78, Silicone and PVC-free, Halogen-free in accordance with DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1, Approvals: Ecolab, FDA, RoHS and REACH compliant, protection class IP67, IP69K, cable length 5 m, M12 plug, straight, 4-pin + PE , EAN: 4047101381627.

Key specifications

Cable length
5 m
Plug type
M12
Item number
36331235

General information

Manufacturer
Turck
Category
Power cables
Manufacturer no.
6934984
Release date
15.6.2023

Colour

Cable colour
White

Power cable properties

Wall socket
M12
Plug type
M12
Plug type
Angled

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Cable length
5 m
