Turck Magnetic field sensor
Price in EUR including VAT
Delivered between Thu, 27.11. and Fri, 12.12.
free shipping
Product details
The Turck magnetic field sensor is a highly advanced device specifically designed for use in pneumatic cylinders. It is ideally suited for T-slot cylinders and can be installed without additional mounting accessories. The sensor allows for one-handed installation and offers the possibility for fine adjustment as well as the mounting of a stopper directly on the device. With a robust design and a radiation-crosslinked TPU cable, this sensor is particularly suitable for applications in welding environments. The magnetoresistive sensor ensures precise detection of magnetic fields and is optimized for long-stroke cylinders. The stable mounting and the polarized version of the sensor provide reliable performance in demanding environments.
- Suitable for pneumatic cylinders and T-slot cylinders
- One-handed installation and fine adjustment possible directly on the sensor
- Radiation-crosslinked TPU cable for welding applications
- Magnetoresistive sensor for precise magnetic field measurement
- Stable mounting and long stroke length.
Width | 5 mm |
Item number | 36813510 |
Manufacturer | Turck |
Category | Buttons + Switches |
Manufacturer no. | 4685768 |
Release date | 28.6.2023 |
Material group | Plastic |
Material | Plastic |
Nominal voltage | 55 V |
Protection type (IP code) | IP68 |
Country of origin | Switzerland |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 10...55 VDC, Cable length 0.3 m, Closers, DC 2-wire, Fine adjustment and stopper can be mounted directly on the sensor, for large-stroke cylinders, for pneumatic cylinders, For T-slot cylinders without mounting accessories, Long crossing distance, Magnetic field sensor, Magneto-resistive sensor, One-hand mounting possible, Optional accessories for mounting on other cylinder designs, Pigtail with M12 x 1 connector, polarised version, Radiation-crosslinked TPU cable for welding applications, Stable attachment |

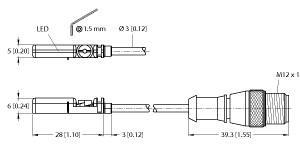

Length | 28 mm |
Width | 5 mm |
Height | 6 mm |
Product Safety |
