Ubiquiti AM-5G17-90: Base station antenna
5GMore than 10 pieces in stock at supplier
Product details

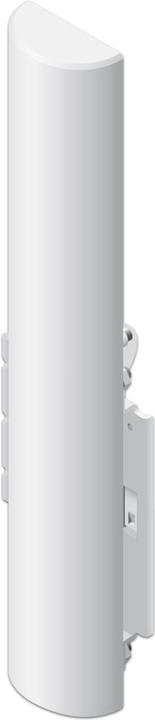

AirMax Sector 5G17-90 - 5 GHz 2x2 MIMO Base Station Antenna

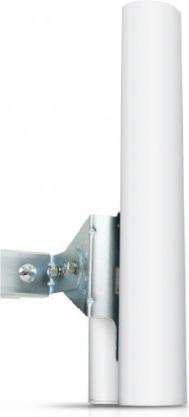

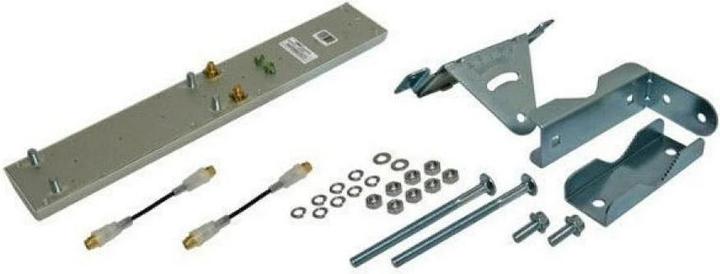

Top-class antenna. The patented next-generation technology achieves performance in terms of gain, cross-polarization isolation, and beamforming that competes with the best antennas in the world. It is compatible with the Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP base station. The package includes a mount for the Rocket as well as weatherproof RF connectors.

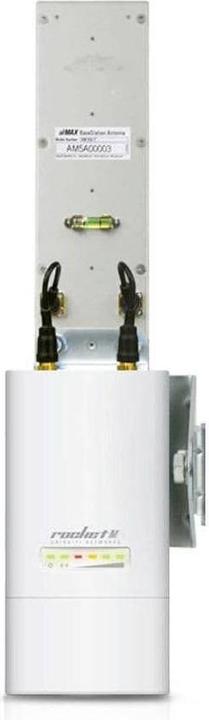

Rocket M and AirMax BaseStation sector antennas are designed to work seamlessly together. No special tools are required for installation; simply snap the device into the designated mount.
Frequency range: 4.90-5.90 GHz
Gain: 16.1-17.1 dBi
Polarization: Dual linear
Cross-polarization isolation: 22 dB min.
Max. VSWR: 1.5:1
Hpol beamwidth (6 dB): 72 deg.
Vpol beamwidth (6 dB): 93 deg.
Elevation beamwidth: 8 deg.
Electrical downtilt: 4 deg.
ETSI specification: EN 302 326 DN2
Dimensions: 367 x 63 x 41 mm
Weight: 1.1 kg
Wind load: 120 mph.
Antenna type | Mobile radio antenna, WLAN Antenna |
Antenna connection | RP-SMA |
Wi-fi frequency | 5 GHz |
Application range | Outdoor |
Item number | 5821390 |
Manufacturer | Ubiquiti |
Category | Network antenna |
Manufacturer no. | AM-5G17-90 |
Release date | 6.7.2011 |
External links |
Antenna type | Mobile radio antenna, WLAN Antenna |
antenna reception | 5G |
Antenna gain | 17.17 dBi |
Antenna connection | RP-SMA |
Wi-fi frequency | 5 GHz |
Application range | Outdoor |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 0.06 m |
Width | 0.37 m |
Height | 0.04 m |
Weight | 1100 g |
Length | 41.50 cm |
Width | 12 cm |
Height | 12 cm |
Weight | 1.37 kg |
