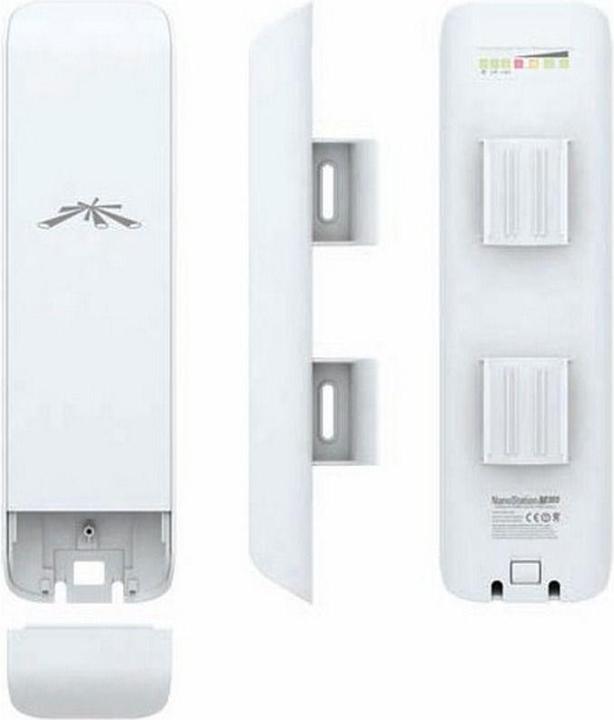

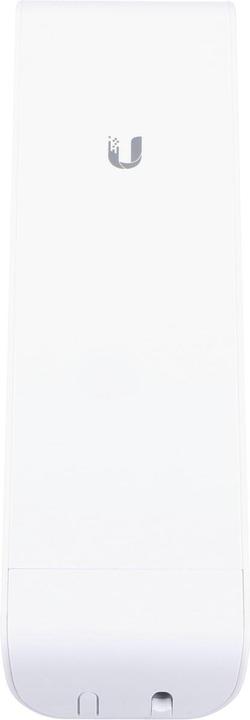

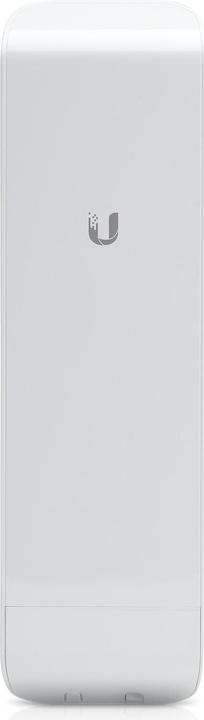

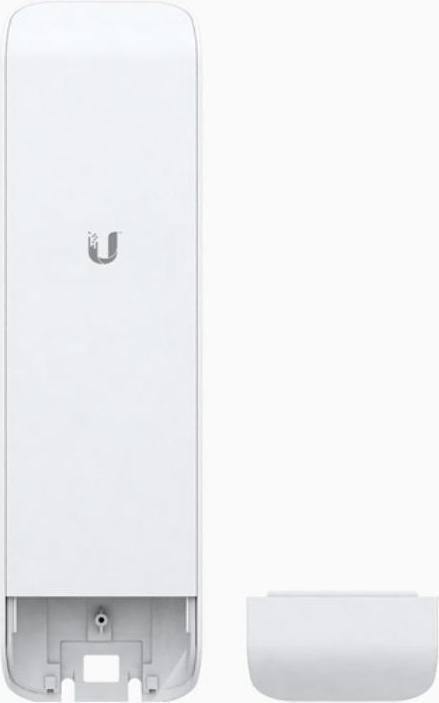

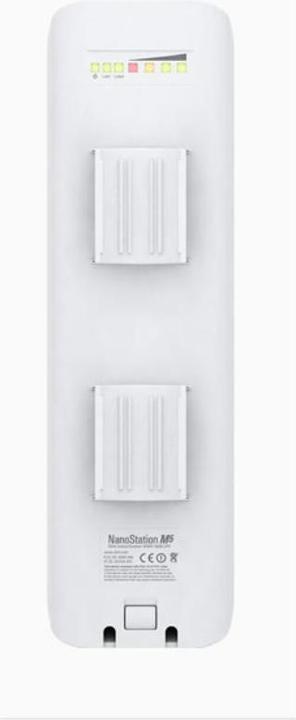

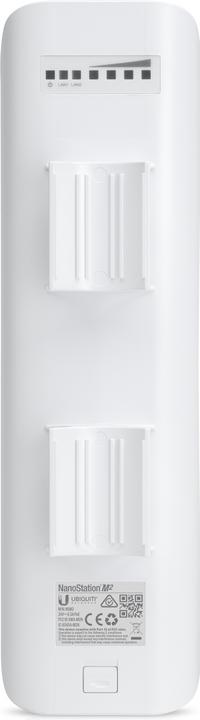

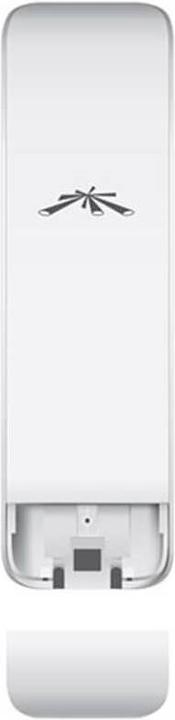

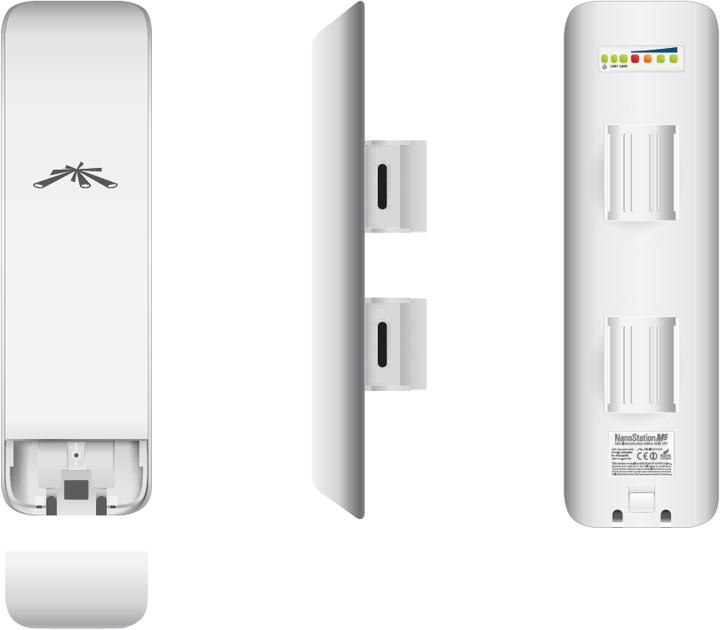

NanoStation M2 - 2.4 GHz Hi Power 2x2 MIMO AirMax TDMA Station

Performance Breakthrough
150 Mbps+ real outdoor throughput and up to 15 km+ range. Thanks to the 2x2 MIMO technology, the new NanoStation connects significantly faster and farther than ever before.

Top-Class Industrial Design

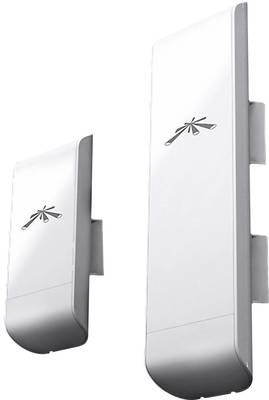

The original NanoStation set the standard for the world's first efficient outdoor broadband CPE. The new NanoStation M and NanoStation Loco M carry this concept forward with a redesigned, sleek design and elegant appearance.

Next-Generation Antenna Design
The new antenna design offers a dual-polarized antenna gain of 16 dBi in the 5 GHz band and 11 dBi in the 2.4 GHz band. Both provide improved cross-polarization isolation and a compact form factor.

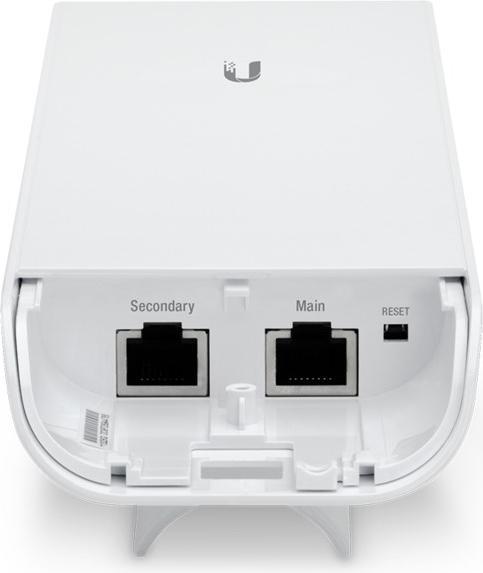

Dual Ethernet Connectivity
The new NanoStation M features a second Ethernet port with PoE output for seamless IP video integration.

Smart PoE
The remote hardware reset of the NanoStation allows devices to be reset remotely from the power supply location. Additionally, each NanoStation complies with the 802.3af standard by using the 802.3af adapter.

airOS V
Version 5 of airOS builds on the market-leading, intuitive user interface, which has been enhanced with advanced Wi-Fi settings and routing features.

Technical Specifications:
Processor: Atheros MIPS 24KC, 400 MHz
Memory: 32 MB SDRAM, 8 MB Flash
Network Interface: 2x 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Certifications: FCC Part 15.247, IC RS210, CE
RoHS Compliant: Yes
Dimensions: 29.4 cm x 8 cm x 3 cm
Weight: 0.4 kg
Enclosure Features: UV-resistant, outdoor-rated plastic

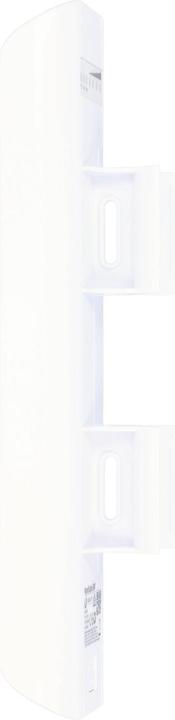

Mounting: Mast mounting kit included
Max Power Consumption: 8 Watts
Power Supply: 24 V, 0.5 A; includes PoE adapter with built-in surge protection
Power Supply Method: Passive Power over Ethernet.
