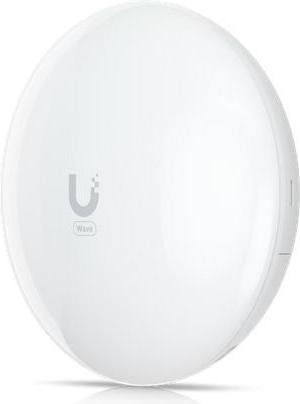

Ubiquiti Wave Pico, Lightweight, compact 60 GHz PtMP station powered by Wave Tec
Product details
Lightweight, compact 60-GHz PtMP station with Wave technology.
Mechanical dimensions: Ø152.1 x 55.8 mm (Ø6 x 2.2"). Weight: Without mount: 347 g (12.2 oz); With mount: 409 g (14.4 oz). Housing material: UV-stabilized polycarbonate. Mounting material: UV-stabilized polycarbonate. Diameter of mast mount: 20 to 53.1 mm (0.8 to 2.1") depending on the outer diameter of the pole. Wind load: 31.3 N at 200 km/h (7 lbf at 125 mph). Weather resistance: IPX6.
Hardware: Processor: Dual-Core ARM® Cortex®-A53 at 1 GHz. Memory: DDR3L 512 MB. Network interface: (1) GbE RJ45 port. Max: 10 W. Power supply method: Passive PoE 4 pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2 pairs (4, 5+; 7, 8-), only for 44-54V DC. Power supply: 48 V DC, 0.5 A Gigabit PoE adapter (included); can be powered by a UISP router or UISP switch. Supported voltage range: 44-54V DC; 22-27V DC. GPS: No. Button: Factory reset. LEDs: Power, Ethernet, Link. Operating temperature: -40 to 60° C (-40 to 140° F). Humidity: 5 to 95% non-condensing. Certifications: FCC, IC, CE.
Software: Operating mode: PtMP station, PtP. Ubiquiti-specific features: Wave AI, discovery protocol. Services: UISP, Ping Watchdog, NTP client, SNMP. Tools: Antenna alignment, Discovery Utility, Ping, Trace Route, Speed Test, Cable Test*, Site Survey*, *FW Version 3.3.0 and higher. Network: Bridge/Router*-mode, *Router is only available in PtMP station mode. Application requirements: UISP Web: Version 2.4.61 and higher; UISP mobile iOS™: Version 2.32.0 and higher; UISP mobile Android™: Version 2.31.9 and higher.
System: Total throughput: 2 Gbit/s (1 Gbit/s duplex). Max. range: Up to 1.3 km (Wave AP); Up to 0.9 km (Wave AP Micro). Encryption: WPA2-PSK (AES).
RF: Operating frequency*: 57-71 GHz *Depending on the respective region. Channel bandwidth: 2160, 1080, 540* MHz, *FW Version 3.3.0 and higher.
Operating modes | Access point, Bridge |
Number of RJ45/LAN ports | 1 |
Max. port speed | 1000 Mbit/s |
Wi-Fi standard | 802.11ad |
Wi-Fi frequency band | Single band |
Area of application | Outdoor |
Item number | 44887256 |
Manufacturer | Ubiquiti |
Category | Access points |
Manufacturer no. | WAVE-PICO-EU |
Release date | 12.4.2024 |
Operating modes | Access point, Bridge |
Long range coverage | 1.30 km |
Number of RJ45/LAN ports | 1 |
Max. port speed | 1000 Mbit/s |
Protection type (IP code) | IPX6 |
Access Point Functions | PoE capable |
Wi-Fi standard | 802.11ad |
Wi-Fi frequency band | Single band |
Wi-Fi encryption | WPA2-PSK |
Area of application | Outdoor |
Power supply | PoE |
Power consumption | 10 W |
CO₂ emissions | 29,26 kg |
Climate contribution | EUR 0,74 |
Scope of delivery | Gigabit PoE adapter |
Width | 15.21 cm |
Height | 5.58 cm |
Weight | 347 g |
