Properties
Type: C - for PCB mounting

Technical data
Contacts: 50 V (AC or DC), 0.3 A continuous
Electrical life: minimum 10,000 operations at full load, 15 to 20 operations per minute
Contact resistance: maximum 50 mohm
Dielectric strength: 500 Vrms at sea level
Insulation resistance: minimum 100 Mohm at 500 Vdc
Torque: 0.5 ± 0.2 kgf/cm
Operating temperature: -20 °C to +85 °C
Positions: adjustable from 2 to 12 positions, with a rotation of 30° between different positions

Materials
Axle: nylon reinforced with fiberglass
Sheath: nylon reinforced with fiberglass
Base: nylon reinforced with fiberglass
Contacts: silver plated brass
Terminals: silver plated brass
Fixing nut: nickel plated zinc
Lock washer: zinc plated steel
Stop ring: nickel plated brass

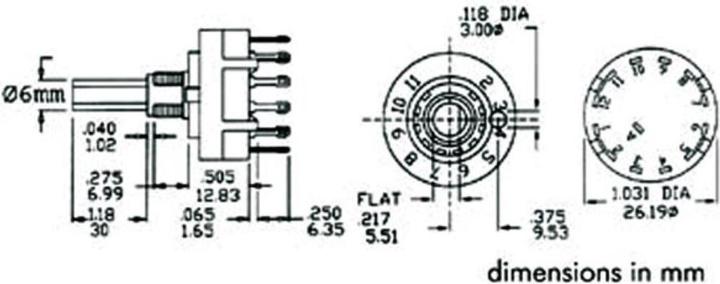

Ø: 6 mm.
