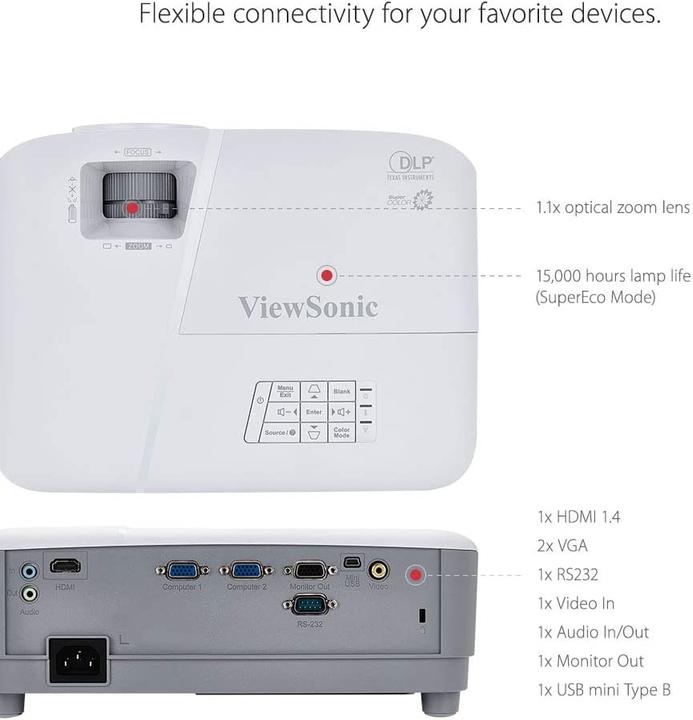

The ViewSonic PA503W is the ideal projector for your home, featuring an innovative and user-friendly design along with impressive performance. It boasts 3,600 ANSI Lumens, a native WXGA resolution of 1280 x 800, and a contrast ratio of 22,000:1 for detailed image reproduction. Additionally, the exclusive SuperColor technology provides a wide color gamut for brilliant image production in almost any lighting conditions. A 2-watt speaker delivers incredibly clear and powerful sound, enhancing the audiovisual entertainment experience. Furthermore, the PA503W offers extensive connectivity options such as HDMI, VGA, composite video, and audio. Additionally, the energy-saving SuperEco feature reduces power consumption and contributes to environmental sustainability.
Projector type | 3D projector, Home cinema projector |
Projector technology | DLP |
Contrast ratio | 22000 :1 |
Throw ratio | 1.55 - 1.7:1 |
Equipment + Functions | 3D, Integrated loudspeakers |
Image resolution | 1280 x 800 pixels |
Max. Projection area (inch) | 300" |
Documents | |
Item number | 12542430 |
Manufacturer | Viewsonic |
Category | Projector |
Manufacturer no. | PA503W |
Release date | 20.1.2020 |
External links |
Colour | White |
Projector type | 3D projector, Home cinema projector |
Projector technology | DLP |
Installation place | Table |
Focus type | Manual focus |
Focal length | 22 - 24.1 mm |
Equipment + Functions | 3D, Integrated loudspeakers |
Aspect ratio | 16:10 |
Display resolution | Full HD |
Image resolution | 1280 x 800 pixels |
4K Technology | Native Ultra-HD |
Contrast ratio | 22000 :1 |
Brightness (ANSI) | 3600 lm |
Projection ratio | Variable |
Max. Projection area (inch) | 300" |
Horizontal scanning area | 15 - 102 kHz |
Vertical scanning range | 23 - 120 Hz |
Min. throw ratio | 1.55 :1 |
Max. throw ratio | 1.70 :1 |
Image adjustment | Keystone correction |
Zoom type | Optical |
Optical zoom | 1.10 x |
Min. projection distance (metres) | 1 m |
Max. projection distance (metres) | 10.98 m |
Multimedia features | Integrated loudspeakers |

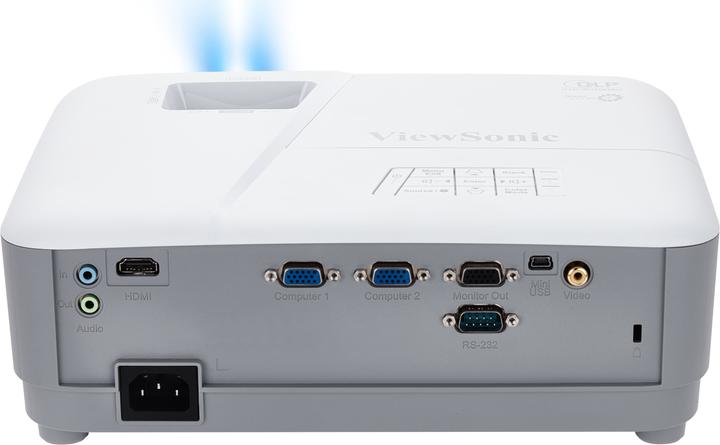

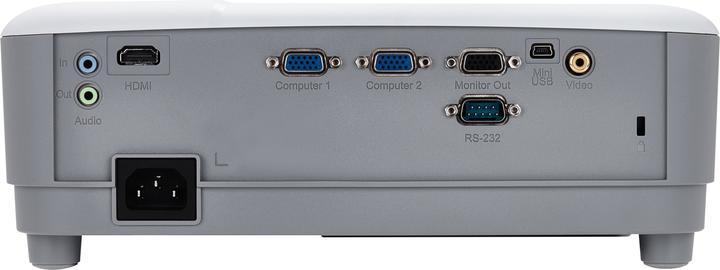

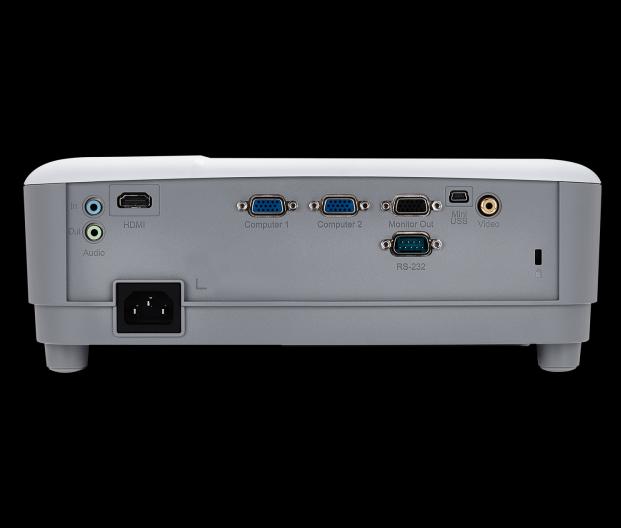

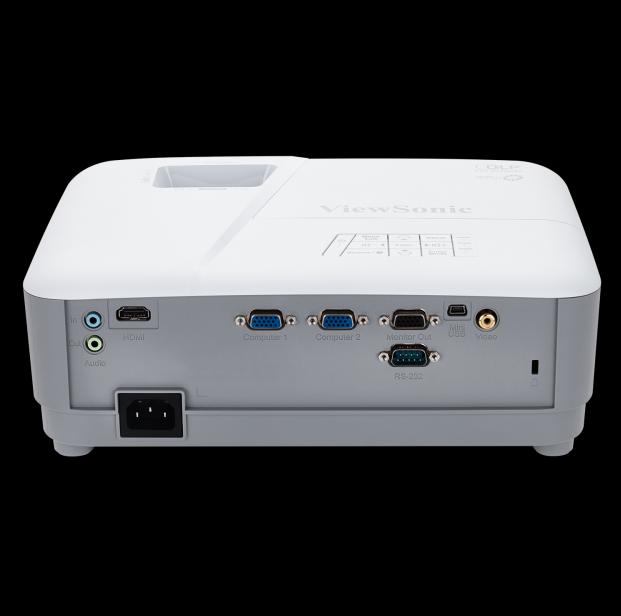

Video connections | Component Video YPbPr (1x), Composite Video (1x), HDMI (1x), VGA (1x) |
Audio Connections | Jack 3.5mm (1x) |
Data ports | RS-232 (1x) |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (1x) |
Network connections | RJ45 (1x) |
Max. noise level | 27 dB |
Noise level in power saving mode | 27 dB |

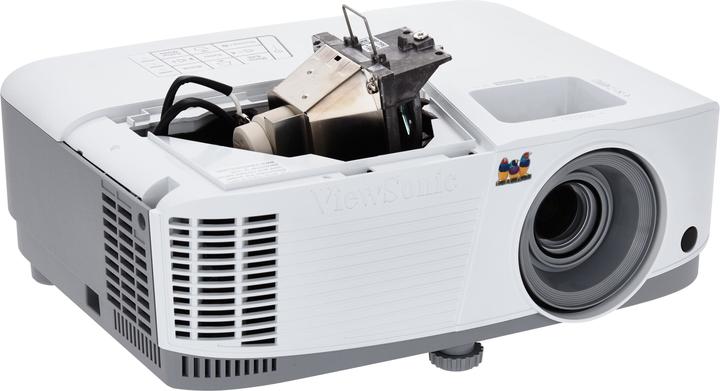

Lamp technology | UHP |
Lamp service life | 5000 h |
Life energy-saving mode | 10000 h |
Power supply | Electrical connection |
Conventional energy consumption | 260 W |
Power consumption (standby) | 0.50 W |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |

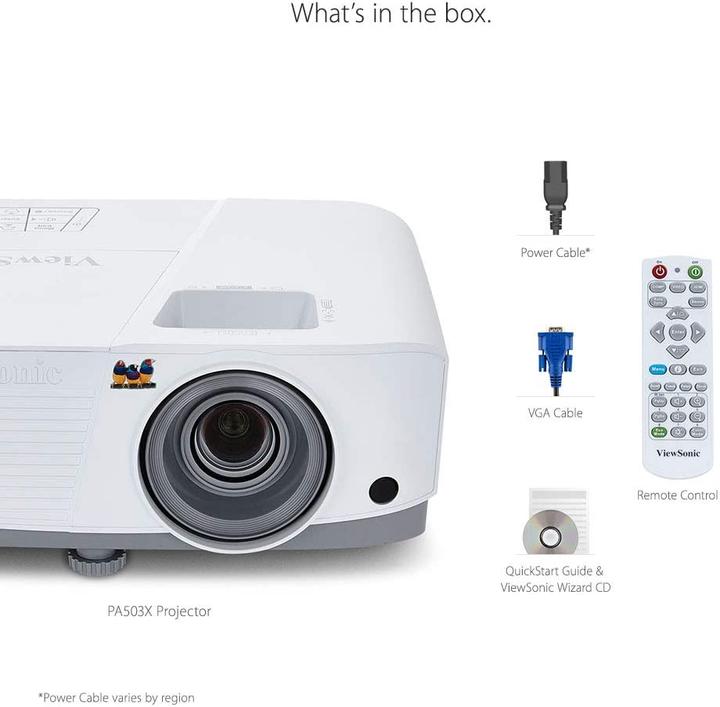

Scope of delivery | AC, VGA |
Length | 218 mm |
Width | 294 mm |
Height | 110 mm |
Weight | 2.20 kg |
Length | 36 cm |
Width | 30 cm |
Height | 19 cm |
Weight | 3.45 kg |
Product Safety |
How often does a product of this brand in the «Projector» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «Projector» category returned?
Source: Galaxus
The PA503W is the low-cost HD representative of this test: its DLP chip only resolves 1280 x 800 pixels. However, the projector accepts full HD signals via HDMI and throws them onto the wall. It does this so well that many visitors to our lab did not notice the slightly lower sharpness of the picture...
