The special design of the interior casing provides ample space for the installation of various components, including discreet cabling. The power supply and up to three 3.5-inch hard drives can be decoupled and mounted behind a cover at the bottom of the case. The motherboard and other components can also be wired discreetly. In addition to the practical installation opening for CPU coolers, there are numerous openings for all necessary cables in the motherboard area. For water cooling, the tower allows for the installation of a 280 mm radiator with a total height of up to 5.7 cm, including the fan, at the front of the case. Tower coolers can be installed up to a height of 17.5 cm. The maximum length of usable graphics cards is 38 cm, and power supplies can be used with a length of up to 23 cm. Pre-fabricated dust filters protect the installed hardware from contamination and can be easily removed and reinserted for cleaning. Additionally, a dust filter is pre-installed on the top, which can also be easily removed thanks to its magnetic attachment.
NAS HDD assembly | NAS Hardbundle |
Max. number of hard disks | 2 |
RAID configuration | 0, 1, JBOD |
Working memory | 1 GB |
Total storage capacity | 8 TB |
Network connections | RJ45 Gigabit Ethernet (1x) |
Exact USB ports | USB-A 3.0 (2x) |
Documents | Technical data sheet.pdf |
Item number | 5758193 |
Manufacturer | WD |
Category | NAS |
Manufacturer no. | WDBVBZ0080JCH-EESN |
Release date | 4.1.2016 |
Colour | Black |
Exact colour description | Black |
NAS HDD assembly | NAS Hardbundle |
Model | Desktop |
Max. number of hard disks | 2 |
Hard drive form factor | 3.5" |
RAID configuration | 0, 1, JBOD |
Memory type | DDR3-RAM |
Working memory | 1 GB |
Maximum possible memory | 1 GB |
Add-on packages | Surveillance Station |
NAS features – model-specific | AES 256-bit volume encryption, Max. number of user accounts 512, Maximum concurrent CIFS connections 10, Number of groups max. 64 |
Data storage configuration | 2 x 4 TB |
Total storage capacity | 8 TB |
HDD/SSD model | WD Red |
Hard disk additional functions | Hot swapping |
Processor type | Marvell Armada 385 |
Clock frequency | 1.30 GHz |
Max. turbo clock rate | 1.30 GHz |
Number of processor cores | 2 -Core |

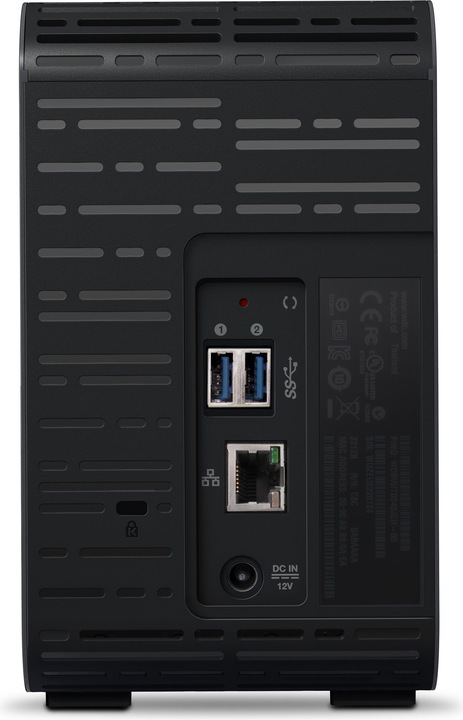

Network connections | RJ45 Gigabit Ethernet (1x) |
Connectivity | Ethernet |
USB ports | USB-A |
Exact USB ports | USB-A 3.0 (2x) |
Number of camera licenses included | 2x |
Max. number of cameras | 10x |
Power consumption | 25 W |
Power consumption (standby) | 15 W |
Redundant power supply unit | Yes |
Scope of delivery | 1x RJ-45 cable, External power supply |
Length | 15.70 cm |
Width | 9.90 cm |
Height | 16.50 cm |
Weight | 2.30 kg |
Product Safety |
Length | 30 cm |
Width | 24 cm |
Height | 18 cm |
Weight | 2.74 kg |
