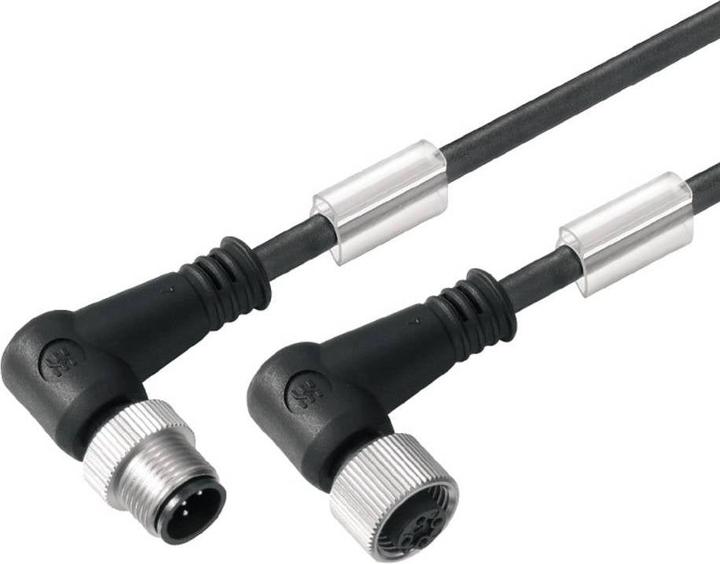

Weidmüller sensor/actuator cable SAIL-M12WM12W-5-0.5U
Manufacturer: Weidmüller
Designation: Sensor/actuator cable
Type: SAIL-M12WM12W-5-0.5U
Number of poles: 5
Electrical connection type, field side: M12
Plug contact type, field side: Female
Cable entry arrangement, field side: Angled
Electrical connection type, housing side: M12
Plug contact type, housing side: Male
Cable entry arrangement, housing side: Angled
Cable length: 0.5 m
Material of cable sheath: Polyurethane (PUR)
Halogen-free: Yes
Colour of cable sheath: Black
With LED display: No
Shielded: No
Cable type: Multi-core
Radiation cross-linked: No
Material of contact base: Other
Material of contact coating: Gold
Permissible external cable temperature after assembly without exposure to shocks: 1.5 m
Permissible cable outer temperature after assembly without vibration: -40 to 80 °C
Permissible cable outer temperature during assembly/handling: -25 to 80 °C
Rated current: 4 A
Rated voltage: 60 V
Contact resistance: 0 mOhm
Protection class (IP): IP65

Weidmüller sensor/actuator cable SAIL-M12WM12W-5-0.5U: More details
Pre-assembled sensor/actuator cable for connecting sensors or actuators and for data transmission. The connectors are moulded and tested.
EAN: 4050118236958.
