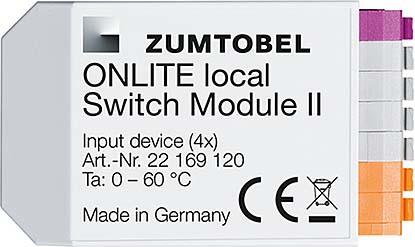

Zumtobel Group DALI Switching Input Device ONLITE loc #22169120

Manufacturer: Zumtobel Group
Designation: DALI Switching Input Device 4-fold
Type: ONLITE loc #22169120
Protection Class: II

The ONLITE local Switch Module II is a DALI input device for independently switching the four emergency lighting circuits of the SB 128 controller from continuous to standby operation. Standard switches or timers with potential-free contacts can be used to switch the emergency lighting circuits or individual lights within a circuit. This allows emergency exit signs and safety lights, which must operate continuously according to applicable standards and regulations, to be switched to standby mode outside of operating hours. This can significantly extend the lifespan and reduce power consumption.

Power is supplied via the DALI control line, which is connected through terminals (no mains connection). The maximum power consumption is 4 mA (2 DALI loads). The DALI input is voltage-proof against 230/240V external voltage. The device is designed for installation in standard flush-mounted boxes behind the switch.

Dimensions: 47.7 x 28.2 x 14.6 mm
Material: flame-retardant polycarbonate, halogen-free.
Switches must be rated for at least 15 VDC and are connected to the device's supply lines.
EAN: 9008709641747.
