ZVK EasyLan LSD32200075 LWL LED patch cable
LSOH, CAT7a, 7.50 mPrice in EUR including VAT
free shipping

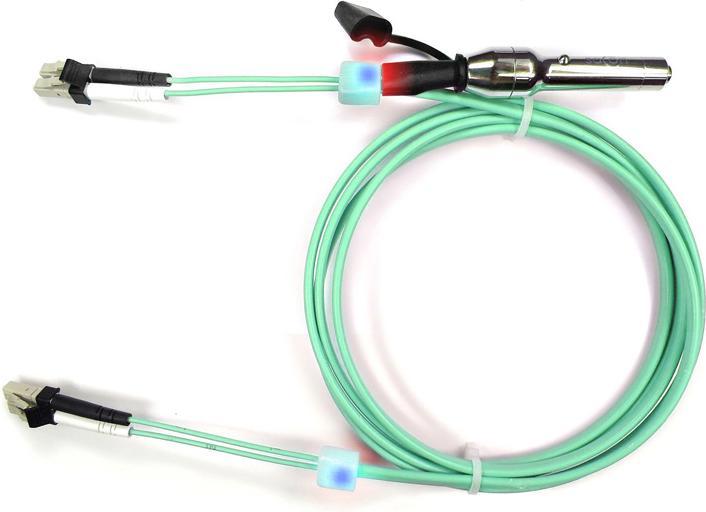

The saCon LWL-LED patch cable is designed for use in offices, industry, and data centers. The cable construction ensures that the optical transmission parameters provide a maximum level of data security. The patented method for easily matching the cable ends significantly increases operational safety by preventing accidental pulling of the patch cables. Once one end of the patch cable is connected to the detector, both cable ends are electrically stimulated and light up. Duplex cable with fiber type 50/125µm OM3, halogen-free and flame-retardant cable sheath, turquoise. SFF connectors for high packing density, color-coded, with ceramic ferrule. Note: Cable is available in lengths of 1m, 2m, 3m, 5m, 7.5m, and 10m; other lengths available upon request.
Patch cable type | Fibre optic cable |
Contact assignment | crossover |
Fibre type | Multi Mode |
LWL plug connectors | APC-LC/LC |
Item number | 34148784 |
Manufacturer | ZVK |
Category | Network cables |
Manufacturer no. | LSD32200075 |
Release date | 17.5.2023 |
Cable colour | Turquoise |
Material | LSOH |
Material of the isolation | LSOH |
Connection A | LC |
Connection B | LC |
Cable Application | Lwl |
Cable design | LSOH outer jacket |
Plug type | Gold-plated contacts |
Cable connection | Connection (m/m) |
Temperature range | Max. operating temperature: 70 °C |
Patch cable type | Fibre optic cable |
Patch cable Features | Slim |
Cable category | CAT7a |
Contact assignment | crossover |
Shield | LSOH |
Fibre type | Multi Mode |
LWL plug connectors | APC-LC/LC |
Fibre category | OM3 |
Number of fibres | 2 x |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 125µm OM3, LC, Fibre optic LED patch cable duplex 50, LC, turquoise, 7.5 m |
Length | 7.50 m |
Width | 10 mm |
Depth | 7500 mm |
Weight | 131.57 g |
