Zyxel DX3301-T0 VDSL2 (EN Version WiFi 6 Super Vectoring Router)

The Zyxel DX3301-T0 provides high-speed internet access with QoS features to meet the demands of the global triple-play market. With integrated 2x2 802.11ax Wi-Fi functionality and Zyxel MPro Mesh solutions, the series offers a seamless Wi-Fi experience and excellent wireless access with numerous features for powerful internet connectivity.

In addition to functioning as a full-fledged modem-router, the DX3301-T0 can also be used as a VDSL bridge. A downstream firewall forwards the data stream unchanged. Typically, connection to the provider's network is made via PPPoE through the firewall.

Features:
WAN Interface:

• DSL RJ-11/RJ45/GbE

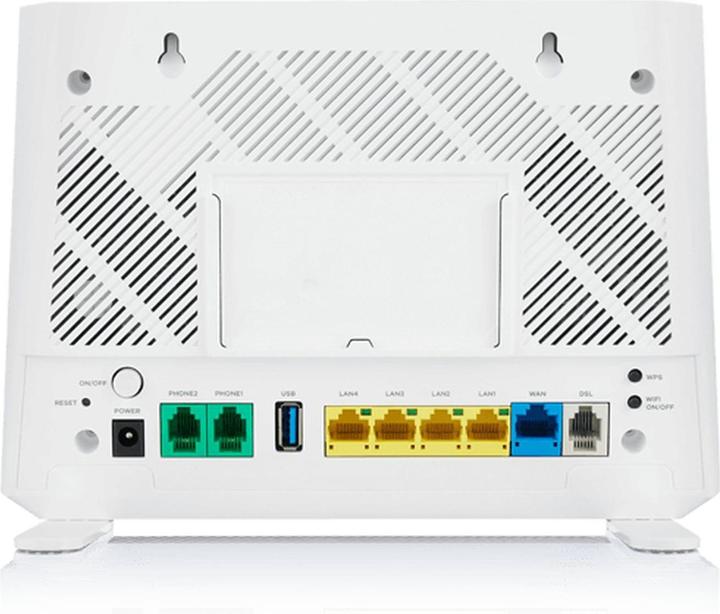

Ethernet Ports (10/100/1000):

• 5 (1 for Ethernet WAN)

POTS FXS Ports:

• 2

USB Port:

• 1 (USB 2.0)

VDSL:

• G.993.1 VDSL
• G.993.2 VDSL2, Bands 997, 998, Over POTS
• VDSL Profiles: 8a/b/c/d, 12a/b, 17a, and 35b
• G.vector

ADSL:

• G.992.1 (G.dmt)
• G.992.2 (G.lite)
• ANSI T1.413 compliant
• G.992.3 (ADSL2)
• G.992.5 (ADSL2+)
• Supports G.INP

Router Functions:

• IPv4/IPv6
• NAT
• Port Forwarding
• WAN Connection Types: DHCP, PPPoE
• DHCP Options 60/121/125
• DHCP Server in LAN
• IGMP v1/v2
• IGMP Proxy
• Dynamic DNS

Wireless:

• Automatic Channel Selection
• WiFi Multimedia (WMM)
• Wireless Scheduling
• Wireless Output Power Management
• Multiple SSIDs up to 4
• Wi-Fi Protected Setup (WPS)
• Intra-BSS Traffic Block
• MAC Address Filtering

VLAN:

• 802.1q Tag/tag-based VLAN
• VLAN to ETH Port Mapping
• Bridged/routed VLAN.
