Best Shuttle products in the Barebones category
On this page you'll find a ranking of the best Shuttle products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Shuttle DH770 S1700 H770 BLACK 120W
The Shuttle XPC slim Barebone DH770 with H770 chipset offers the performance of Intel's 12th, 13th, and 14th generation Core desktop processors (codenamed "Alder Lake-S" and "Raptor Lake-S" [Refresh]) with LGA1700 socket in a compact 1.3-liter format. It supports the simultaneous operation of four Ultra HD displays via 2x HDMI and 2x DisplayPort. Dual Intel 2.5G networking, four USB 3.2 Gen 2 ports, and COM ports are also included. The flat metal case with VESA mount, diverse connectivity options, and reliable operation at ambient temperatures of up to 50 °C make the DH770 ideal for professional applications such as digital signage, POS, POI, gaming machines, office use, healthcare, and industry.
Case
- Slim PC with black metal housing
- Dimensions: 19 x 16.5 x 4.3 cm (L x W x H) = 1.35 liters
- Weight: 1.3 kg net and 2.1 kg gross
- Two openings for Kensington Lock and numerous M3 threaded holes on both sides of the case.
Power Supply
- External 120 W power supply (fanless)
- Input: 100-240 V AC, 50/60 Hz
- Output: 19 V DC, 6.32 A, max. 120 W
- DC connector: 5.5/2.5 mm (outer/inner diameter)
- Note: The DC input of the computer supports an external power supply with 19V±5%
- AC cable: 3-pin, approximately 1.7 m long, with C5/C6 cloverleaf connector to the power supply and CEE-7/7 plug with protective contact (Type E+F) for connection to the socket.
Operating System
- This system is delivered without an operating system.
- It is compatible with Windows 10/11 and Linux (64-bit).
Processor Support
- Processor socket LGA1700
- Supports Intel Core i9 / i7 / i5 / i3, Pentium Gold, and Celeron processors
- Supports the following generations of Intel Core processors:
- Gen 12 "Alder Lake-S"
- Gen 13 "Raptor Lake-S"
- Gen 14 "Raptor Lake-S Refresh"
- Built on "Intel 7" process technology (formerly: Intel 10 nm Enhanced SuperFin).
2. Shuttle Barebone XPC slim DH610 Black
The Shuttle XPC slim Barebone DH610 with H610 chipset houses the power of Intel's 12th, 13th, and 14th generation Core desktop processors (codenamed Alder Lake-S and Raptor Lake-S Refresh) for the LGA1700 socket in a compact 1.3-liter format. The DH610 allows for the simultaneous operation of three Ultra HD displays via 1x HDMI and 2x DisplayPort. It also features dual Intel LAN (one of which supports 2.5G speed), eight USB ports, and two COM ports. The sleek metal case comes with a VESA mount and offers versatile connectivity options as well as reliable operation in environments with temperatures up to 50 °C. This platform is intended for professional applications such as digital signage, POS, POI, gaming machines, office use, healthcare, and industry. A BIOS update may be required for Intel Core Gen 13 and Gen 14, which must be performed with a compatible processor.
3. Shuttle XPC slim DS50U7
The DS50U series is a fanless slim PC with a sturdy 1.3-liter metal chassis and exceptional connectivity options. It supports two digital video outputs for UHD/4K displays and a traditional D-Sub/VGA port. The built-in Intel Gen 12/13 processor provides ample power for playing 2160p/60 videos. Installing the components is straightforward, as there is enough space inside for two DDR5 memory modules, a 2.5-inch drive, and two M.2-2280 SSD cards.

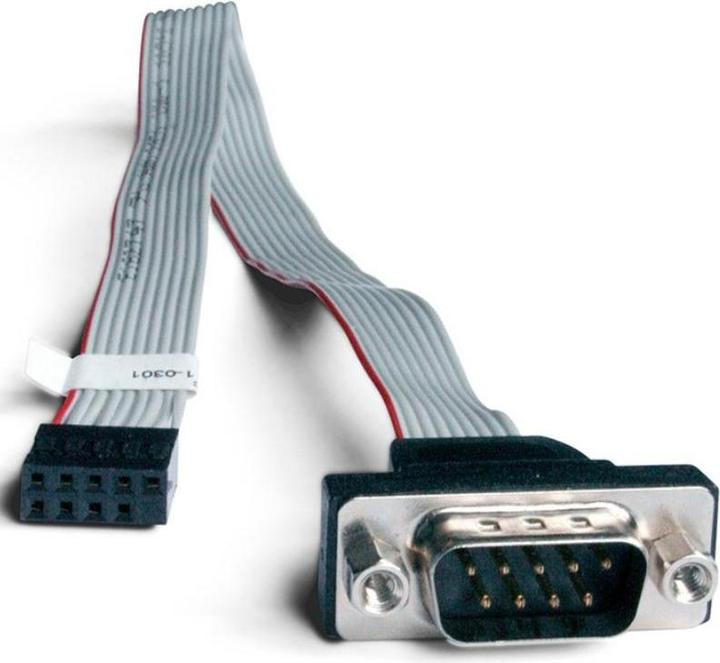

4. Shuttle H-Rs232
Shuttle H-RS232 Com-Port Serial
The Shuttle Accessory H-RS232 is an adapter for a serial interface (RS-232).
With this adapter cable, the serial interface (RS-232) can be retrofitted on some Shuttle XPCs. A Sub-D socket is installed in the back panel, which is connected to the serial interface on the motherboard.
Included in the package:
Adapter with installation instructions
Connections:
External: Sub-D, 9-pin, male
Internal: 10-Pin (2x5), female, 2.54mm pitch
Cable:
9-pin flat ribbon cable, 32cm length
Compatibility:
This accessory is compatible with the Shuttle XPCs SA76R4, SH67H3, SH67H7, SH61R4, SZ68R5, SZ77R5, SX79R5, SH81R4, SH87R6, SZ87R6, SH97R6, SH110R4, SH170R6 (Plus), SZ170R8, SZ170R8V2, SZ270R8, SZ270R9, SH310R4, SH310R4V2, SH370R6 (Plus), SH370R6V2 (Plus), SH370R8.
5. Shuttle XPC slim DS50U5
Fanless 1.3 Liter PC in Industrial Design with Integrated ULV Processor
The DS50U series includes sleek, fanless barebone PCs housed in a robust metal casing with universal connectivity options. The soldered Intel Gen12/13 ULV processor provides sufficient performance for playing 2160p/60 videos in 4K resolution. There are two digital ports for UHD displays and a traditional VGA port available. Components can be easily installed: two DDR5 memory modules, a 2.5" drive, and two M.2-2280 SSD cards fit behind the convenient case cover.
An optional 4G/5G module can be integrated into the second M.2 slot using the WWN04 adapter kit. Thanks to complete passive cooling, the system is virtually maintenance-free, suitable for 24/7 continuous operation, and also very energy-efficient. It is ideally suited for professional applications such as digital signage, POS, control, office use, or as a media PC.
6. Shuttle XPC Nano PC NC40U3, Intel Core i3-1215U, 1x HDMI, 1x DP,1xUSB-C/DP, 6x USB3.2, 1x 2.5"
The NC40U series comes with powerful and efficient Intel Core processors of the 12th generation (codename: "Alder Lake-U"). Despite its nano format with a volume of only 850 ml, it offers enormous connectivity and expansion options. It can connect up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices. Additionally, two NVMe SSD cards in M.2-2280 format and a 2.5" hard drive (up to 15 mm thick) can be installed. The NC40U series is ideal for applications such as digital signage, POS, control, office PCs, or as a media PC.
Case:
Case made of black plastic
Dimensions: 142 x 142 x 42 mm (L x W x H) = 847 ml
Weight: 0.4 kg net, 1.2 kg with packaging
Opening for Kensington Lock
Stand feet and 75 / 100 mm VESA mount included
Operating positions:
1) Horizontal
2) Vertical with stand feet
3) Behind a suitable screen with VESA mount
Operating system:
This system is delivered without an operating system. It is compatible with:
- Windows 10, 64-bit
- Windows 11, 64-bit
- Linux, 64-bit
Processor:
Model: Intel Core i3-1215U
Intel Gen12 ULV processor, codename: "Alder Lake-U"
System-on-a-chip architecture (SoC) with integrated memory and graphics controller
FCBGA1744 package - soldered directly to the motherboard
Processor cores: total of 6
- Performance cores: 2 P-cores (4 threads) with 1.2 / 4.4 GHz base/turbo frequency
- Efficiency cores: 4 E-cores with 1.2 / 3.3 GHz base/turbo frequency
Smart Cache: 10 MB
Thermal Design Power (TDP): max. 15 W
Manufacturing process: Intel 7 (10 nm)
Maximum Tjunction temperature: 100 °C
Processor fan:
Built-in fan with 4-pin connector
Supports temperature-controlled speed regulation
Integrated graphics card:
Intel UHD graphics function with 64 execution units (EUs)
Maximum dynamic graphics frequency: 1.10 GHz
Supports up to three independent displays with up to 4K/60Hz (Ultra HD 3840×2160 resolution).
Barebones
EUR295,90
Shuttle XPC Nano PC NC40U3, Intel Core i3-1215U, 1x HDMI, 1x DP,1xUSB-C/DP, 6x USB3.2, 1x 2.5"
Intel Core i3-1215U
7. Shuttle Barebone slim DL30N/16GB/Intel N100
The Shuttle XPC slim Barebones of the DL30N series are the successors to the DL20N series. These fanless slim PC barebones with an energy-efficient Intel "Alder Lake-N" processor from the 12th generation are suitable for building particularly slim PC systems with drives and operating systems, as well as for purely network-based applications in client/server environments. Two Intel 2.5G network ports provide excellent network connectivity, and the optional Shuttle accessory WWN03 allows for the installation of an LTE module for mobile internet access. The integrated graphics are based on Intel's powerful Intel UHD Graphics with hardware acceleration for 4K videos. Together with SSD storage, this slim PC operates virtually silently.
8. Shuttle XH510G S1200 H510 BLACK 180W
The Shuttle XPC slim Barebone XH510G is a 3-liter PC with a slot for single-slot PCI-Express cards. Paired with an LGA1200 Intel Core desktop processor from the 10th/11th generation, this platform is perfectly suited for applications where performance, flexibility, and compact design are required. For example, a multi-port graphics card, video grabber card, or I/O card can be installed to create a mini-PC for video wall presentations, graphic workstations, audio/video recordings, surveillance, point of sale systems, POI, as well as various network and industrial applications. Gaming is also possible.
Case:
Flat X-case type, color: black
Dimensions: 25 × 20 × 7.85 cm (L × W × H), volume: approx. 3.9 liters
Weight: 1.9 kg net, 3.2 kg gross
Open front - without cover flaps for front panel connections
Opening for Kensington Lock on the back of the device
Operating position:
(1) horizontally on the stand feet
(2) vertically with the included VESA mount
Power Supply:
External 180 W power supply (fanless)
Input: 100-240 V AC, 50-60 Hz, max. 2.5 A
Output: 19.5 V DC, max. 9.23 A, max. 180 W output power
AC plug with protective contact, approx. 1.7 m long cable
DC plug: 5.5 / 2.5 mm (outer/inner diameter)
Dimensions: approx. 167 × 82 × 25.5 mm
Operating System:
This system is delivered without an operating system. It is compatible with Windows 10, Windows 11, and Linux (64-bit).
Processor Support:
Processor socket LGA1200
Supports Intel Core i9 / i7 / i5 / i3, Pentium Gold, and Celeron processors
Supports 10th and 11th generation Intel Core processors with the codenames "Comet Lake-S" and "Rocket Lake-S" using 14 nm technology
Maximum supported processor thermal design power (TDP) = 65 W.
Up to 10 CPU cores, 20 threads, and 20 MB L3 cache
Does not support the unlock feature of Intel K-series processors.
The processor integrates the controllers for PCI-Express X16.
9. Shuttle XPC P92U Barebone
The Shuttle XPC All-in-One P92U is an all-in-one PC featuring a 19.5-inch capacitive touchscreen. An Intel "Comet Lake-U" ultra-low-voltage processor provides high computing power with low energy consumption. Thanks to its completely passive cooling system, the device operates virtually silently, requires no maintenance, and is suitable for 24/7 continuous operation. The arrangement of most ports on the underside of the case and the front's resistance to dust and splashes according to protection class IP54 make it ideal for applications in vertical markets.
Fanless and Quiet
- Passive heat pipe cooling, no fan noise
- Ideal for noise-sensitive environments
- Less dust contamination - making it virtually maintenance-free
24/7 Continuous Operation
- This device is officially approved for 24-hour continuous operation (24/7).
- Requirements:
Free air circulation around the PC
Accessible ventilation holes on the device.
If a hard drive is installed, it must also be approved by the manufacturer for 24/7 operation.
IP54 Protection Class
- The device front is protected against dust and splashes according to protection class IP54.
Case
- Color: Black or White
- Dimensions: 487 x 321 x 44 mm (WxHxD)
- 100 mm VESA mount
- Kensington lock mounting hole
- Weight: 4.29 kg net, 5.62 kg gross
Operating System
- This system is delivered without an operating system.
- It is compatible with:
Windows 11 - 64-Bit
Windows 10 - 64-Bit
Linux - 64-Bit
Touchscreen
- Screen with touch functionality for finger input
- Capacitive touchscreen with 10-point multitouch support
- Supports operation with gloves (PVC, cotton, linen)
- Does not support stylus pens
- 49.5 cm display (19.5")
- 49.5 cm / 19.5" LCD display
- Aspect ratio: 16:9 widescreen
- Resolution: 1600 x 900 = 1.4 megapixels (WSXGA/HD+)
Processor
- Model: Intel Celeron 5205U (ULV).
10. Shuttle Barebone X50V9U3, Prozessortyp: Intel Core i3-1315U

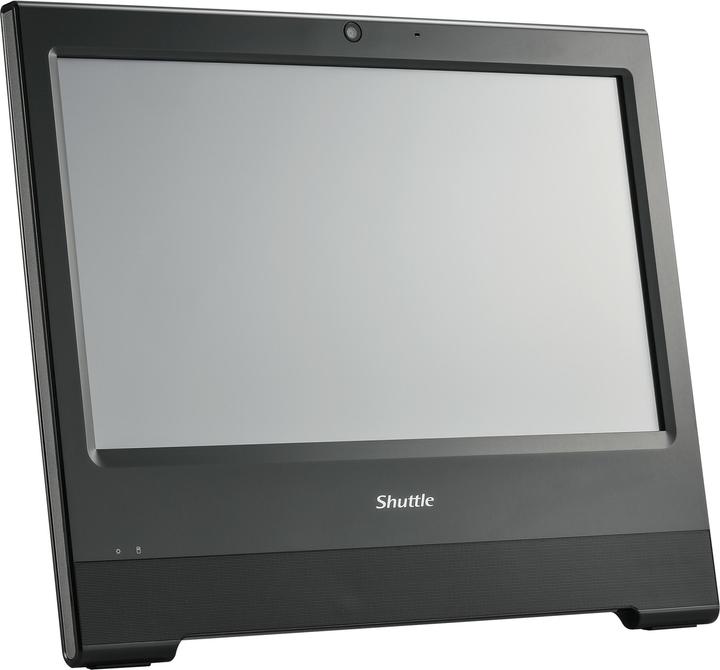

The Shuttle Barebone X50V9U3 is a powerful all-in-one PC specifically designed for POS, POI, and kiosk applications. Equipped with a pre-installed Intel Core i3-1315U processor, this barebone system offers an efficient and compact solution for various use cases. The passive cooling ensures silent operation, which is particularly advantageous in environments where noise needs to be minimized. The integrated touchscreen allows for user-friendly interaction, making the device ideal for applications that require intuitive operation. With its modern design and flexible construction, the X50V9U3 is both functional and aesthetically pleasing.
- Passive cooling for silent operation
- Integrated touchscreen for intuitive use
- Pre-installed Intel Core i3-1315U processor
- Suitable for POS, POI, and kiosk applications.
