Best selling Buttons + Switches from Bernstein
Here you’ll find the best Buttons + Switches from Bernstein. The ranking is based on the best-selling products from this brand within the category. In addition to sales volume, factors such as availability, pricing, and overall customer relevance also influence the order. For each product, we include a short description and the most important highlights from customer reviews, giving you a quick overview of the most popular Bernstein options. This page always stays fresh and updates automatically.
1. Bernstein 6502984026
Bernstein Proximity Switch KIN-E40PS/004-KLSM8
Manufacturer: Bernstein
Description: Proximity switch
Inductive Type: KIN-E40PS/004-KLSM8
Sensor Width: 26 mm
Sensor Height: 12 mm
Sensor Length: 40 mm
Mechanical Installation Condition for Sensor: non-flush
Switching Distance: 4 mm
Suitable for Safety Functions: no
Switching Function Type: Normally Closed
Switch Output Type: PNP
Electrical Connection Type: M8 Connector
Actuation Type: metallic target
Interface Type: none
Interface Type for Safety-Related Communication: none
Housing Design: Rectangular
Housing Coating: other
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Supply Voltage: 10..36 V
Voltage Type: DC
Switching Frequency: 400 Hz
With Monitoring Function for Connected Devices: no
Housing Material: Plastic
Pressure Resistant: no
Explosion Protection Category for Gas: none
Explosion Protection Category for Dust: none
Inductive proximity switches according to DIN EN 60947-5-2. They detect the presence of metallic, electrically conductive objects in their sensing field without contact. The robust sensors can be used in various industrial applications, such as in speed applications or for position detection.
2. Bernstein 6018200022
Safety locking device with door monitoring (Type 2, DIN EN ISO 14119) for securing machines that continue to run after a machine stop. Holding force FZh = 1500 Newton, number of door monitoring contacts: 1 normally open, number of locking monitoring contacts: 2 normally open, coil control voltage 24 V, with integrated auxiliary release, locking principle spring (holding current principle), SLC connection via 8-pin M12 connector, SRF connection on the right side via 5-pin M12 socket. Actuator and SRF must be ordered separately. By combining SLC and SRF, a PLE for door monitoring can be achieved.
3. Bernstein 6161000730
Suitable for high demands in industrial applications. Existing mounting holes provide the option to screw the foot switches onto the substrate. Each foot switch is equipped with four rubber feet to prevent slipping. The foot lever is made of thermoplastic. An accident protection cover made of aluminum die-cast completely shields the pedal from above and the sides, ensuring high stability with its wide base. This prevents accidental activation from falling objects from above or carelessness from the side. Due to its stability, the cover can withstand a falling weight of 20 kg from a height of 1 meter. The foot switch with linear voltage or current output allows for continuous control tasks through an analog output depending on the pedal position. Additionally, there is a programmable signal output (PNP) that activates at a specific, pre-set pedal position. The analog output is available in 0-5 V, 0-10 V, 0-20 mA, or 4-20 mA variants. This foot switch is available in a single-pedal version. Upon request, it is also available in two-pedal and three-pedal versions.
4. Bernstein Limit switch
Bernstein Limit Switch GC-SU1Z AHT
Manufacturer: Bernstein
Designation: Limit switch with cable entry
Type: GC-SU1Z AHT
Width of the sensor: 36 mm
Height of the sensor: 32.5 mm
Length of the sensor: 96 mm
Rated operating current Ie at AC-15, 230 V: 3 A
Switching function: Snap-action
Electronic output: no
Forced opening: yes
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Interface design: none
Interface design for safety-related communication: none
Enclosure design: Rectangular
Material of the enclosure: Metal
Coating of the enclosure: Powder-coated
Design of the actuating element: Pivot lever
Orientation of the actuating element: Other
Design of the electrical connection: Cable entry (metric)
With status indicator: no
Suitable for safety functions: yes
Explosion protection category for gas: none
Explosion protection category for dust: none
Ambient temperature during operation: -30 to 80 °C
Protection class (IP): IP65
The metal-encapsulated limit switch is suitable for almost any application in the field of safety applications and position detection due to its compact design. The switch offers various mounting advantages, such as screw connections with self-lifting clamping disks, captive cover screws, and an easily replaceable switching system through a snap-in mechanism. Optional versions with custom cables and connectors are also available.
EAN: 4024337024092.
5. Bernstein 6314206246
Bernstein Magnetic Switch MAA-0612-F-1
Manufacturer: Bernstein
Designation: Magnetic Switch
Type: MAA-0612-F-1
Width of the Sensor: 12 mm
Height of the Sensor: 86 mm
Length of the Sensor: 12 mm
Explosion Protection Category for Gas: none
Explosion Protection Category for Dust: none
Housing Design: Smooth Cylinder
Switching Distance: 7 mm
Suitable for Safety Functions: no
Bernstein Magnetic Switch MAA-0612-F-1: further details
Electromechanical magnetic switches are based on reed contacts, which change their electrical behavior when a triggering magnet approaches. The switches are suitable for all currents and are available as normally closed, normally open, and changeover switches, as well as in bistable versions.
EAN: 4024337008382.
6. Bernstein Magnetic switch
The magnetic switch from Bernstein is an electromechanical device based on reed contacts. These switches respond to the approach of an actuating magnet, altering their electrical behavior. They are versatile and offer various switching functions, including normally closed, normally open, and changeover. Additionally, they are available in a bistable version, providing extra flexibility in application. The all-current compatible features make this magnetic switch a reliable choice for various electrical applications. Manufactured in Hungary, this switch offers high quality and durability, suitable for a range of industrial and private use cases.
- Based on reed contacts for precise switching operations
- Available as normally closed, normally open, and changeover
- Bistable version for flexible applications.
7. Bernstein 6083000240
The IN62 and IN65 series are standard switches according to DIN EN 50047. Due to their dimensions and the variety of contacts and actuators, the switches can be used in almost any industrial application for reliable position monitoring. The metallic actuator latching and mounting clip make the product particularly robust and powerful.
8. Bernstein 6075685121
Contactless RFID safety sensor for monitoring movable protective devices such as flaps, doors, and safety covers. The SRF achieves PL e and SIL CL 3. It can be used in a standalone application. Connection via 25 cm cable with 5-pin M12 connector.

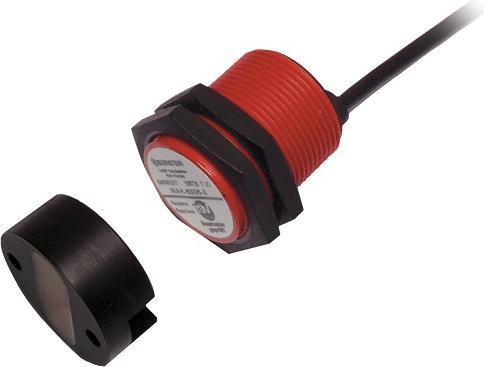

9. Bernstein 6490653311
The coded magnetic switch from Bernstein, model 6490653311, is a reliable solution for safety applications. It features a normally closed and a normally open contact in the safety circuit, allowing for precise control. The housing is made of robust plastic, which supports the durability of the product. Equipped with a 6-meter long cable, this switch offers flexibility in installation. It is specifically designed for use in safety applications according to DIN EN 14119 and can be combined with a suitable evaluation unit, such as the BERNSTEIN MÜZ. This magnetic switch is ideal for applications where safety and reliability are of utmost importance.
- Coded magnetic switch for enhanced safety
- Suitable for safety applications according to DIN EN 14119
- Contains 1 normally closed and 1 normally open contact in the safety circuit
- Durable plastic housing with 6 m cable.
10. Bernstein 6019261010
The hinge switch SHS combines a hinge and a safety switch into a single functional and mounting unit. It offers full flexibility in installation, connection, and adjustment. Since the hinge switch is directly integrated into the protective device, it provides enhanced tamper protection. The SHS can be used on all doors, hoods, and flaps and can be mounted on the right or left. The switching point of the safe hinge switch can be freely adjusted throughout the entire pivot range from 0° to 180°. With a once adjustable and subsequently unchangeable switching point, the SHS offers maximum tamper protection.
A safe, complete solution for rotating protective devices with hinges, encompassing both hinge and safety switch. Thanks to its IP67 protection class, it is suitable for use in areas with heavy contamination. High tamper protection as it is directly connected to the protective device. Load capacities of up to 1000N. The switching point can be freely adjusted from 0° to 180°. Easy mounting on profiles. Systems can be mounted on the right or left. Low maintenance requirements. Zinc die-cast hinge with integrated safety switch in a single housing.
