Best Hager products in the Electronics supplies + Casing category

On this page you'll find a ranking of the best Hager products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. Hager HAG VE112PN Vector IP65, 1x12 PLE, UV-stable, LE

The Hager VE112PN Vector IP65 is a robust installation distribution board specifically designed for use in demanding environments. With a housing made of UV-resistant polycarbonate, this distributor not only provides protection against weather influences but also meets the requirements of the standards DIN EN 60670-24 and DIN 43871. The distributor is suitable for the installation of devices up to 63 A and supports a rated voltage of AC 400 V/50 Hz. The thoughtful design includes a hat profile rail made of galvanized steel sheet and pre-formed entries for metric cable entries, allowing for flexible installation. The clear door is flush-mounted and can be hinged on either the right or left side, providing additional flexibility during installation. The Hager VE112PN is thus a reliable solution for the distribution of electrical energy in various applications.

- UV-resistant polycarbonate housing
- Suitable for devices up to 63 A
- Pre-formed entries for metric cable entries
- Flush-mounted clear door, sealable and lockable.

2. Hager VU36NWB

The Hager VU36NWB is a versatile multimedia base designed for installation in electrical applications. With a robust construction and thoughtful design, this product provides a reliable solution for integrating multimedia components. The base is suitable for mounting on a DIN rail, allowing for easy installation. It comes with two mounting plates that enable flexible arrangement of devices. The VU36NWB is ideal for use in residential and commercial properties where efficient and tidy cabling is required. The use of high-quality plastic ensures durability and resilience, while the compact design allows for space-saving installation. This multimedia base is an essential accessory for modern electrical systems.

- Suitable for mounting on a DIN rail
- Includes two mounting plates for flexible arrangement
- Robust construction made of high-quality plastic.

3. Hager TEH GMSET019016 Connection set HDMI front vw

Tehalit Connection Set GMSET019016

Manufacturer: Tehalit
Description: HDMI front connection set
Type: GMSET019016
Design: Set
Print/Labeling: none
Scannable Symbol/Barrier-free: no
Usage: other
Suitable for bus system switch coupling: no
Mounting type: screw fastening
Control window/Light outlet: no
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: matte
Antibacterial treatment: no
Color: white
RAL number (similar): 9016
With labeling field: yes
With interchangeable lens/symbol: no
Suitable for protection class (IP): IP00
Impact resistance: IK07
Width: 103 mm
Height: 80 mm
Depth: 50 mm

Tehalit Connection Set GMSET019016: additional details
Multimedia connection set for HDMI front terminal in traffic white. Multimedia connection set for floor channels with a top width of 80 mm. Consists of a mounting frame Multimedia Type 301, HDMI 1.4 connection cable, 0.2 m cable whip, socket/socket design device box for accommodating communication connection sockets, for floor channel with front terminal device mounting. Central plate for tool-free mounting on mounting frame Multimedia Type 301. Frame cover for floor channel, cut-edge matching to the channel top. Integrated labeling field for mounting on the device box, compatible with 9 mm labeling tapes. Modularly stackable with a combination spacing of 71 mm.

4. Hager HAG VE103SN Vector IP65, 3 PLE, UV-stable, o. LE

Small distribution board, Vector, APV, IP65, 3PLE, UV-stable, without cable entry. Installation small distribution board made of polycarbonate, UV-resistant, according to DIN EN 60670-24, according to DIN 43871. For the installation of devices up to 63 according to standard DIN 43880 with a mounting depth of 70 mm or 85 mm, rated voltage AC 400 V, 50 Hz. Consisting of a plastic base with a hat profile rail made of galvanized steel sheet, pre-formed for metric cable entry bushes at the top, bottom, and side pre-forming for connection bushes to connect two or more distributors side by side. Top part with a 46 mm device slot. Transparent door flush with the front, can be hinged on the right or left, sealable, lockable, and suitable for mounting on a distributor. VE103SN.

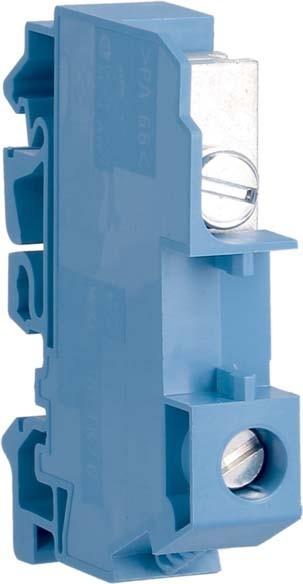

5. Hager KXA16ND

The Hager KXA16ND is an N-terminal block designed for use in electrical installations. It allows for a safe separation of neutral conductors and is suitable for cable cross-sections of up to 16 mm². With a rated voltage of 400V and a maximum current of 62A, it provides reliable performance in various applications. The terminal block is made of robust polyamide, which enhances its durability and resistance to environmental influences. The screw technology ensures an easy and secure connection, while the compact design allows for seamless integration into existing systems. This terminal block is an essential accessory for professionals in the field of electrical engineering who value quality and safety.

- Made from durable polyamide for increased resilience
- Suitable for cable cross-sections of up to 16 mm²
- Maximum rated voltage of 400V and current of 62A
- Easy installation through screw technology.

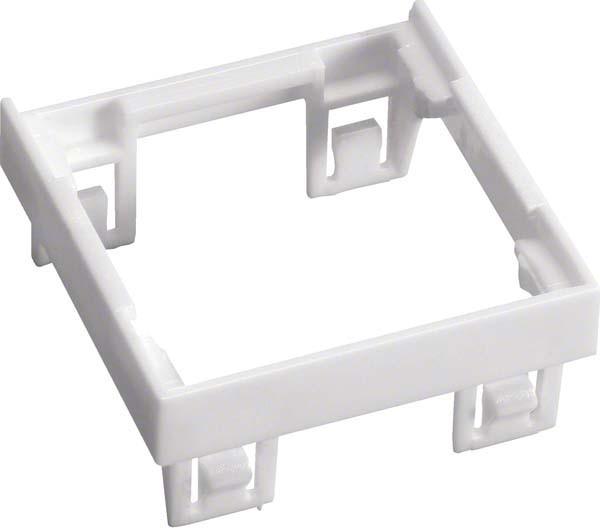

6. Hager GBVDMR45

The Hager GBVDMR45 adapter frame is a practical solution for mounting data technology panels. It is made from high-quality polyamide and features a simple white design. With a size of 45x45 mm, this adapter frame allows for easy integration of mounting plates into existing systems. The snap-in fastening ensures a straightforward installation, while compliance with RoHS regulations highlights the product's environmental friendliness. The adapter frame is specifically designed for use with Rastec panels and provides a reliable and durable solution for various applications in the electronics field. It is ideal for use in data and multimedia modules and contributes to the efficient organization of electrical installations.

- Made from robust polyamide for durability
- Snap-in fastening for easy installation
- RoHS compliant for environmentally friendly use
- Compatible with Rastec panels for versatile applications.

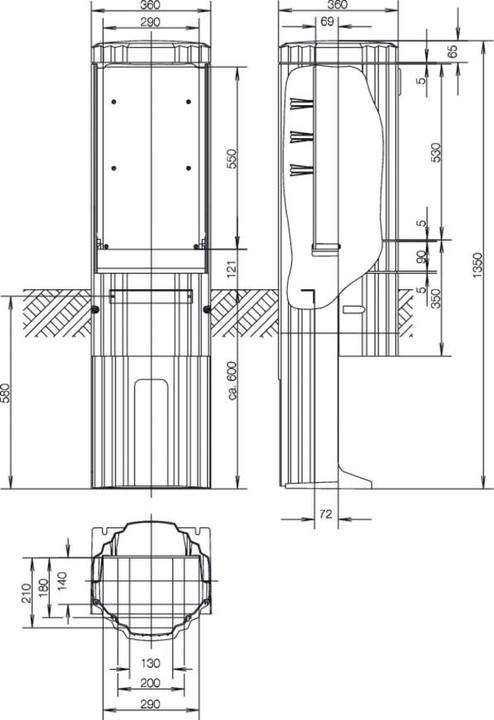

7. Hager HAG ZAL135P distribution column series 135 round with MP

Distribution column series 135 round, with MP 550x290mm, hinged door, 1350x360mm. Round distribution column, protection class IP 44, with underground base, made of glass fiber reinforced polyester FS 833.5 according to DIN EN 14598 with recyclate. Profiled housing in ribbed design. Self-extinguishing mounting plate made of plastic, removable hinged doors, single locking with profile half-cylinders, double locking possible. Ventilation is provided through labyrinth-shaped ventilation channels and is protected against the intrusion of foreign objects. The underground base and distribution column form a single unit. A floor grid is recommended. To prevent condensation, the base should be filled with base filler up to the height of the cable mounting rail on the inside.

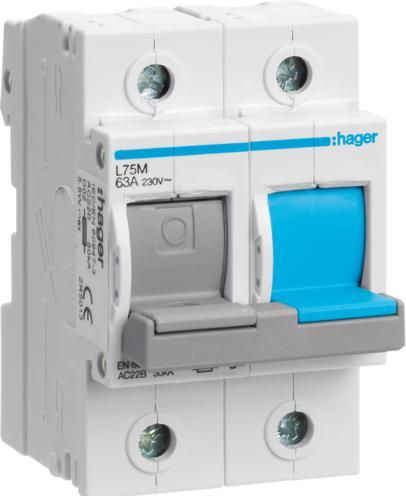

8. Hager HAG L75M Switch-fuse unit,D0,1P+N,63A

Load disconnect switch for fuses D02 E18 63A AC400V 1-pole N DIN rail. D0 fuse load disconnect switch, two-pole switchable, single-phase neutral conductor, for D02 fuses, for DIN rail mounting. Equipped with a monitoring system for fuse failure via LED. Tool-free plug-in technology provides permanent contact pressure from the factory. No contact loosening during operation. Lockable with a padlock and sealable. Removable fuse plug with finger protection. Complies with device standard IEC 60947-3. L75M.

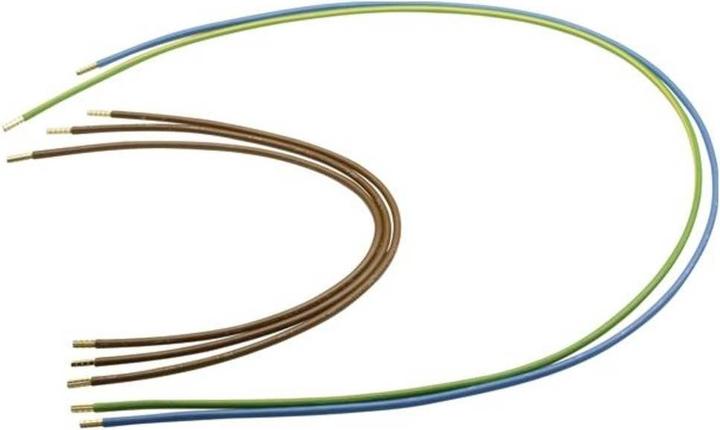

9. Hager HAG Y89M 10qmm wiring harness outgoing 5p

Outgoing cable harness, universal Z, 10 mm², 5P., L1, 2, 3, N, PE = 575, 575, 575, 1200, 1250, H/H. Meter cabinet solution cabinet housing according to DIN VDE 0603/1, dimensional standard DIN 43 870 for surface-mounted, flush-mounted, or partially recessed installation. Consisting of a cabinet with a door made of powder-coated, baked-on, stable profiled 1 mm thick steel sheet. Interior lining completely made of plastic. Cable entries at the top and bottom through built-in plastic flange plates. Rear pre-forming in the plastic part. Busbar passages as tool-free side openings in the lower area as a possibility for busbar connections of different cabinets or in conjunction with a cable connection box and connection set. In addition to the passage in the NAR, there are also openings in the area of the AAR (for construction heights of 1100 and 1400 mm) and RfZ (for construction height of 1100 mm). Door flush with the front with internal, adjustable hinges, optionally hinged on the right or left with a 110° opening angle. Door lock with pre-locking. Door lock interchangeable with other locks. Cabinets can be flanged side by side and stacked on top of each other. Cabinet size 1 to 5 fields with 72 to 540 space units (PLE). Note: The main line must be introduced from below or the side into the lower connection area of the meter cabinet and connected there according to VDE-AR-N 4100:2019-04. Height: __ mm (1100 mm or 1400 mm) Width: __ mm Depth: 205 / 160 mm, RAL color: 9010 Protection class 44, protection class II Rated current of the busbar system 250 A Execution according to VDE-AR-N 4100:2019-04 Metering system for __ meter place(s). According to the technical connection conditions (TAB) of the VNB __ for: __ Electronic household meters (eHZ) or __ meters with 3-point fastening (3HZ). __ for supply systems with household consumption max. 63 A (10 mm²) according to DIN 18015-1 ( __ apartments, __ general, __ reserve, __ heat pump) __ for continuous current applications max. 32 A (10 mm²) according to VDE-AR-N 4100:2019-04.

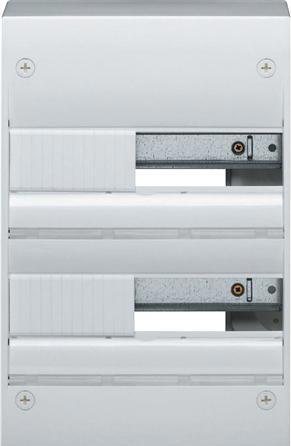

10. Hager Gruppetavle GD213F 2 x 13 moduler med PE-klemme HxWxD: 375 x 250 x 103 mm IP 30, Hvid RAL 9010

Hager Gruppetavle GD213F 2 x 13 moduler med PE-klemme HxWxD: 375 x 250 x 103 mm IP 30, Hvid RAL 9010 (Housing)
Electronics supplies + Casing
EUR64,90

Hager Gruppetavle GD213F 2 x 13 moduler med PE-klemme HxWxD: 375 x 250 x 103 mm IP 30, Hvid RAL 9010

Housing
