Best selling Network adapters from Moxa
On this page you’ll find a ranking of the best Network adapters from Moxa. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Moxa EDR-810
The EDR-810 is a highly integrated industrial multiport security router with firewall/NAT/VPN and managed layer 2 switch functions. Designed for Ethernet-based security applications in critical remote control or monitoring networks, it provides an electronic security perimeter to protect critical cyber assets, including pump-and-treat systems in water stations, DCS systems in oil and gas applications. and PLC/SCADA systems in factory automation. The EDR-810 series includes the following cyber security features:
The EDR-810's "WAN Routing Quick Setup" provides users with an easy way to set up WAN and LAN ports to create a routing function in four steps. In addition, the EDR-810's "Quick Automation Profile" provides engineers with an easy way to configure the firewall filter function with common automation protocols, including EtherNet/IP, Modbus TCP, EtherCAT, FOUNDATION Fieldbus and PROFINET. Users can easily create a secure Ethernet network with a single click via a user-friendly web interface, and the EDR-810 is capable of comprehensive Modbus TCP packet inspection. Wide temperature range models are also available that operate reliably in hazardous environments from -40 to 75 °C.
2. Moxa NPort 5110, Ethernet Serial Device Server (1-port RS-232)
The industrial NPort 5110 device server is suitable for the immediate integration of a serial device into a network. The compact size of the server makes it a good choice for connecting devices such as card readers and payment terminals to an IP-based LAN.
Customizable resistors, management via web, Telnet, or Windows utility, support the following network protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP.
3. Moxa Industrial Full Motion
The Moxa VPORT 464-T is an industrial encoder designed for reliable data collection and transmission in demanding environments. With a robust metal housing that complies with IP30 protection standards, this device offers protection against dust and moisture. It supports four independent encoder channels with a 24-VDC power supply and enables precise signal transmission over long distances of up to 1.2 km through RS-422/485 differential line driver outputs. The operating temperature range of -40 °C to 75 °C makes the VPORT 464-T ideal for industrial automation applications under extreme conditions. Its compact dimensions and lightweight design allow for space-saving installation, while the integrated LED indicators ensure easy monitoring of operational status. The encoder supports various types of encoders and offers a configurable resolution of up to 65,536 pulses per revolution, making it a flexible solution for different applications.
- Robust metal housing with IP30 protection for dust and moisture resistance
- Supports four independent encoder channels with 24-VDC power supply
- Operating temperature range of -40 °C to 75 °C for extreme environments
- Configurable resolution of up to 65,536 pulses per revolution
- Easy integration into PLC systems and industrial networks with low signal jitter.
4. Moxa 45MR-2601 - Module for the ioThinx 4500 Series, 16 DOs, 24 VDC, source, -20 to 60C operating
The 45MR-2601 module is part of Moxa's ioThinx 4500 series and provides a reliable solution for digital outputs in industrial applications. With 16 digital output channels requiring a supply voltage of 24 VDC, this module is ideal for controlling and automating processes. It is designed for operation in a temperature range of -20 to 60 °C, making it suitable for various environments. Installation is straightforward on a DIN rail, and connections are made via spring Euroblock terminals. The module supports both standard digital outputs and pulse outputs for the first four channels, offering additional flexibility. With a high insulation rating of up to 3 kVDC, it is also well protected against electrical disturbances.
- Operating temperature range of -20 to 60 °C for versatile applications
- Supports pulse outputs for the first four channels
- High insulation of 3 kVDC for enhanced safety
- Easy mounting on DIN rail for hassle-free installation
- Certified to various standards for electromagnetic compatibility and safety.
Network adapters
EUR219,–
Moxa 45MR-2601 - Module for the ioThinx 4500 Series, 16 DOs, 24 VDC, source, -20 to 60C operating
5. Moxa UPort 1110 USB Serial Converter Cable
The USB-to-Serial Converter UPort 1110 is a convenient addition for laptops without a serial port. It converts USB to RS-232 and is compatible with both new and older RS-232 devices.
Supported operating systems: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2012 (x64), Windows Embedded CE 5.0/6.0.
6. Moxa 45MR-3800-T - Module for the ioThinx 4500 Series, 8 AIs, 0 to 20 mA or 4 to 20 mA, -40 to 75C
Module for the ioThinx 4500 series, featuring 8 analogue inputs with a range of 0 to 20 mA or 4 to 20 mA, and an operating temperature of -40 to 75°C.
Input/output interface:
- Analogue input channels: 8
- Isolation: 3 kV DC or 2 kV RMS
Analogue inputs:
- Connection: Spring-Euroblock-Terminal
- I/O mode: Current
- I/O type: Differential
- Resolution: 16 bit
- Input range:
- 0 to 20 mA
- 4 to 20 mA
- 4 to 20 mA (with burn-out detection)
- Accuracy:
- ±0.1% FSR @ 25°C
- ±0.3% FSR @ -40 and 75°C
- Sampling rate:
- All channels: 100 samples/sec
- Per channel: 12.5 samples/sec
- Single channel: 100 samples/sec
- Input impedance: 120 Ohm
Power consumption:
- System power: 197.3 mA @ 3.3 V DC
Physical characteristics:
- Housing: Plastic
- Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
- Weight: 79.8 g (0.176 lb)
- Installation: DIN rail mounting
- Stripping length: I/O cable, 9 to 10 mm
- Wiring: 18 to 24 AWG
Ambient conditions:
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature (including packaging): -40 to 85°C (-40 to 185°F)
- Relative humidity: 5 to 95% (non-condensing)
- Altitude: Up to 4000 metres
Standards and certifications:
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS:
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
- IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
- IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
- IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
- IEC 61000-4-6 CS: 3 V
- IEC 61000-4-8 PFMF
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Safety: UL 61010-2-201
- Hazardous areas: ATEX, Class I Division 2
Declaration:
- Environmentally friendly product: RoHS, CRoHS, WEEE
MTBF:
- Time: 2,085,426 hours
- Standards: Telcordia SR332.
Network adapters
EUR609,–
Moxa 45MR-3800-T - Module for the ioThinx 4500 Series, 8 AIs, 0 to 20 mA or 4 to 20 mA, -40 to 75C
7. Moxa 45MR-4420-T - Module for the ioThinx 4500 Series, 4 AOs, 0 to 10 V or 0 to 20 mA or 4 to 20 mA
Moxa's advanced controllers and I/O products simplify the realization of complex IIoT applications such as energy management, factory machine management, transportation management, and remote asset management through expandable communication and high-performance data acquisition and control capabilities. Use the ioThinx 4500 Series Power Calculator to determine how many power modules are needed for your application.
Module for the ioThinx 4500 Series, 4 AOs, 0 to 10 V or 0 to 20 mA or 4 to 20 mA, -40 to 75°C operating temperature.
Input/Output Interface
- Analog Output Channels: 4
- Isolation: 3 kVDC or 2 kVrms
- Analog Outputs:
- Connector: Spring-type Euroblock terminal
- I/O Mode: Voltage/Current
- Output Range: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA
- Resolution: 12-bit
- Accuracy:
- ±0.1% FSR @ 25°C
- ±0.3% FSR @ -40 to 75°C
- Load (Current Mode):
- Internal power: 500 ohms (max.)
- Load (Voltage Mode): 1000 ohms (min.)
- Power Consumption:
- System Power: 44 mA @ 3.3 VDC
- Field Power:
- 220.2 mA @ 12 VDC
- 122.3 mA @ 24 VDC
Physical Characteristics
- Housing: Plastic
- Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
- Weight: 79 g (0.175 lb)
- Installation: DIN-rail mounting
- Strip Length: I/O cable, 9 to 10 mm
- Wiring: 18 to 24 AWG
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: Up to 4000 meters
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS:
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
- IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
- IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
- IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
- IEC 61000-4-6 CS: 3 V
- IEC 61000-4-8 PFMF
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Safety: UL 61010-2-201.
Network adapters
EUR699,–
Moxa 45MR-4420-T - Module for the ioThinx 4500 Series, 4 AOs, 0 to 10 V or 0 to 20 mA or 4 to 20 mA
8. Moxa 45MR-3810 - Module for the ioThinx 4500 Series, 8 AIs, -10 to 10 V or 0 to 10 V, -20 to 60C
The 45MR-3810 module from Moxa is a highly advanced device specifically designed for the ioThinx 4500 series. It features eight analog inputs that support voltage ranges of -10 to 10 V as well as 0 to 10 V. With an operating temperature range of -20 to 60 °C, this module is suitable for a variety of industrial applications. Its robust construction and the option for DIN rail mounting make it a flexible solution for integration into existing systems. The module is equipped with a high accuracy of ±0.1 % FSR at 25 °C and offers a sampling rate of up to 100 samples per second for all channels. Additionally, the isolation of up to 3 kV DC ensures safe usage in demanding environments. The use of spring Euroblock terminals allows for easy and reliable wiring.
- Operating temperature range of -20 to 60 °C for versatile applications
- High accuracy of ±0.1 % FSR at 25 °C
- Sampling rate of up to 100 samples per second for all channels
- Isolation of up to 3 kV DC for enhanced safety
- Easy wiring through spring Euroblock terminals.
Network adapters
EUR469,–
Moxa 45MR-3810 - Module for the ioThinx 4500 Series, 8 AIs, -10 to 10 V or 0 to 10 V, -20 to 60C

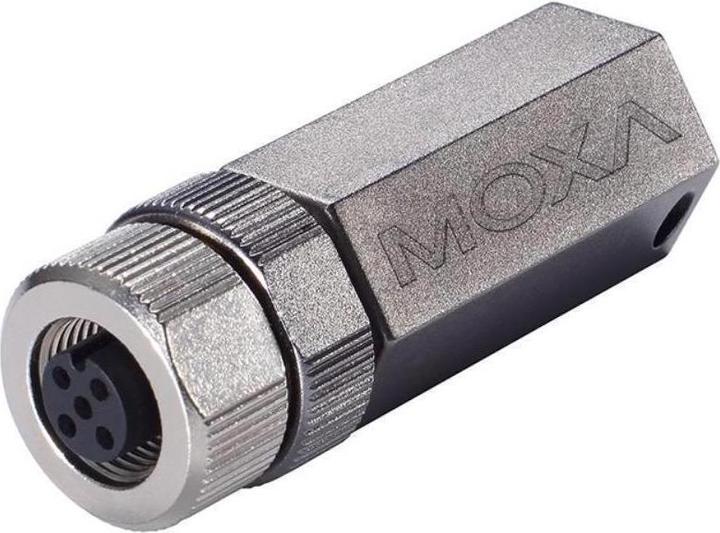

9. Moxa ABC-01-P-M12-CT-T - Configuration backup and restoration tool with M12 connector for s ToughNet
The ABC-01-P-M12 is designed for system backup and restoration to enhance maintenance efficiency and reduce system downtime in railway applications, including rolling stock and wayside installations. The ABC-01-P-M12 Automatic Backup Configurator tool can be used to save and load the configuration of Moxa’s ToughNet managed Ethernet switches and wireless access points, bridges, and clients through the RS-232 console port. The ABC-01-P-M12 can be continuously plugged into Moxa’s Ethernet switches and wireless access points, bridges, and clients while the devices are operating, making it easier to back up system parameters and manage configurations. With the ABC-01-P-M12, you can quickly configure a replacement switch of the same model.
The ABC-01-P-M12 is compliant with mandatory sections of EN 50155, covering operating temperature, surge, ESD, and vibration, as well as conformal coating, making it suitable for a variety of industrial applications.
Interface
Connectors: RS-232 M12 port
Basic Operation
Storage Capacity: 64 KB
Power Requirements
Input Voltage: 3 to 5 VDC, power input via RS-232 RTS
Physical Characteristics
Housing: Aluminum
IP Rating: IP67 protection
Dimensions: 55 mm x Ø20 mm (2.17 in x Ø0.79 in)
Weight: 35 g (0.08 lb)
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95 % (non-condensing)
Altitude: 2000 m
Standards and Certifications
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 20 V/m (80 MHz to 1 GHz)
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
Rail Traffic: (for plug-in installations)
EN 50155, EN 50121-4, EN 45545-2
This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard.
Network adapters
EUR239,–
Moxa ABC-01-P-M12-CT-T - Configuration backup and restoration tool with M12 connector for s ToughNet
RS-232
10. Moxa MIINEPORT E1 - Embedded device server for TTL devices, drop-in module, 10100M with RJ45 connect
Introduction
The MiiNePort E1 embedded device servers from Moxa are designed for manufacturers looking to enhance their serial devices with sophisticated network connectivity while minimizing integration efforts. The MiiNePort E1 is based on Moxa's second-generation SoC, MiiNe, which supports 10/100 Mbit/s Ethernet, serial baud rates of up to 921.6 Kbit/s, a versatile selection of ready-to-use operating modes, and requires minimal power. Utilizing Moxa's innovative NetEZ technology, the MiiNePort E1 can quickly convert any device with a standard serial interface into an Ethernet-enabled device. Additionally, the MiiNePort E1 is the size of an RJ45 connector, making it easy to integrate into virtually any existing serial device.
Moxa's Second-Generation SoC
The MiiNe has been developed to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E1, which uses the MiiNe for its SoC, is one of the smallest embedded device servers in the world and has the lowest power consumption of all similar products. The MiiNe features the following:
- Designed for 1- or 2-port serial-to-Ethernet applications
- Utilizes a 32-bit Arm-7 core
- Employs Moxa's own advanced UART technology
- Integrated 2 MB Flash and 4 MB SDRAM memory
NetEZ Technology
Moxa's NetEZ technology makes the MiiNePort E1 one of the most user-friendly embedded device servers, as it promises ease of use with minimal integration effort. Moxa's NetEZ technology provides manufacturers of serial devices with a range of powerful tools for integrating Ethernet capability into serial devices. These tools include EXTrigger, MCSC (multi-channel serial communication), Serial Communication Mode (SCM), and AutoCFG. With EXTrigger...
Network adapters
EUR90,90
Moxa MIINEPORT E1 - Embedded device server for TTL devices, drop-in module, 10100M with RJ45 connect
RJ45
