Best selling Network antennas from Link
On this page you'll find a ranking of the best Link products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Link WLO-5775-12 - WLO-5775-12 - Omni antenna 5.8G 12dBi
WLO-5775-12 - Omnidirectional Antenna 5.8G 12dBi
The 5.8G Omni 12dBi antenna is an omnidirectional type that significantly enhances signal range and strength in a spherical pattern. It comes with a mounting kit that includes high-quality brackets, nuts, screws, and washers. It can be used to cover 360 degrees.
The signal range is approximately 1200 to 1500 m. The connector type is N-socket, please choose N-plug cable assemblies. It is highly recommended to use low-loss cables.
- Frequency: 5725-5850 MHz
- Polarization: Vertical
- Gain: 12 dBi
- Beamwidth degrees vertical & horizontal: Hor. 360°/vert. 7°
- SWR: ≤ 1.5:1
- Impedance: 50 Ohm
- Length: H 910 mm
- Weight: 670 g
- Connection: N-type/socket.

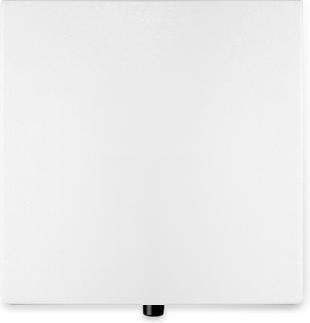

2. Link 312678 - WLAN Outdoor Panel Antenna, 14 dbi, 1.7-2.1 GHz, 3G, 3.5G, HSDPA Out
Wi-Fi Link - WLAN Outdoor Panel Antenna, 14 dBi, 1.7-2.1 GHz, 3G, 3.5G, HSDPA
The panel antenna extends the range of your client or 3G router in a single plane. The antenna is particularly suitable for point-to-point connections, making it possible to better reach more distant networks.
The beamwidth is 20 degrees in the horizontal and 20 degrees in the vertical. The antenna is also suitable for outdoor use.
The connector type is N socket (N female).
The package includes mounting materials for the antenna.
Technical Specifications
- Frequency: 1710 - 2170 MHz
- Gain: 14 dBi
- Polarization: Vertical
- Beamwidth:
- Horizontal: 20°
- Vertical: 20°
- VSWR: ≤ 1.5:1
- Impedance: 50 Ohm
- Dimensions: L 239 x W 239 x H 30 mm
- Weight: 800 g
- Housing Design: Water-resistant
- Radome Color: White
- Radome Material: ABS
- Temperature Range: -30° to +75°C
- Storage Temperature: -45° to +75°C
- Connection: N / female.
Network antenna
EUR48,90
312678 - WLAN Outdoor Panel Antenna, 14 dbi, 1.7-2.1 GHz, 3G, 3.5G, HSDPA Out
3G
3. Link WLP-5550-16 - Wireless LAN Panel Antenna 5.5 GHz, 16 dBi for 802.11a/g
Wireless LAN Panel Antenna 5.5 GHz, 16 dBi for 802.11a/g with N-Connector
The 16 dBi 5.5 GHz panel antenna is a powerful 802.11a Wi-Fi panel antenna designed for the 5.5 GHz ISM band. It is a high-quality "cell site" antenna, particularly suitable for service providers operating in the 5.5 GHz ISM band.
This antenna is especially ideal for point-to-point connections, allowing different LANs to be interconnected between buildings using two antennas.
The beam width is 16 degrees in both the horizontal and vertical planes. It is primarily designed for outdoor use. The connector type is an N-connector.
The package includes mounting materials for the antenna.
Technical Specifications:
- Frequency: 5425 - 5575 MHz
- Gain: 16 dBi
- Polarization: Vertical
- Beam width in degrees:
- Horizontal: 16°
- Vertical: 16°
- VSWR: ≤ 1.5:1
- Impedance: 50 Ohm
- Dimensions: L 263 x W 193 x H 42 mm
- Weight: 1050 g
- Connector: N-connector
Applications:
- 5.5 GHz ISM band
- Wireless bridges
- Backhaul applications
- IEEE 802.11a
- Wi-Fi systems
- Point-to-point systems
- Point-to-multipoint systems
- Long-range directional applications
Delivery includes:
- 1x 5.5 GHz Outdoor Panel Antenna 16 dBi
- Mounting materials.
