Network antenna
−12%
only 2 of 2 remaining on sale
EUR261,70 was EUR296,92
Poynting Antennas - 5G/LTE - Automotive/Marine - A-MIMO-0004-V1-17-B - Wi-Fi - black - SMA (M) - 3.56d
4G, GPS, Wi-Fi
Best selling Network antennas from Poynting
This page always stays fresh and updates automatically.
1. Poynting Antennas - 5G/LTE - Automotive/Marine - A-MIMO-0004-V1-17-B - Wi-Fi - black - SMA (M) - 3.56d
Poynting A-MIMO-0004-V1-17-B 4x 4G/5G/LTE 2x WLAN 1x GPS Combo Antenna, IP69 Outdoor, 21dBi max. 617 - 7200MHz, 2m SMA(m), black The MIMO-4-17 is a 7-in-1 high-performance multi-frequency antenna in a single housing. The antenna features four cellular antennas, two Wi-Fi antennas, and one GPS/GLONASS antenna. The four cellular MIMO antennas provide broadband coverage from 617 to 6000 MHz, thus covering the current LTE/4G and 5G bands for future-proof implementation. The ultra-broadband performance of the cellular antennas allows for use with various operators and technologies and is ready for future mobile technologies up to 6 GHz for 5G applications as well as for Wi-Fi applications from 5 to 6 GHz. The antenna also includes two dual-band Wi-Fi antennas that simultaneously provide 2.4 GHz and 5 to 7.2 GHz on each antenna for 2x2 MIMO capability. The MIMO-4-17 outperforms most competitors, as significant attention was paid to the design during the development of this high-performance antenna. The radiation patterns of all radiating elements offer an excellent balance between omnidirectionality, pattern diversity, and good radiation characteristics at the desired height. This is an important criterion for the transport and marine market for which the antenna was specifically designed. Main applications include utility/industrial vehicles, shipping, M2M, and other IoT systems that utilize a wide range of radio technologies while being future-proof across the broad frequency band. Delivery includes: - Antenna in black (2m cable permanently installed) - Ø25 threaded stud (up to 70 mm clamping thickness), mast/wall mounting angle, and adhesive for surface mounting - 2 x RP-SMA(m) to SMA(f) adapters Highlights: - 7-in-1 high-performance multi-frequency vehicle antenna - Ultra-broadband coverage from 617 to 6000 MHz for...
2. Poynting 43081 - A-PUCK-0002-V2-01-W white, MIMO 5GLTE IoT vehicle antenna, 2x 5GLTE 698-
The new PUCK series from Poynting offers a low-profile antenna designed for use in the IoT/M2M, smart meter, smart utilities, transport, shipping, and agriculture markets. The PUCK-2 consists of a 2-in-1 antenna system housed in a single enclosure and features 2x2 MIMO 5G/LTE antennas that provide broadband coverage from 617 to 6000 MHz, covering current LTE/4G and 5G bands for future-proof implementation. The ultra-broadband performance of the mobile antennas allows for use with various operators and technologies and is ready for future mobile technologies up to 6 GHz for 5G applications. The PUCK outperforms many competitors due to the careful design of this high-performance antenna. The radiation patterns of all radiating elements offer an excellent balance between omnidirectional characteristics, pattern diversity, and good radiation properties at the desired height, which is often overlooked in such a small antenna. Despite its compact size, this antenna delivers outstanding performance, especially in the higher frequency bands where performance is critical for 5G and LTE throughput and connection stability. This antenna is designed to connect both 5G/LTE ports to the router to ensure optimal performance. Please consider other derivatives of the PUCK series that may be better suited for a SISO application.
Highlights
- 2-in-1 5G high-performance multi-frequency antenna
- Antenna supports Private 5G/5G/4G/3G/2G/Wi-Fi/LoRa/Bluetooth
- 5G (2x2 MIMO)
- Ultra-broadband coverage from 617 - 6000 MHz for mobile networks
- Robust, vandal-resistant, and waterproof (IP 69K)
- Ideal for transport, shipping, and IoT/M2M applications
- Ultra-versatile mounting options for easy installation
Delivery includes
- Antenna (2m cable permanently installed)
- Mounting kit.
Network antenna
EUR72,90
Poynting 43081 - A-PUCK-0002-V2-01-W white, MIMO 5GLTE IoT vehicle antenna, 2x 5GLTE 698-
2G, 3G, 5G, Lora
3. Poynting A-XPOL-0002-V3-03
A-XPOL-0002-V3-03 - Cross-polarized, unidirectional LTE antenna
The XPOL-2-5G is Poynting's third generation of this highly popular cross-polarized (XPOL) mobile band 2x2 MIMO antenna. The antenna housing looks almost identical to that of the second generation but has been completely redesigned internally. Poynting has utilized advanced metamaterial technology, incorporating artificial magnetic conductors (AMC) and a new patented radiator configuration that demonstrates exceptional improvements in bandwidth and gain. The radiation patterns of this antenna are exceptionally well-controlled, further enhancing the antenna's performance.
The XPOL-2-5G antenna includes the newer 3400 - 3800 MHz bands, which were not covered by the V2, and is suitable for 2G, 3G, 4G, and 5G. This antenna performs exceptionally well in the following frequency bands: 698 - 960 MHz, 1700 - 2170 MHz, 2300 - 2700 MHz, and 3400 - 3800 MHz. In addition to the new bands, the gain at 1700 MHz and 2.7 GHz across the same frequency ranges is approximately 3 dB higher than that of the V2. The V2 antenna already outperformed most competitors in these areas, so this significant gain improvement showcases the benefits of the new advanced materials and innovative radiator design.
If it were a car, Poynting would have installed a completely new technology engine that produces double the power under the hood - it may look the same, but just wait until you turn the ignition on!
Antenna derivatives
Product order code (SKU): A-XPOL-0002-V3-03
Coaxial cable type: Twin HDF 195
Coaxial cable length: 10 m
Connector type: SMA (m)
Product weight: 1.73 kg
Packaging weight: 2.16 kg
Electrical data - Mobile communication
Frequency bands: 698-960 MHz; 1710-2700 MHz; 3400-3800 MHz
Gain (max.) Port 1 and 2: 9 dBi at 698-960 MHz; 10 dBi at 1710-2700 MHz;...
What our customers think
Pro
- Also works on the window in the interior
4. Poynting XPOL-2-5G
The XPOL-2-5G is Poynting's V3 of the third generation of this very popular cross-polarised (XPOL) mobile radio band 2x2 MIMO antenna. The antenna housing looks virtually the same as the second generation V2, but has been completely redesigned inside. Poynting has utilised advanced metamaterial technology, using artificial magnetic conductors (AMC) and a patent-pending radiator configuration that demonstrates exceptional improvements in bandwidth and gain. The radiation patterns of this antenna are exceptionally well controlled, further enhancing the antenna's performance.
The XPOL-2-5G antenna includes the 3400 - 3800 MHz bands not previously covered by the V2 and is suitable for 2G, 3G, 4G and 5G. This antenna performs exceptionally well in the following frequency bands: 698 - 960 MHz, 1700 - 2170 MHz, 2300 - 2700 MHz and 3400 - 3800 MHz. In addition, the gain at 1700 MHz and 2.7 GHz over the same frequency bands is about 3 dB higher than with V2. The V2 antenna already outperformed most competitors in these bands, so this significant improvement in gain demonstrates the benefits of the advanced materials and radiator design.
So if it was a car, Poynting installed a technology engine that produces twice the power under the bonnet - it may look the same, but just wait until you switch on the ignition.
Aerial cable not included.
What our customers think
Pro
- Easy assembly
- 3 times better download speed and better ping
- UPLOAD 14X Faster
5. Poynting 43100 - A-SWIRL-0004-V1-02 SWIRL X-polarised, omnidirectional 5GLTE-Multi
Poynting A-SWIRL-0004-V1-02 SWIRL X-polarized, omnidirectional 5G/LTE Multi-MIMO antenna array including base
Art. No.: A43100
GTIN/EAN: 6009710928899
HAN: A-SWIRL-0004-V1-02
Product Description
The SWIRL-4 features 4x cross-polarized mobile antennas covering frequencies from 617 to 6000 MHz with a peak gain of 6 dBi, 4x dual-band Wi-Fi antennas (2.4 GHz and 5 to 7.2 GHz), and 1x dual-band GNSS antenna for L1 and L5 constellations. The SWIRL-4 is characterized by a compact design with a diameter of 382 mm and a height of 127 mm, and it has an IP69K protection rating, ensuring a long lifespan in harsh environments. Although SWIRL is primarily designed for maritime applications, it is also suitable for various mobility applications, making it a versatile choice for different connectivity needs. Furthermore, the SWIRL can be transformed into a CPE (Customer Premises Equipment) device by installing the SWIRL-BASE. This aluminum cast base is specifically designed to accommodate 5G routers and is available in sizes of 231 x 193 x 50 mm or 293.5 x 148.5 x 50 mm. By installing the router in the base, coaxial cable runs are reduced, enhancing performance by minimizing signal loss. Experience the future of connectivity with Poynting's SWIRL antenna solution, designed for seamless integration and excellent performance in demanding environments.
Highlights
- Powerful, omnidirectional marine and mobility antenna
- Up to 4 x 4 MIMO capability for improved performance
- Covers the current 5G/LTE band from 617 to 6000 MHz
- Innovative heat sink design for improved temperature regulation
- UV and saltwater resistant for marine and coastal applications
Applications
- Reliable connectivity for ships, boats, and other watercraft.
Network antenna
EUR989,–
Poynting 43100 - A-SWIRL-0004-V1-02 SWIRL X-polarised, omnidirectional 5GLTE-Multi
5G, GPS, Wi-Fi
6. Poynting - Antenna- 5G/LTE- Car/Marine- A-MIMO-0004-V2-17-B- Wi-Fi- black-
The Poynting mobile antenna is a powerful and robust solution designed for outdoor use. This multifunctional 7-in-1 MIMO antenna supports a wide range of frequencies from 617 MHz to 7200 MHz and offers a high gain rate of 6 dBi. It is ideal for various mobile communication standards, including 2G, 3G, LTE, and 5G, as well as for Wi-Fi applications in the frequency range of 2.4 GHz to 7.2 GHz. The antenna is equipped with an SMA male connector and comes with a 2-meter long Twin HDF-195 cable, allowing for flexible installation. With an IP69K protection rating, the antenna is particularly resistant to weather conditions, making it excellent for outdoor use.
- Multifunctional 7-in-1 MIMO antenna for versatile applications
- Supports frequencies from 617 MHz to 7200 MHz
- High gain of 6 dBi for improved signal strength
- Robust construction with IP69K protection rating for outdoor use
- Includes 2-meter Twin HDF-195 cable for flexible installation.
Network antenna
EUR279,–
Poynting - Antenna- 5G/LTE- Car/Marine- A-MIMO-0004-V2-17-B- Wi-Fi- black-
5G, GPS

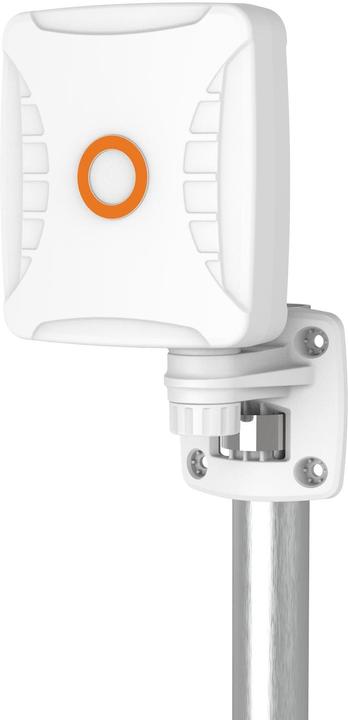

7. Poynting A-XPOL-0001-V3-41 4x4 MIMO Antenne für 4G/5G FWA
The A-XPOL-0001-V3-41 is a state-of-the-art 4x4 MIMO antenna specifically designed for use with 4G and 5G FWA (Fixed Wireless Access). With a frequency range of 410 to 6000 MHz and a maximum antenna gain of 7 dBi, this antenna delivers excellent performance for various mobile communication standards, including LTE, 3G, and GSM. The omnidirectional radiation pattern ensures that the signal is evenly distributed in all directions, enhancing reception quality in different environments. The antenna is designed for outdoor use and can be flexibly mounted on walls, poles, or windows. With a robust design and an IP65 rating, it is ideal for use in various weather conditions. The four SMA connectors allow for easy integration into existing systems and ensure a reliable connection.
- Omnidirectional radiation pattern for uniform reception
- Maximum antenna gain of 7 dBi for improved signal strength
- Flexibly mountable on wall, pole, or window
- Robust design with IP65 protection for outdoor applications.
8. Poynting 42451 - A-OMNI-0904-V1-01 Narwhal 5GLTE Omnidirectional 4x4 MIMO Marine
The OMNI-904 is a high-performance, ultra-wideband antenna designed to provide seamless connectivity across all contemporary LTE/5G frequency bands. Covering a broad spectrum from 617 to 4200 MHz, this antenna ensures superior signal reception with well-balanced gain across all frequencies. Its advanced design and rugged construction make it ideal for marine and coastal applications.
Ultra-wideband frequency coverage: Supports LTE/5G bands from 617 to 4200 MHz, including LTE Band 71 and CBRS bands from 3400 to 4200 MHz.
True omni-directional 4x4 MIMO: Features a combination of two low-gain and two high-gain omni-directional antennas for optimal pattern control.
Superior pattern diversity: Ensures stable and consistent signal performance across all frequency bands, enhancing connectivity.
Marine-grade durability: Fully saltwater protected with a robust fiberglass radome, designed to withstand highly corrosive environments.
IP68 protection rating: Offers complete resistance against dust and water ingress, ensuring functionality in extreme marine conditions.
Future-proof design: Optimized for current and next-generation LTE and 5G networks, guaranteeing long-term connectivity.
The OMNI-904 is engineered for global use, providing reliable, high-performance signal reception for marine, coastal, and inland applications requiring robust and future-ready LTE/5G connectivity.
Ideal applications:
- Marine applications: Super yachts, boats, ferries
- Enhanced LTE/4G and 5G reception
- Increase system transmission reliability
- High-end industrial grade router applications
- Industrial and commercial LTE/5G deployment
- Agricultural and farming LTE/5G data distribution.
Network antenna
EUR2371,38
Poynting 42451 - A-OMNI-0904-V1-01 Narwhal 5GLTE Omnidirectional 4x4 MIMO Marine
4G, 5G
9. Poynting Antennas - Wi-Fi/5G - Marine - A-OMNI-0498-V1-01 - white - 2m SMA (m) - 2.4 GHz/5GHz 9.8dB
The Poynting A-OMNI-0498-V1-01 is a high-performance, omnidirectional Wi-Fi and 5G antenna specifically designed for use in maritime environments and coastal areas. With a frequency range of 2.4 to 6 GHz and a maximum gain of 9.8 dBi, this antenna provides a reliable connection for various applications, including M2M and IoT solutions. The antenna supports the latest Wi-Fi standards, including Wi-Fi 6, making it future-proof. Thanks to its robust construction and IP68 certification, it is suitable for both indoor and outdoor use and can withstand extreme weather conditions. The antenna comes with a 2-meter long SMA cable for easy installation.
- Dual-band frequency range of 2.4 to 6 GHz
- Maximum gain of 9.8 dBi for improved signal strength
- Supports 2x2 MIMO technology for higher data rates
- IP68 certified for protection against water and dust
- Operating temperature range of -40 to 80 °C for extreme environments.
Network antenna
EUR389,–
Poynting Antennas - Wi-Fi/5G - Marine - A-OMNI-0498-V1-01 - white - 2m SMA (m) - 2.4 GHz/5GHz 9.8dB
5G, Wi-Fi
10. Poynting A-OMNI-0704-V1-01 - OMNI Directional Wi-Fi Antenna 5000 - 6000 MHz, 4 dBi
The OMNI-704 antenna is part of our new antenna series "Rhyno." The OMNI-704 operates in the range of 5.0 - 6.0 GHz and covers the upper half of the 5 GHz WiFi band. It has a maximum gain of 4 dBi and provides consistent gain across the entire operating band, enabling improved performance with reliable connections. The antenna has been designed with excellent directional characteristics across the entire frequency range, making the OMNI-704 an outstanding omnidirectional antenna for its size. The antenna housing is made of UV-stable ASA and offers protection in highly corrosive environments, including chemical and toxic settings such as industrial facilities. The robust housing design provides protection under harsh environmental conditions with an IP 69K and IK 10 rating. The antenna features an N-type socket at the base, which can be connected to a cable of the desired type and length.
Features
- Omnidirectional antenna
- Wi-Fi antenna with medium gain from 5000 to 6000 MHz
- Easy installation, mast or wall mounting possible
- Sleek and robust design
- Waterproof and dustproof high-pressure housing (IP 69K)
Applications
- Smart utilities: Smart electricity meters, gas and water meters
- Smart buildings: Climate control, access control, security, irrigation
- Smart environmental and water systems
- Warehouses and logistics systems
- Industrial factory automation and M2M systems
- Agriculture and M2M IoT in agriculture.
Network antenna
EUR98,90
Poynting A-OMNI-0704-V1-01 - OMNI Directional Wi-Fi Antenna 5000 - 6000 MHz, 4 dBi
Wi-Fi
