Best selling Network cards from Huawei
On this page you'll find a ranking of the best Huawei products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Huawei MCUD 1,25G | Karte | dediziert für 5608T
The Huawei MCUD 1.25G expansion card is designed for the 5608T base station. It includes an uplink module with four SFP slots, two of which are SFP+, a control module, and an Ethernet port.
The control module - Uplink Huawei H80MCUD101 is easy to install and works with the GPON OLT 5608T Huawei. The terminal allows for the installation of up to two cards of this type, enabling load distribution.
The card features two control LEDs: ACT and RUN/ALM. In addition to 2 x SFP+ and 2 x SFP, it has a FastEthernet RJ-45 port for remote management. The local interface module consists of 4 RJ-45 ports - Alarm IN, Alarm IN/OUT, Console, and AUX - BITS / TOD.

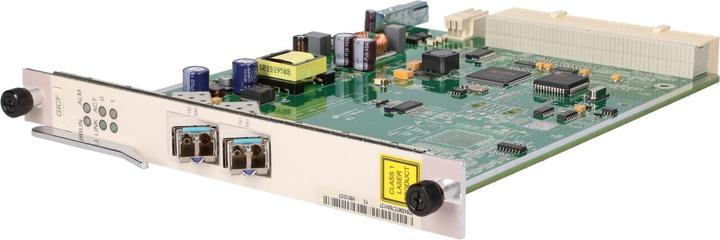

2. Huawei 5680/5683 OLT UPLINK BOARD GICF (1.25G) ( 5680/5683 GICF BOARD)
Huawei GICF is a 2-port card for the GE uplink optical interface for the Huawei MA5683T, MA5680T, MA5608T OLT system. The card provides upstream or cascading optical ports, which are standardly equipped with two single-mode 1310nm, 10km SFPs.
The fundamental principle of the H801GICF: The control module loads the board software, manages the operation of the software, and oversees the entire card. The conversion module supports transparent data transmission. The power supply module powers the other functional modules of the board.

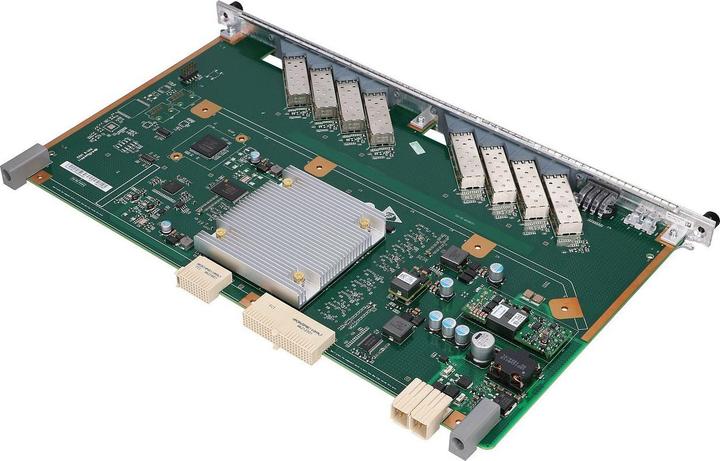

3. Huawei GPBD | GPON-Karte | 8x GPON C+, geeignet für 5608/5680/5683 OLT
The Huawei GPBD is an 8-port card for the GPON OLT interface that provides access to GPON services from the ONT. The GPBD can support a maximum of 1024 GPON subscriptions. The card is compatible with the Huawei OLT MA5608, 5683, and 5680 series.
The H805GPBD supports the following features:
- Eight GPON SFP ports
- Maximum splitting ratio of 1:128
- Class B+ and Class C+ optical modules
- Detection of received signal strength indicator (RSSI) and controlled optical transmission of the optical module
- ONU shaping
- Optical Performance Monitor (OPM)
- Automatic power shutdown at high temperatures
Operating principle of H805 GPBD.
Network cards
−22%
EUR389,– was EUR499,–
Huawei GPBD | GPON-Karte | 8x GPON C+, geeignet für 5608/5680/5683 OLT

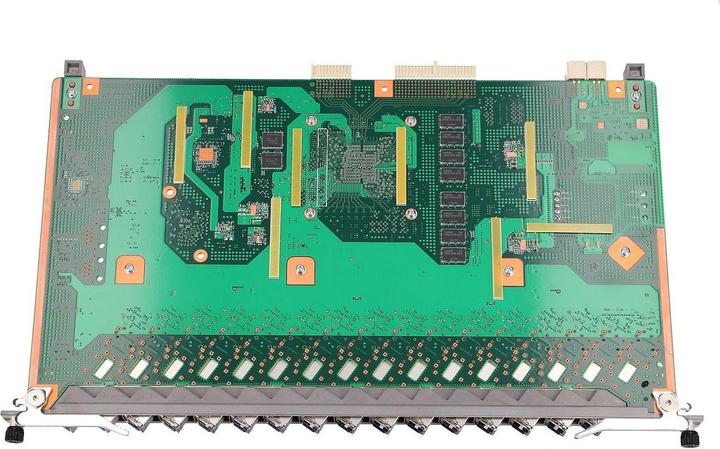

4. Huawei GPFD | GPON-Karte | 16x GPON C+, dediziert für 5608/5680/5683 OLT
Huawei GPFD - GPON Card
H802GPFD is a 16-port GPON OLT interface card that works with an Optical Network Terminal (ONT) to provide GPON access service. The GPFD can connect up to 2,048 users. The GPON card is designed for Huawei devices - MA5608T, MA5680T, and MA5683T.
Operating Principle H802GPFD.
5. Huawei H807GPBH | GPON-Platine | 8x GPON 2.5G, SFP C+
Huawei H807GPBH GPON Card with 8 Ports
The Huawei H807GPBH is a GPON card designed for OLT terminals of the MA56XX series (MA5608T / MA5683T / MA5680T).
The GPON technology allows for the connection of up to 1024 subscribers. The maximum split per port is 1:128. The throughput per port is 2.5 / 1.25 Gbps.
