1. InLine Netzwerk Switch 8-Port
The 8-Port Network Switch is a powerful solution for connecting devices in a desktop environment. With a maximum port speed of up to 10 Gbit/s, this switch offers a high data transfer rate that is sufficient for most network applications. It is equipped with eight RJ45 ports, allowing for easy connections to various network devices. The switch is designed for internal network operation and comes with a power cable as well as a user manual in both German and English. Additionally, mounting brackets and rubber feet are included, which support the installation and stability of the device. With a switching capacity of 160 Gbit/s and a MAC address table size of 16,000, this switch is ideal for small to medium-sized networks.
- Maximum port speed of 10 Gbit/s
- Switching capacity of 160 Gbit/s
- Supports up to 4094 VLANs
- Includes mounting brackets and rubber feet
- MAC address table size of 16,000.
2. InLine Switch unmanaged
The InLine Gigabit Network 5-Port Switch features five ports with speeds of 10/100/1,000 Mbit/s and is a versatile solution for both small home networks and office environments. It connects all network structures operating at 10 Mbit/s, 100 Mbit/s, and 1,000 Mbit/s, with connected network cables capable of being up to 100 meters long.
With a throughput of up to 1,000 Mbit/s and integrated store-and-forward technology, it provides fast data transmission while filtering out faulty data packets for the entire network. Its compact dimensions allow for easy placement in tight spaces. To establish connections quickly and reliably, the switch has a 4K memory for MAC addresses.
Technical details:
- Dimensions: 92 x 25 x 68 mm (W x H x D)
- Color: Black
- Connections: 5x RJ45 ports, each supporting 10/100/1000 Mbit/s
- Standards: IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T CSMA/CD, TCP/IP
- IEEE802.3x flow control in full-duplex mode and backpressure for half-duplex mode
- MAC address table: 4K
- LED indicators: Power, Link/Act, 1,000 Mbit/s indicators
- Operating temperature: 0 °C ~ 60 °C
- Humidity: 10% ~ 90% (non-condensing)
- Power supply: 5 V, max 1 A.
3. InLine PoE+ Gigabit Network Switch 24 Port
The InLine PoE+ Gigabit Network Switch is a powerful and versatile solution for integrating Power over Ethernet (PoE) into existing networks. With 24 ports supporting speeds of up to 1 Gbit/s, this unmanaged switch allows for easy and efficient connection of devices that require PoE. Support for IEEE 802.3af and IEEE 802.3at ensures a maximum output power of up to 32 watts per port, making it ideal for environments where multiple PoE-enabled devices are operated. The switch is rack-mountable and features a robust design suitable for a variety of applications. With a switching capacity of 52 Gbit/s and a packet forwarding rate of 38.69 Mpps, this switch can deliver high performance even in heavily trafficked networks. Additionally, it is protected against overload, overvoltage, and overheating, which enhances the reliability and longevity of the device.
- 24 PoE+ ports with up to 32 watts output power per port
- Support for IEEE 802.3af and IEEE 802.3at standards
- Sturdy rack-mountable design with 1U height
- High switching capacity of 52 Gbit/s
- Integrated protection mechanisms against overload and overvoltage.
4. InLine Gigabit Network Switch 24-Port
The InLine 24-Port Green Gigabit Switch offers seamless network connectivity. The 24x 10/100/1000 Mb/s Auto-Negotiation ports support all Auto MDI/MDIX. This switch is a cost-effective, easy-to-use, and powerful solution to upgrade your old network to a Gigabit network. The switch supports IEEE802.3az Energy Efficient Ethernet (EEE), which reduces power consumption by detecting the connected cable length and operating mode, automatically adjusting signal strength to lower energy usage and protect our environment.
Features:
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, and IEEE802.3az standards
- EEE (Energy Efficient Ethernet): reduced power consumption through intelligent energy management
- Supports up to 16K MAC addresses
- Supports IEEE802.3x Flow Control for full-duplex mode and back-pressure for half-duplex mode
- Supports Jumbo Frames
- LED indicators for monitoring power supply as well as link/activity.

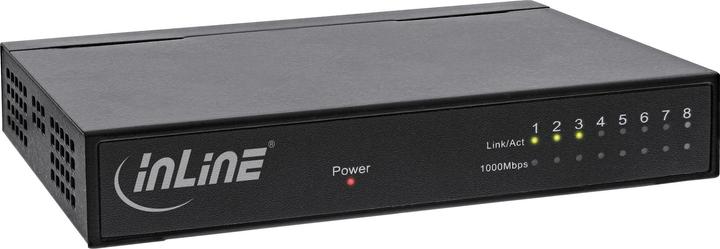

5. InLine Gigabit Switch 8x
The InLine Gigabit Network 8-Port Switch features eight ports with speeds of 10/100/1000 Mbps and is a versatile solution for both small home networks and office environments, connecting all network structures of 10 Mbps, 100 Mbps, and 1000 Mbps. With a throughput of up to 1000 Mbps and integrated store-and-forward technology, it provides fast data transmission while filtering out faulty data packets for the entire network. Its compact size allows for easy placement in tight spaces.
Technical Details:
- Standards: IEEE802.3i, IEEE802.3u, IEEE802.3ab
- Protocol: CSMA/CD
- Connections: 8 ports, each with 10/100/1000 Mbps
- Small desktop housing, fanless
- LED indicators: Power, Link/Act, 1000Mbps indicators
- Operating temperature: 0 °C ~ 40 °C (non-condensing)
- Humidity: 10 % ~ 90 % (non-condensing)
- Power supply: 12V, 0.5A max.
6. InLine PoE+ Gigabit network switch 5 port (4x PoE+), 1xSFP, 1Gb/s, desktop, metal, fanless
The InLine® Gigabit Network Switch 5 Port (4x PoE+), 1x SFP, offers a fast network connection and PoE+ support on 4 of the 5 ports. The SFP port supports SFP modules with a bandwidth of 1.25 Gb/s. The 5x 10/100/1000 Mb/s auto-negotiation RJ45 ports support all auto MDI/MDI-X.
The switch is an easy-to-use and powerful solution to upgrade your old network to a Gigabit network and to power PoE-capable devices such as IP cameras, IP phones, access points, etc., via the connected patch cable.
- Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x flow control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
- Ports: 4x 10/100/1000Base-T RJ45, auto-MDI/MDI-X, PoE+ support; 1x 10/100/1000Base-T RJ45, auto-MDI/MDI-X; 1x 1000Base-X SFP port
- Three modes: Normal operation, VLAN port isolation (Ports 1-4), range extension up to 250 meters over patch cable at 10 Mb/s (Ports 3 and 4)
- PoE power supply type: Endspan
- PoE output voltage: 52V DC per port
- PoE output power: Max. 30 Watts per port
- Total power: 65 Watts
- LED indicators: Power, mode, port (1-6)
- Dimensions (W x D x H): 20.2 x 12 x 4.5 cm
- Weight: approx. 616 g
- Power consumption: 100-240V AC, 50/60 Hz
- Environmental conditions: Operating temperature 0-40°C, storage temperature -20-70°C, humidity 20-95% non-condensing
Delivery includes:
- 1x InLine® PoE+ Gigabit Network Switch
- 1x User manual (German/English)
- 1x Power cable
- 4x Rubber feet.
Network switches
EUR67,19
InLine PoE+ Gigabit network switch 5 port (4x PoE+), 1xSFP, 1Gb/s, desktop, metal, fanless
5 ports

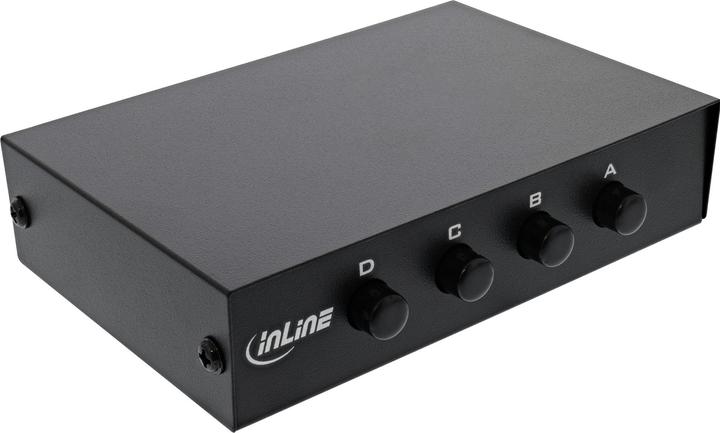

7. InLine RJ45-Switch
This manual switch allows for easy sharing of signals such as telephone, ISDN, network, etc. via the RJ45 interface between one input and four outputs, or vice versa. The switching is purely mechanical, requiring no additional power supply. The shielding is not connected.
8. InLine Gigabit Network Switch 16-Port
This Gigabit switch is easy to install and helps you quickly and reliably expand your network. All sixteen ports automatically detect the speed of the connected devices and support Auto MDI/MDI-X crossover detection, so you don’t have to worry about the type of cable used. Each individual port negotiates the optimal speed and operates in half or full duplex mode. Fast store-and-forward switching prevents the transmission of corrupted packets into the network. It supports IEEE802.3az energy-efficient Ethernet (EEE), reducing power consumption by detecting cable length and automatically adjusting signal strength. This helps lower energy consumption and protect our environment.
9. InLine 32316P Switch
The InLine PoE++ Gigabit Network Switch is a fast and flexible solution for upgrading an existing network to the Power over Ethernet system IEEE 802.3af / 802.at / 802.3bt, as well as for connecting via fiber optics to cover greater distances. The switch provides protection against overload, overvoltage, and overheating at each port. Additionally, the switch supports PoE according to IEEE 802.3af/at on ports 5-16 with up to 32 watts, as well as PoE++ according to IEEE 802.3bt with up to 60 watts output power on ports 1-4 per port via a Cat. 5e/6/6A/8.1 Ethernet cable, with a PoE budget of 300W and a combined total power of 330W. The 16x 10/100/1000 MBit/s PoE ports solve the problem of a limited number of available outlets and provide system administrators with a flexible solution to power network devices such as PoE-capable IP cameras or wireless access points (including those with heating) almost anywhere. The switch's menu can be password-protected to prevent unauthorized access.
