PC fans
−23%
only 1 piece on sale
EUR6,56 was EUR8,56
Alphacool 24814 Computer cooling system universal fan (e)
92 mm, 1 x
Best Alphacool products in the PC fans category
On this page you'll find a ranking of the best Alphacool products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Alphacool 24814 Computer cooling system universal fan (e)
The Alphacool Eiszyklon fan is the ideal combination of silent and performance fan in its size. Its airflow and high static pressure in a compact space make it perfect for 92 mm radiators. The extensive Digital RGB lighting also creates the right atmosphere in the system.
With a fan speed of 600 - 1800 rpm, the Alphacool Eiszyklon offers a very wide control range, making it suitable for silent systems as well. The 11 fan blades with a steep angle provide high static pressure, making them ideal for operation on radiators. Additionally, decouplers are found directly on the frame. The soft foam pads reduce the transmission of vibrations to the case.
The Alphacool Eiszyklon features a total of 12 Digital RGB LEDs. The entire fan frame acts as a diffuser, evenly distributing the light across the frame. This not only optimally illuminates the transparent fan blades but also the area around the fan. This ensures a homogeneous lighting of the entire fan as well as the surrounding area.
The fan is controlled via a 4-pin PWM connection. The fan cable is 23 cm long. The Digital RGB LED lighting is controlled via a JST 3-pin connector. The JST connector cable is 50 cm long and has a splitter at the end, allowing for the connection of additional Digital RGB products with a JST connector in series. This helps reduce cable clutter and allows all products to be controlled simultaneously via a single controller connection.
The Alphacool Aurora LUX fan is a complete worry-free package with perfect airflow and outstanding 5V Digital RGB LED lighting. And all functions can be controlled through just one cable connected to a controller. It doesn't get much easier than that.

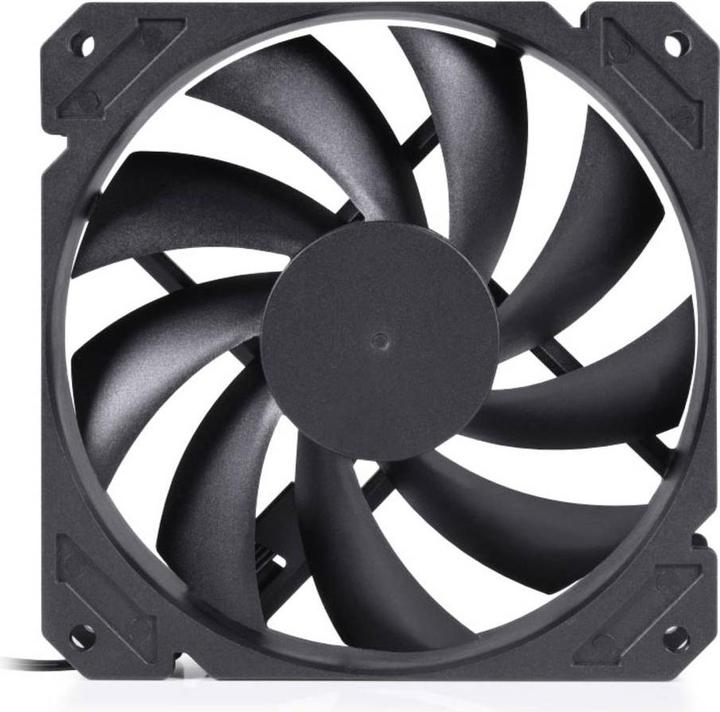

2. Alphacool Core
Alphacool's Core 120mm is a quiet and efficient fan with a wide control range of up to 4000 RPM. The fan, which is controlled via a PWM signal, is not only suitable for use on CPU coolers or radiators. Thanks to its excellent performance metrics (airflow and static pressure), it can also be used as a case fan. The double-ball bearing fan axis ensures smooth operation, long lifespan, and quiet performance. If you're looking for a powerful fan without aRGB lighting, the Alphacool Core 120mm is the perfect choice!
Connections: The fan is controlled via a 4-pin PWM connector. The cable is 40 cm long, allowing the fan to be connected directly to the motherboard or a dedicated controller without the need for additional adapter cables or extensions.
Control Range: Through the 4-pin PWM connector, the fan can be regulated from 0 to 4000 RPM. At maximum speed, it provides an airflow of 119.8 CFM combined with a high static pressure of 12.67 mm/H2O. This makes the fan ideal for mounting on radiators of a water cooling system or for ventilating a case.
Technical Specifications:
Dimensions (L x W x H): 120 x 120 x 25 mm
Material: Plastic (PBT UL94V-0)
Bearing Type: Two Ball Bearing
Rated Voltage: DC 12V
Operating Voltage: DC 7-14V
Starting Voltage: 7V
Rated Current: 0.53 (Max: 0.67) A
Rated Power: 6.36 (Max: 8.04) W
Rated Speed: 0 - 4000 RPM ±10%
Max. Airflow: 119.8 CFM
Max. Static Pressure: 12.67 mm/H2O
Noise Level: 49.5 (Max: 51.5) dBA
Lifespan: 70000 h at 40 degrees Celsius
Connection: 4-Pin PWM fan control via PWM
Operating Temperature: -10 to +70 degrees Celsius
Other Features: Tachometer Output, Auto Start, Soft Start, Waterproof Level IP22
Warranty: 3 years.
3. Alphacool Apex Stealth Metall
High-quality, elegant, and timeless design combined with technical innovation - these are the characteristics of the Alphacool Apex Stealth metal fan. With its patented decoupling technology, robust metal frame, and special rotor, this fan impresses in every aspect. The Apex Stealth is not only one of the most powerful fans but also the quietest at any speed.
4. Alphacool 24826 Computer cooling system universal fan (e)
The Alphacool computer cooling system Universal Fan(s) is a highly advanced PWM fan specifically designed for use in servers and workstations. With a modern 4-pin PWM connector, this fan allows for precise speed control over a wide range, leading to significant energy savings. The fan can even be completely stopped at a PWM signal of 0%, making it particularly efficient. A soft start mechanism increases the fan's lifespan and minimizes the risk of injury from moving parts. Additionally, the fan is equipped with a dual ball bearing, ensuring high durability and smooth operation. These features make the Alphacool fan a reliable choice for demanding applications where performance and efficiency are critical.
- 4-pin PWM connector for precise speed control
- Energy savings through complete stoppage at 0% PWM signal
- Dual ball bearing for increased lifespan and smooth operation
- Soft start mechanism to minimize injury risk.

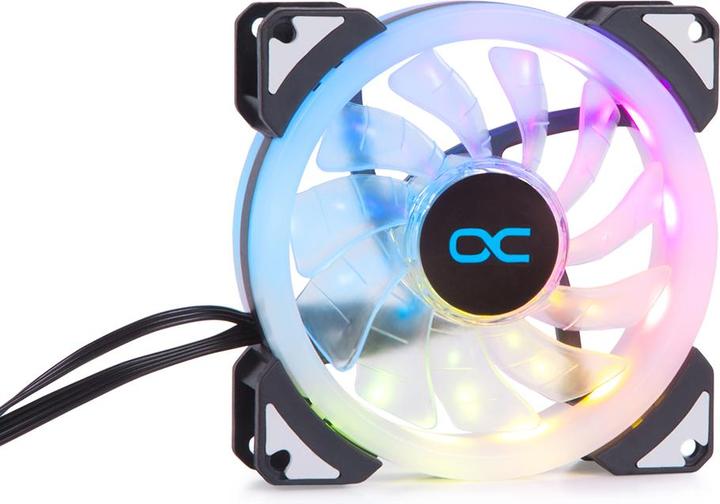

5. Alphacool Rise Aurora PWM fan
The Alphacool Rise Aurora fan offers not only a wide control range but also outstanding digital aRGB LED lighting. The individually controllable 5V aRGB LEDs combined with the fan's special design create unique effects.
Brilliant Lighting
The frame and hub are equipped with 20 digitally addressable 5V RGB LEDs that illuminate the entire fan. This creates a unique lighting effect that appears very elegant. Thanks to the recessed diffusers, the light is distributed evenly, avoiding any spot lighting. Individual LEDs are no longer discernible.
Wide Control Range and Silent
Through the 4-pin PWM connector, the fan can be regulated from 0 to 2500 RPM. Additionally, it features a zero-control mode, allowing the fan to be reduced to 0 RPM and then start at approximately 350 RPM. At 800 RPM, the fan is nearly silent. At 2500 RPM, it provides an airflow of 118.9 m³/h combined with a high static pressure of 3.17 mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system or for ventilating a case. Decouplers are located directly on the frame. The soft foam pads reduce the transmission of vibrations to the case. Edge profiles on the fan blades further significantly reduce noise levels.
Connections?
The fan is controlled via a 4-pin PWM connector. The cable is 40 cm long, allowing the fan to be connected directly to the motherboard or a specific controller without additional adapter cables or extensions. The digital aRGB LED lighting is controlled via a JST 3-pin connector.
6. Alphacool Apex Stealth Metal Power 120mm fan 3000rpm (black)
Black case fan in a zinc housing. PWM-controlled speed range from 0 to 3,000 RPM. Whisper-quiet for uninterrupted gaming sessions. Impeller completely decoupled from the housing to prevent vibrations. High airflow volume of 117.21 m³/h.
Alphacool Apex Stealth Power Metal: a high-performance and quiet case fan. The Alphacool Apex Stealth Power Metal is a high-performance 120mm fan designed for use as a case fan. Nine rotor blades provide an airflow volume of 117.21 m³/h and a static pressure of 2.09 mmH2O. The fan is controlled via PWM signal in a speed range of 0 to 3,000 RPM.
At maximum speed, the Alphacool Apex Stealth Power Metal generates a low noise level of 39.5 dB(A). The quiet and smooth hydro-dynamic bearing, along with the complete decoupling of the impeller, ensures that no vibrations are transmitted to the case.
Metal housing. The housing of the Apex Stealth Power is made entirely of metal, which helps filter out unwanted vibrations. The weight of the frame dampens vibrations, resulting in an overall quieter experience.
Technical details:
- Dimensions: 120 x 120 x 25 mm (W x H x D)
- Material: Plastic (impeller), Zinc (housing)
- Color: Black (frame), Black (fan blades)
- Noise level: 39.5 dB(A)
- Speed: 0 - 3,000 RPM (-10 /+5 %)
- Airflow volume: 117.21 m³/h
- Air pressure: 4.46 mmH2O
- Operating voltage: 12 V
- Connectors: 4-pin PWM.
7. Alphacool Core 120mm Fan PWM 3000rpm (120x120x25mm)
8. Alphacool Apex Stealth Metal Power 120mm fan 3000rpm (gold/black)
Black case fan in a zinc housing. PWM-controlled speed range from 0 to 3,000 RPM. Whisper-quiet for undisturbed gaming sessions. Impeller completely decoupled from the housing to prevent vibrations. High airflow volume of 117.21 m³/h.
Alphacool Apex Stealth Power Metal: High-performance and quiet case fan. The Alphacool Apex Stealth Power Metal is a high-performance 120mm fan designed for use as a case fan. Nine rotor blades provide an airflow volume of 117.21 m³/h and a static pressure of 2.09 mmH2O. The fan is regulated via PWM signal within a speed range of 0 to 3,000 RPM.
At maximum speed, the Alphacool Apex Stealth Power Metal produces a low noise level of 39.5 dB(A). The quiet and smooth hydro-dynamic bearing, along with the complete decoupling of the impeller, ensures that no vibrations are transmitted to the case.
Metal housing: The housing of the Apex Stealth Power is made entirely of metal, which helps filter out unwanted vibrations. The weight of the frame dampens vibrations, providing a quieter overall experience.
Technical details:
- Dimensions: 120 x 120 x 25 mm (W x H x D)
- Material: Plastic (impeller), Zinc (housing)
- Color: Gold (frame), Black (fan blades)
- Noise level: 39.5 dB(A)
- Speed: 0 - 3,000 RPM (-10 /+5 %)
- Airflow volume: 117.21 m³/h
- Air pressure: 4.46 mmH2O
- Operating voltage: 12 V
- Connectors: 4-Pin PWM.
9. Alphacool Core 120mm fan PWM 2500rpm (120x120x25mm)
Alphacool's Core 120mm is a quiet and efficient fan with a wide control range up to 2500 RPM. The fan, which can be controlled via PWM signal, is suitable not only for CPU coolers or radiators but also as a case fan due to its excellent performance values in throughput and static pressure. The hydraulically mounted fan shaft ensures smooth operation, contributing to a long service life and quiet performance. If you are looking for a powerful fan without aRGB illumination, the Alphacool Core 120mm is an excellent choice.
Connections: The fan is controlled via a 4-pin PWM connector with a cable length of 40 cm, allowing for direct connection to the mainboard or a special controller without the need for additional adapter cables or extensions. The fan can operate from 600 to 2500 RPM through the 4-pin PWM connection. At maximum speed, it provides an airflow of 72.63 CFM with a high static pressure of 2.42 mm/H2O, making it ideal for mounting on water cooling system radiators or for ventilating an enclosure.
Technical data:
- Dimensions (L x W x H): 120 x 120 x 25 mm
- Material: Plastic (PBT UL94V-0)
- Bearing type: Hydraulic
- Rated voltage: DC 12V
- Operating voltage: DC 7-14V
- Starting voltage: 7V
- Rated current: 0.3 A (Max: 0.4 A)
- Rated power: 3.6 W (Max: 4.8 W)
- Control range: 0 - 2500 RPM ±10%
- Max. airflow: 72.63 CFM
- Max. static pressure: 2.42 mm/H2O
- Noise level: 36.6 dBA (Max: 37.8 dBA)
- Life expectancy: 50,000 hours at 25 degrees Celsius
- Connection: 4-pin PWM
- Operating temperature: -10 to +55 degrees Celsius
- Other features: Tachometer output, auto start, soft start, waterproof level IP22.
10. Alphacool 24817 Computer cooling system universal fan (e)
The Alphacool ES fans have been specifically designed for use in servers and workstations. Unlike typical fans, they do not feature a 2- or 3-pin DC power connection, but rather a 4-pin PWM control. Instead of relying on the usual 2 cables or the 3-pin connection, Alphacool now also employs a modern 4-pin PWM connection in its enterprise fans, which is increasingly supported by server motherboards. Through the 4-pin PWM connection, the fan always receives full voltage and is controlled via pulse width modulation. This allows for a significantly wider range of speed control. By regulating the fans in server racks, a substantial amount of energy can be saved. With a 0% PWM signal, the fans can even be completely stopped. The fan also features a soft start, which increases its lifespan and reduces the risk of injury, especially at speeds of several thousand revolutions per minute.
