Best MikroTik products in the PoE injector category
On this page you'll find a ranking of the best MikroTik products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

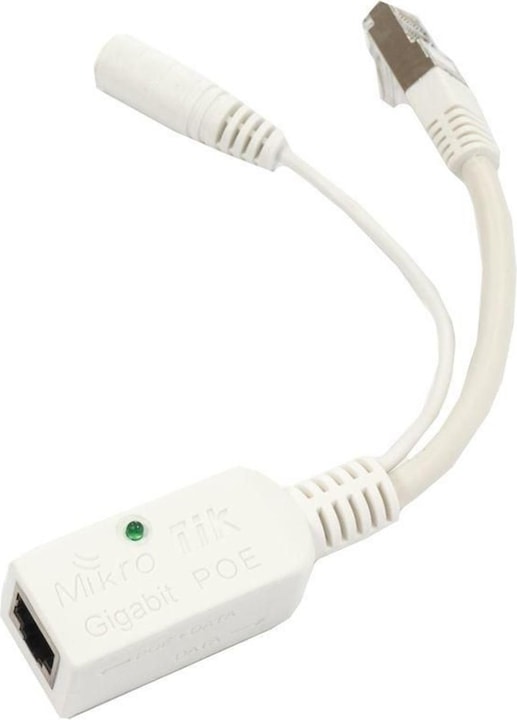

1. MikroTik Rbgpoe
PoE injector for the Gigabit range. Input voltage: 18-57 V. Supply voltage: 18-57 V. Exclusively for PoE applications. Without power supply (optional available as an accessory). Ethernet cable length up to 60 m, Ethernet speed 10/100/1000 Mbps. Compatible with all Mikrotik Routerboards. The RBGPOE is designed for Gigabit Ethernet networks. The Gigabit range has a maximum transmission rate of 1000 megabits per second. With this transmission protocol, there are no unused wires in a network cable, as would be the case with slower protocols. Therefore, the power supply must be placed under the normal data signal, making the separation of these signals more complex.
2. MikroTik Power Injector
The MikroTik Power Injector is a passive PoE injector that provides a reliable power supply for network devices over Ethernet cables. With a maximum port speed of 1000 Mbps (1 Gbps), it is ideal for applications that require high data transfer rates. The injector supports the PoE standard 802.3at (PoE+) and offers an output voltage of 48V, making it a practical solution for powering compatible devices. The MikroTik Power Injector is equipped with an RJ45 Gigabit Ethernet port, allowing for easy integration into existing network infrastructures. It is designed for outdoor use and provides a current of 2 Amperes, ensuring a stable and efficient power supply. This device is particularly useful in environments where a separate power supply for network devices is not feasible.
- Supports the PoE standard 802.3at (PoE+) for improved energy efficiency
- Offers a maximum port speed of 1000 Mbps for fast data transfers
- Input and output voltage of 48V for reliable power supply
- Easy integration into existing networks via an RJ45 Gigabit Ethernet port.

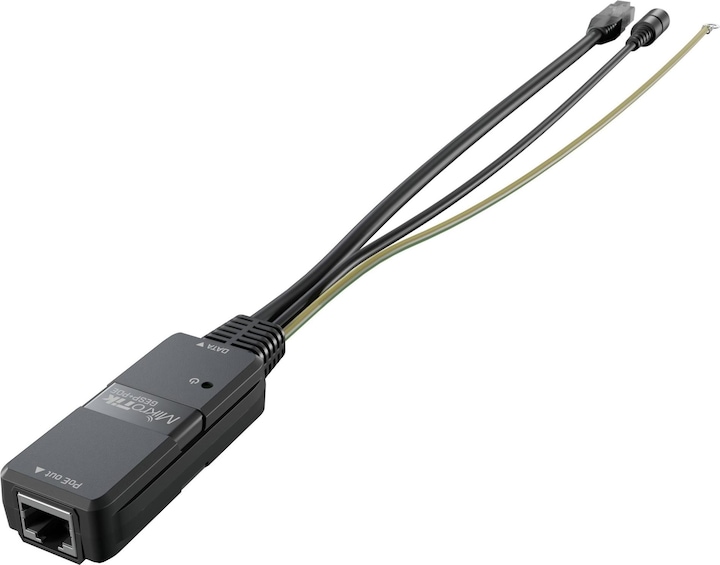

3. MikroTik PoE Injector passive GESP+POE-IN with overvoltage protection
The MikroTik PoE Injector passive GESP+POE-IN with surge protection is a reliable solution for powering devices over Ethernet cables. This passive PoE injector supports the 24V passive PoE standard and allows for a maximum power output of 24 watts per port. With an RJ-45 speed of up to 1000 Mbit/s, it is ideal for applications that require high data transfer rates. The GESP+POE-IN is not designed for outdoor use but provides effective surge protection to safeguard connected devices against sudden voltage spikes. The operating temperature ranges from -40 to 70°C, making it suitable for various environments. This PoE injector is a practical choice for network installations where reliable power supply and data transfer are essential.
- Passive PoE support with 24V standard
- Maximum PoE output of 24 W per port
- RJ-45 speed of 10/100/1000 Mbit/s
- Surge protection with a maximum impulse breakdown voltage of 700 V
- Operating temperature range of -40 to 70°C.
PoE injector
EUR39,90
MikroTik PoE Injector passive GESP+POE-IN with overvoltage protection
Passive 24V PoE-in, 24 W
4. MikroTik PoE Injector GPEN11 passive for GPEN system
MikroTik GPEN11 - Fixed Installed GPEN Gigabit PoE Injector
The GPEN11 is a power injector that can be mounted on a wall and supplies your uplink devices with PoE power. The GPEN11 is part of the GPEN concept (Gigabit Passive Ethernet Network), which aims to replace GPON installations with more cost-effective and simpler Ethernet alternatives. There is also a space for an ISP sticker on the front (sticker size: 6.6 x 2.54 cm).
The GPEN11 can be installed in a customer building next to the Wi-Fi router that provides connectivity to users. The GPEN11 itself then powers the ISP router, whether it is a wireless outdoor unit mounted on a roof or the network switch.
The GPEN unit can be securely attached to a wall or a communication cabinet. The Ethernet cable can be routed either directly through the lower cable opening or into the wall.
Included in the package:
- Screw set
- Product code: GPEN11
- 10/100/1000 Ethernet ports: 2
- Number of DC inputs: 1
- PoE out: Yes, passive PoE
- Supported input voltage: 12 - 57 V
- Dimensions: 92 x 104 x 24 mm
- Operating temperature: -40°C to 70°C.
5. MikroTik GESP+POE-IN PoE adapter
GESPPoE is a passive PoE injector with surge protection. It provides 24V passive PoE with a power output of 24 W per port. The RJ-45 speed is 10/100/1000 Mbit/s. The DC spark-over voltage is 75 V @ 100 V/s, the maximum impulse spark-over voltage is 700 V @ 1 kV/μs, and the discharge current is 3 kA (8/20μs). PoE support: passive PoE. The operating temperature ranges from -40 to 70 °C.
A typical application scenario is as follows: you have a mast with several antennas and some switches on the ground. Place the GESP surge protector there. It is sealed in a new and improved weatherproof IP67 enclosure, ensuring your antennas are safe during a thunderstorm. Now add the GESPPOE-IN injector below the mast to protect the switches and power the antennas.
Don't forget the grounding cable. Attach it to the rack mount, mast, or any other structure that is connected to the ground. For maximum protection, you should use surge protection at both ends of long cables. These small devices can make a difference when it comes to lightning strikes or static discharge. A small investment can save a lot of time and money. The GESP units can typically withstand multiple lightning strikes but should be checked for condition after each strike.
For mounting the GESP units, we recommend using PVC cable ties. It is said to hope for the best but prepare for the worst. This small investment can save a lot of time and money, so why take a risk? Get a GESP and GESPPOE-IN and worry no more.

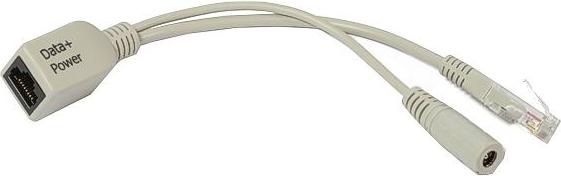

6. MikroTik RBPOE - passive PoE injector
MikroTik Passive PoE Injector, RB/POE, RBPOE
Low-cost passive PoE base unit for powering passive PoE devices over Ethernet. Simply connect your power source to the injector and then use an Ethernet cable to connect the injector to the RouterBOARD. The device is suitable for use with RouterBoards that support 10-28 V PoE. An input voltage of at least 18 V is required.
- Product code: RBPOE
- Input voltage: Any
- Output voltage: Any.

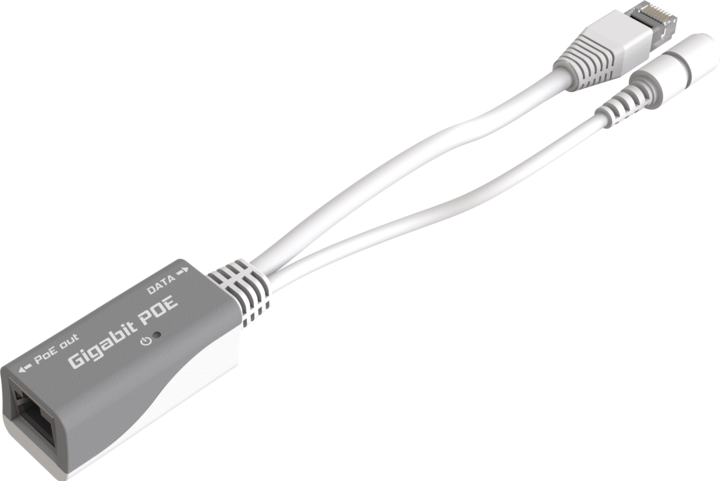

7. MikroTik Gigabit passive PoE injector
The RBGPOE from Mikrotik is a connection cable that is only suitable for PoE devices. PoE (Power over Ethernet) means that with this technology passive network devices can be supplied with power via the Ethernet line. This product serves as a splitter that converts normal network signals into a common data signal and splits it to the necessary power supply. The advantage of this method is that additional cables for the power supply are thus unnecessary. It also allows devices to be placed in locations where an additional power supply would be difficult to implement. The RBGPOE is designed for Gigabit Ethernet networks. The Gigabit range has a maximum transmission rate of 1000 megabits per second. This transmission protocol means that there are no free wires in a network cable, as would be the case with slower protocols. Therefore the power supply must be placed under the normal data signal, which makes the separation of these signals more complex.
8. MikroTik Net Poe Splitter/Extender/Gper14i

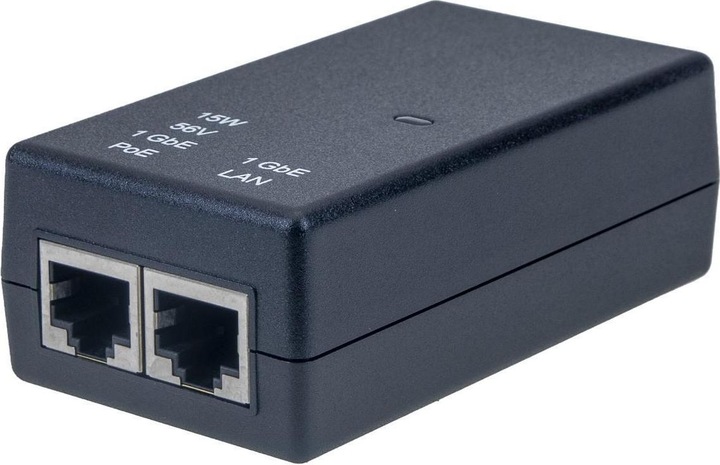

9. MikroTik N000900L017B - Cambium Networks - Gigabit PoE injector 56V/0.268A (15W)
Product Description
The Cambium Network Gigabit PoE Injector N000900L017B is a high-quality Gigabit PoE injector with a PoE output designed to power devices at a voltage level of 56V and a maximum output power of 15W. It is suitable for devices such as cnPilot: e410, e425, e430, e505, e510, or the 60GHz Client Unit V1000. Power is supplied through wires 4,5 (+) and 7,8 (-). A 3-pin power cable is not included.
Technical Parameters
Connections and Interfaces
- Ethernet Speed [Mb/s]: 10/100/1000
- Gigabit LAN: Yes
Power
- Output Power / 1 Port [W]: 15
- Pin Supply: 4,5 (+), 7,8 (-)
- PoE-Out Standards: Passive 56V
- PoE Outputs: 1
- Output Voltage [V]: 56
Physical Properties
- LED Indicator: Yes
- Operating Temperature [°C]: 0 to 40
- Weight [g]: 94
- Width [mm]: 46
- Height [mm]: 30
- Depth [mm]: 84.
PoE injector
−5%
EUR35,90 was EUR37,90
MikroTik N000900L017B - Cambium Networks - Gigabit PoE injector 56V/0.268A (15W)
15 W

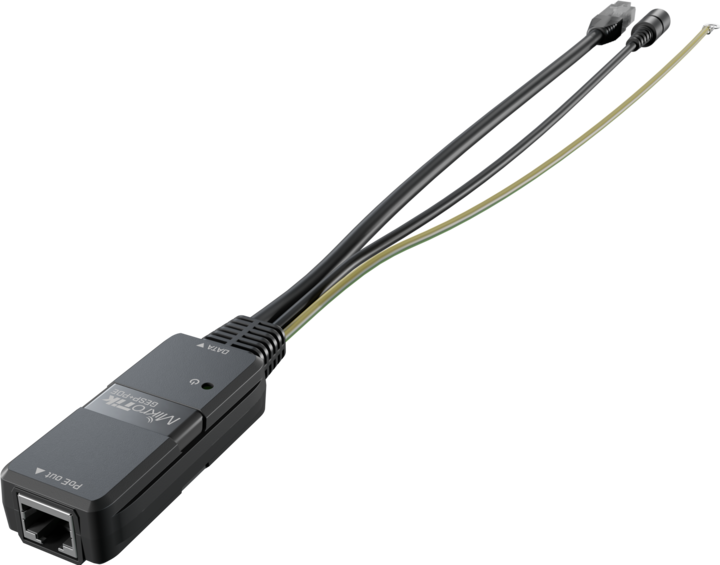

10. MikroTik GESP+POE-IN - Passive PoE Injector with Surge Protection
GESP+POE-IN - Passive PoE Injector with Surge Protection
You can't buy safety, but you can buy MikroTik devices to keep your setup secure. Take a look at the GESP product line. It consists of a revamped version of the classic MikroTik GESP surge protector and a brand new device – the GESP+POE-IN, a passive PoE injector with surge protection. Together, these two devices offer maximum safety and peace of mind.
Here's what a typical use case looks like. You have a mast with some antennas and a few switches on the ground. Connect the GESP surge protector there. It features a new and improved weatherproof IP67 enclosure. Your antennas are now safe during a thunderstorm. Now add the GESP+POE-IN injector under the mast to protect the switches and power the antennas.
But don't forget the grounding cable! Attach it to the rack mount, the mast, or another grounded structure. For maximum protection, you should use surge protection at both ends of long cables.
These little devices can make a difference when it comes to lightning strikes or static discharge.
The GESP units can typically absorb multiple surges, but check their condition after each surge. We recommend using PVC cable ties to secure GESP devices. Just don't make them too tight.
You know what they say – hope for the best, prepare for the worst. This small investment can save a lot of time and money, so why take a risk? Grab a GESP and GESP+POE-IN!
Product code: GESP+POE-IN
Interface connections: RJ45 plug/socket
ESD/EMP protection: Absorbing transient currents with response to surge voltages of 100 V/s 1 kV/μs ESD, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4.
