Best selling Power Supplies PC from Shuttle
This page always stays fresh and updates automatically.

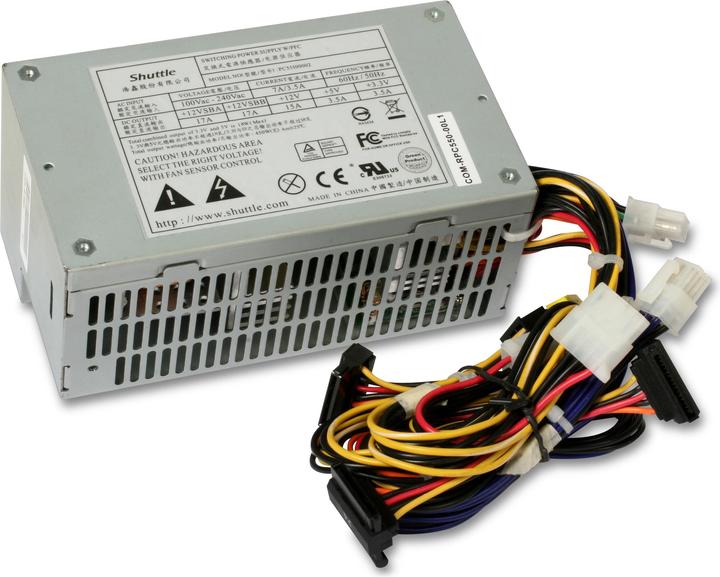

1. Shuttle Pc55
SilentX 450W power supply. The Shuttle XPC Accessory PC55 provides an additional power boost for compatible Shuttle XPCs to meet the demands of extremely power-hungry graphics cards and large hard drives.
2. Shuttle Pc61j
The Shuttle XPC Accessory PC61J is a new high-end power supply with a maximum output of 300W, designed for the Shuttle XPCs SG41J1 series and SH55J2. With a low noise level, it is ideal for use in noise-sensitive environments such as libraries and offices. Thanks to its 80 PLUS Bronze certification for energy-efficient devices, this power supply is also suitable for ENERGY STAR compliant systems. Benefit from lower power consumption and reduced energy costs with the PC61J. Shuttle power supply PC61J for Shuttle Barebones, 300W, 1 fan, 3x SATA, 24Pin ATX, 2x Molex, energy efficiency 80+ Bronze.

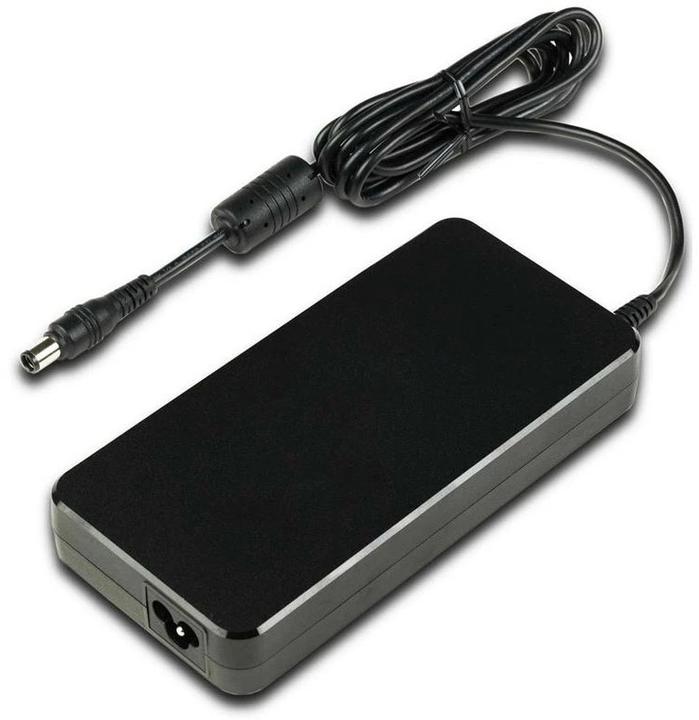

3. Shuttle XPC Power Supply PE-180 for XH510G2
The Shuttle Accessory PE180 is an external 180W power supply designed for the Shuttle XPC slim Barebone XH510G2 in conjunction with the accessory product Shuttle XPC Accessory PRC01.
4. Shuttle FSP300 / 300 Watt power supply for compatible XPC Cubes, 300 W, 90 - 264 V, 47 - 63 Hz, Acti
Efficient 300W Power Supply for Shuttle XPCs
The Shuttle XPC Accessory FSP300 is a high-performance power supply with an output power of 300W for specific Shuttle XPCs. This power supply converts the mains voltage into the low voltages required by the computer. Thanks to its high efficiency, this modern power supply meets the requirements of the 80 PLUS Bronze standard and is suitable for ENERGY STAR compatible systems.
Main Features:
- Total power output: 300 W
- AC input voltage: 90 - 264 V
- AC input frequency: 47 - 63 Hz
- Power factor correction filter (PFC): Active
- Combined power (+5Vsb): 3 W
- Max output current (+3.3V): 12 A
- Max output current (+12V): 24 A
- Max output current (+5V): 14 A
- Max output current (-12V): 0.3 A
Energy protection features: Overvoltage, Short circuit
Connections and Interfaces:
- Motherboard connector: 20-pin ATX
- Number of Molex connectors: 2
- Number of SATA power connectors: 4
- Number of PCI Express power connectors: 1
- ATX power connector (20+4 pin): Yes
Performance: Purpose PC, 80 Plus.
Power Supply PC
EUR85,90
Shuttle FSP300 / 300 Watt power supply for compatible XPC Cubes, 300 W, 90 - 264 V, 47 - 63 Hz, Acti
300 W
5. Shuttle FSP500 / 500 Watt power supply for compatible XPC Cubes, 500 W, 90 - 264 V, 47 - 63 Hz, Acti
Efficient 500W Power Supply for Shuttle XPCs
The Shuttle XPC Accessory FSP500 is a high-performance power supply with an output power of 500W for specific Shuttle XPCs. The power supply converts the mains voltage into the low voltages required by the computer. Thanks to its high efficiency, this modern power supply meets the requirements of the 80 PLUS Gold standard and is suitable for ENERGY STAR compatible systems.
Power Supply PC
EUR129,–
Shuttle FSP500 / 500 Watt power supply for compatible XPC Cubes, 500 W, 90 - 264 V, 47 - 63 Hz, Acti
500 W
6. Shuttle POWER SUPPLY PC850 850W
850 Watt Upgrade Power Supply for Shuttle XPC Cubes
The Shuttle XPC Accessory PC850 is an internal 850W switching power supply (PSU) designed as an upgrade kit for specific Shuttle products. This power supply guarantees an excess of power for demanding processors and graphics cards. With the 80 PLUS Platinum logo and Energy Star V5.0 compliance, your electricity bill will be noticeably lower compared to previous power supply models.
Compatibility
Compatible with the following Shuttle XPCs in cube format:
- SH610R4
- SH510R4
- SH570R6 (Plus)
- SH570R8
- SW580R8
- SH310R4V2 with serial number SH310V20501...
- SH370R6V2 with serial number SH370V20801...
- SH370R6V2 Plus with serial number SH370V20901...
- SH370R8 with serial number SH370R80701...
Package Contents:
- Internal Power Supply (850 W)
- Mounting bracket with screw
- Quick installation guide
AC Input
Input Voltage: 100 - 240 V AC (auto), 50 - 60 Hz
Input Current: max. 10.0 - 6.0 A
Active Power Factor Correction (PFC) according to EN61000-3-2
AC Connection: C14 power connector, 3-pole with PE (IEC-60320/C14)
DC Output Voltages
Output Voltages (max. output current):
+3.3V (20A), +5V (20A), +12V (70.8A), -12V (0.5A), +5Vsb (3A)
Low ripple: 120 mV P-P for 12V and 50 mV P-P for 3.3/5V
Rise time: less than 20ms
Hold-up time: at least 17 ms at nominal input voltage and max. 75% load
Power-Good Signal: Turn-on delay 100 - 500ms, Turn-off delay at least 1ms (TTL and CMOS compatible)
Leakage Current: less than 3.5mA at 264Vac, 63Hz
Maximum Output Power
Combined power for +3.3V and +5V: max. 100 W
Total output power: max. 850 W
DC Connections
1x Mainboard connector (20-Pin ATX)
1x Mainboard auxiliary connector (4-Pin ATX 12V AUX)
4x Serial ATA power connectors (15-Pin SATA)
2x PCIe power connectors with 6+2 pins (for graphics card)
2x 4-Pin WST connector with 12V (black/yellow)
1x PMBus data cable, 5-Pin.

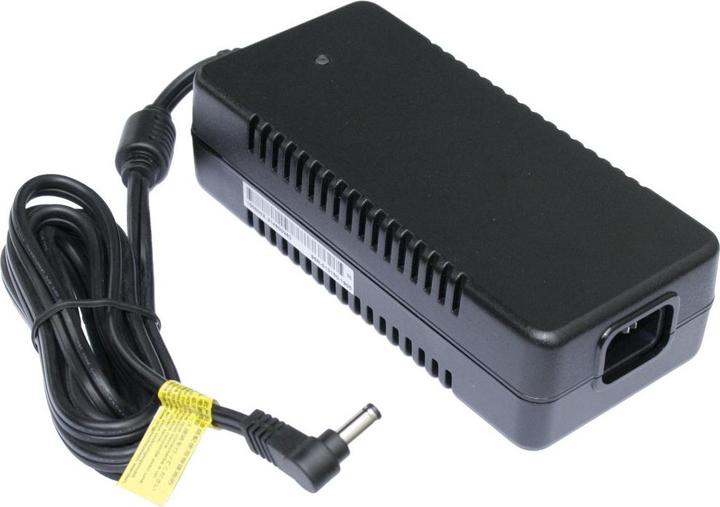

7. Shuttle External 150W power supply
Shuttle offers a wide range of optional accessories for the Box PCs BPCWL02 and BPCAL02. The PA1501 is an external 150W power supply for the Box PC, in case an extended temperature range of -20 to 60 °C is required.
