Best selling Storage controllers from Delock
On this page you’ll find a ranking of the best Storage controllers from Delock. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Delock 90010 - PCIe x1> 4x SATA Low Profile - Serial ATA - SATA
The DeLOCK 4-Port SATA PCI Express X1 card, model 90010, is a low-profile expansion card designed to integrate four internal SATA connections into a desktop computer via a PCIe x1 slot. It supports the connection of various SATA devices such as solid-state drives, hard drives, and optical drives, expanding storage capacity and data transfer capabilities. With its compact low-profile format, the card is ideal for small cases and space-constrained environments. It operates according to the PCI Express 2.0 standard and provides reliable data throughput for efficient performance. Made from durable components, this card ensures stable connectivity and is compatible with a wide range of operating systems, including Windows and Linux. Installation is straightforward and typically does not require additional drivers in most systems. Additionally, it supports hot-plug functionality for convenient device management. Perfect for users looking to expand their storage options without replacing the motherboard, it offers practical utility for home, office, or light professional use. Its robust construction and reliable performance make it a solid choice for dependable data storage and transfer.
2. Delock PCI Express card
This PCI Express card from Delock expands your PC with two M.2 NGFF slots. You can connect up to two M.2 NGFF modules in the 22110, 2280, 2260, 2242, or 2230 format to the card. Depending on whether you have SATA or USB-based modules, you will need to connect either the SATA ports or the USB port to your motherboard.
3. Delock PCI Express x1 to M.2 Key M Adapter
This Delock adapter allows you to connect an M.2 SSD in 2280, 2260, 2242, and 2230 formats. Data transfer occurs directly via the PCI Express slot.
Ideal Testing Equipment
Due to the PCIe connector and the direct installation of the SSD on the board without a housing, the Delock adapter can be excellently used as testing equipment.
Specifications
- Connections:
1 x PCI Express x1, V4.0
1 x 67 Pin M.2 Key M Slot
- Supports M.2 modules in 2280, 2260, 2242, and 2230 formats with Key M or Key B+M based on PCIe (NVMe)
- Maximum height of components on the module: 1.5 mm, use of double-sided populated modules possible
- Supports NVM Express (NVMe)
- 2 x LED indicators for power and activity
- Bootable
- Dimensions (LxWxH): approx. 100 x 24 x 6 mm
- Plug & Play
System Requirements
- Linux Kernel 4.6.4 or higher
- Windows 8.1/8.1-64/10/10-64/11
- PC with a free PCI Express slot
Package Contents
- M.2 Adapter
- 1 x Thermal pad
- M.2 mounting materials
- Screwdriver
- User manual.
4. Delock PCI Express x8 card to 2 x internal NVMe M.2 Key M
This PCI Express card from Delock expands the PC with two M.2 slots. M.2 SSDs in 22110, 2280, 2260, 2242, and 2230 formats can be connected to these slots. The card requires the PCIe bifurcation function of the motherboard to split the PCIe signal when multiple slots are occupied with M.2 SSDs. Note: Without PCIe bifurcation, only the first M.2 slot on the card can be used.
Main Features
Connections and Interfaces
- Host Interface: PCIe
- Output Interface: M.2
- Host Interface Gender: Male
- Expansion Card Form Factor: Low Profile
- Expansion Card Standard: PCIe 4.0
- NVMe: Yes
- Number of M.2 (M) Slots: 2
Design
- Built-in: Yes
- LED Indicators: Yes
- Easy Installation: Yes
Features
- S.M.A.R.T. Support: Yes
- TRIM Support: Yes
System Requirements
- Supported Windows Operating Systems: Windows 10, Windows 11, Windows 8.1
- Supported Linux Operating Systems: Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15
- Supported Server Operating Systems: Windows Server 2019
- Support for Other Operating Systems: UEFI 2.3
Packaging Data
- Quantity per Package: 1 piece(s)
- Mounting Brackets Included: Yes
- Operating Instructions: Yes
- Packaging Type: Box.
5. Delock PCI Express x8 card to 2 x internal NVMe M.2 Key M
This PCI Express card by Delock expands the PC by two M.2 slots. M.2 SSDs in the 22110, 2280, 2260, 2242 and 2230 format can be connected. The card requires the PCIe bifurcation of the motherboard in order to split the PCIe signal and use multiple slots with M.2 SSDs. Please note: Without PCIe bifurcation, only the first M.2 slot of the card can be used.

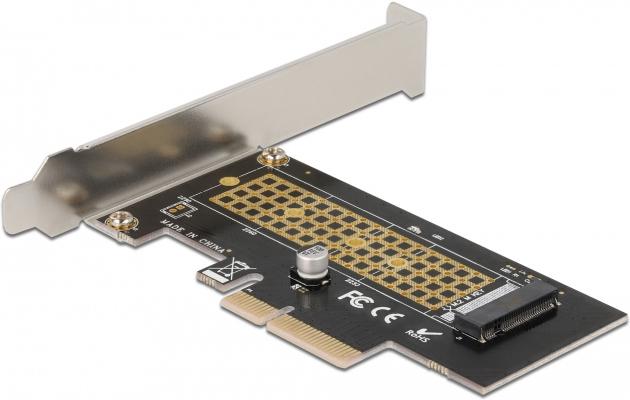

6. Delock PCI Express x4
This PCI Express card from Delock expands the PC with an M.2 slot. An M.2 module in 2280, 2260, 2242, or 2230 format can be connected to the card.
Internal connections:
1 x 67 Pin M.2 Key M Slot
1 x PCI Express x4, V4.0
Interface: PCIe / NVMe
Supports M.2 modules in 2280, 2260, 2242, and 2230 formats with Key M or Key B+M based on PCIe.
Maximum height of components on the module: 1.5 mm, use of double-sided modules is possible.
1 x LED indicator
Supports NVM Express (NVMe)
Bootable, from UEFI version 2.3.1
Supports S.M.A.R.T.
Supports TRIM
Package contents:
- PCI Express card
- Low profile bracket
- Screwdriver
- Mounting materials
- Thermal pad
- User manual.
7. Delock Host Bus Adapter PCIe x1 card to 2x M.2 Key B bootable
This PCI Express card from Delock expands the PC with two M.2 slots. Up to two M.2 SATA modules in 2280, 2260, 2242, or 2230 format can be connected to the card. The large heatsink ensures adequate cooling for the M.2 modules.

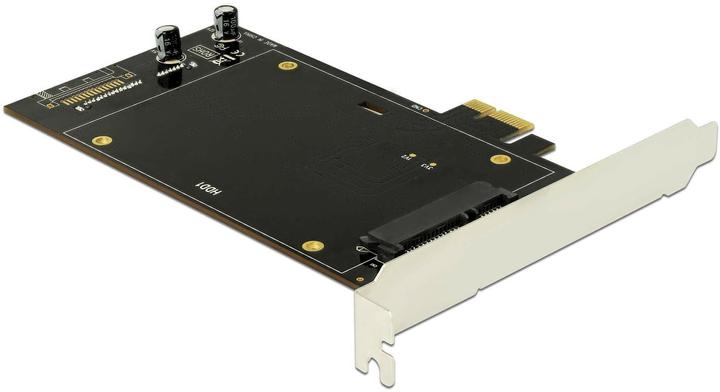

8. Delock 2x SATA PCI-Ex1 controller
This PCI Express card from Delock expands the PC with two SATA 22 pin ports. Up to two 2.5-inch SSDs or HDDs can be connected to the card. The SSDs or HDDs are mounted on both sides of the PCIe card.
Note: When using both SATA ports, the adjacent PCI slot will be occupied.
Specifications:
- Connections:
- Internal:
- 1 x PCI Express x1, V2.0
- 2 x SATA 22 pin socket
- Chipset: Asmedia ASM1061
- Suitable for 2.5-inch SATA HDD/SSD:
- SATA HDD/SSD up to 6 Gb/s
- Supports 5 V HDD/SSD
- Bootable
- Supports Native Command Queuing (NCQ)
- Dimensions (LxWxH): approx. 150 x 120 x 20 mm
System Requirements:
- Linux Kernel 4.9.4 or higher
- Windows 7/7-64/8.1/8.1-64/10/10-64
- PC with a free PCI Express slot
Package Contents:
- PCI Express card
- 8 x mounting screws
- 2 x HDD/SSD mounting brackets
- Driver CD
- User manual.

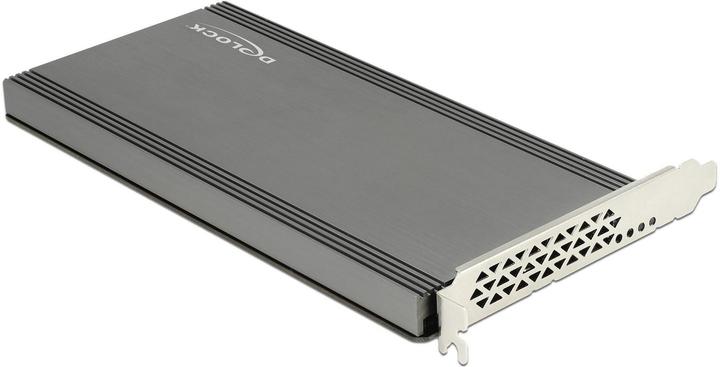

9. Delock PCI-Ex16 controller, NVMe sup.
This PCI Express card from Delock expands the PC with two M.2 slots. Up to two M.2 SSDs in 2280, 2260, 2242, and 2230 formats can be connected to these slots. The large heatsink and the fan on the board ensure adequate cooling of the M.2 modules.
Specifications:
- Connections:
- Internal: 2 x 67 Pin M.2 Key M Slot
- 1 x PCI Express x16, V3.0
- Chipset: Asmedia ASM2824
- Interface: PCIe
- Supports M.2 modules in 2280, 2260, 2242, and 2230 formats with Key M or Key B+M based on PCIe
- Maximum height of components on the module: 1.5 mm, use of double-sided modules possible
- Data transfer rate of up to 32 Gbps
- Supports NVM Express (NVMe)
- Bootable (one slot - CN1)
- 1 x 40 mm fan for active cooling of the M.2 modules
- 1 x heatsink
- 2 x LED indicators
- Dimensions of heatsink (LxWxH): approx. 202 x 95 x 8 mm
System Requirements:
- Linux Kernel 3.17 or higher
- Windows 7/7-64/8.1/8.1-64/10/10-64/11
- PC with a free PCI Express x16 / x32 slot
Package Contents:
- PCI Express card with fan
- Heatsink
- M.2 mounting materials
- Screwdriver
- 3 x thermal pads
- User manual.
10. Delock Host Bus Adapter PCI-Ex8 - 4x NVME M.2 bootable
This PCI Express card from Delock expands the PC with four M.2 slots. Up to four M.2 SSDs in the 22110, 2280, 2260, and 2242 formats can be connected to these slots. The large heatsink and fan ensure adequate cooling for the M.2 modules.
This card is particularly well-suited for gaming and server applications, allowing the existing system to be expanded with four fast M.2 NVMe slots. All slots can be used simultaneously.
Connections: Internal: 1x PCI Express x8/x16, V3.0, 4x 67 Pin M.2 Key M Slot, 1x SATA 15 Pin power connector, 1x Molex 4 Pin power connector, 1x 2 Pin header for fan. Chipset: Asmedia ASM2824. Interface: PCIe. Supports M.2 modules in the 22110, 2280, 2260, and 2242 formats with Key M or Key B+M based on PCIe. Maximum height of components on the module: 1.5 mm, use of double-sided modules is possible. 4 x LED indicators. Data transfer rate of up to 32 Gbps. Supports NVM Express (NVMe). Bootable, from UEFI version 2.3.1. Supports S.M.A.R.T.
