Best Siemens products in the UPS category
On this page you'll find a ranking of the best Siemens products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Siemens SITOP industrial UPS system
By combining the DC UPS module with at least one battery module and a SITOP power supply, longer power outages can be bridged completely without interruption.

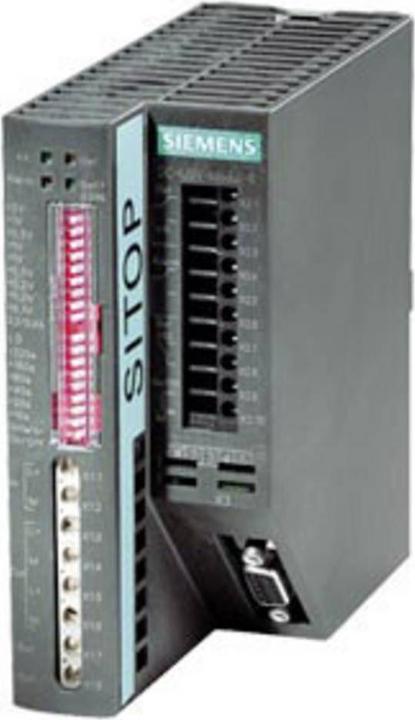

2. Siemens DC-UPS-MODULE 15A,SERIAL
Model: SITOP DC
Input Voltage: 22 to 29 V dc
Output Voltage: 21.5 to 28.5 V dc
Mounting Type: DIN Rail
Communication: Serial Port, USB
Rated Current: 15 A
Length: 125 mm
Width: 50 mm
Depth: 125 mm
Max Temperature: +60 °C
CE, UL/cUL. SITOP DC UPS. The DC UPS module can be combined with at least one 24 V battery module and a SITOP power supply. This combination allows for longer power outages to be bridged without interruption. Even with higher buffer currents, the DC UPS with maintenance-free lead-acid battery provides optimal safety. It bridges power outages of several hours and delivers up to 40 A.
Features and Benefits:
- Several hours of 24 V buffering for ongoing processes.
- Maintenance-free battery modules from 1.2 to 12 Ah.
- High reliability and availability through monitoring of operational readiness, battery supply, wear, and charge status.
- Long lifespan of loads and batteries due to integrated battery management.
- Settings via DIP switch: battery connection threshold, charge termination voltage, charge current, bridging time.
- Free software tool for easy configuration and integration into PC-based systems.
Product Application Information: These modules can be connected in parallel and bridge power outages for several hours. This bridging allows processes or parts of them to continue, measurement data to be recorded without interruption, and communication to be maintained. High-performance industrial PCs that need to be shut down also have a higher energy demand, especially when a large panel continues to operate during the shutdown. The DC UPS is used in the manufacturing of machine tools, in the textile industry, for production lines, filling systems, or for obstacle lights of wind turbines.
3. Siemens Industrial UPS system (DIN R
By combining a SITOP UPS1600 DC UPS module with at least one UPS1100 battery module and a SITOP power supply, longer power outages can be bridged without interruption. The intelligent battery management system automatically detects the UPS1100 energy storage, ensures optimal temperature-controlled charging, and provides continuous monitoring. The compact DC UPS modules are overload-capable, allowing them to deliver the inrush current required by industrial PCs. For standalone operation, they enable startup from the battery.
The DC UPS communicates openly via USB or Ethernet/PROFINET. With the two Ethernet/PROFINET ports, it can be easily integrated into the PC or PLC environment. Full integration into TIA offers convenient engineering in the TIA Portal and is supported by pre-made function blocks for S7 user programs and WinCC faceplates for quick visualization.
With the SITOP UPS Manager, simple monitoring and configuration in PC systems is also possible, such as shutting down multiple PCs based on a master-slave principle. The integrated web server also allows for remote monitoring of the DC UPS.
4. Siemens Energy storage SITOP accumulat
The SITOP akumulat energy storage unit from Siemens is a reliable battery module specifically designed for the SITOP DC UPS system. With a voltage of 24 volts and a capacity of 3.2 ampere-hours, this module provides an effective solution for buffering and ensuring an uninterrupted power supply. The product comes with a wall mount for easy installation. The SITOP akumulat is suitable for various applications where a stable and continuous power supply is required. Its compact design and thoughtful construction make it a practical choice for industrial and commercial uses. Additionally, the module meets the requirements for maintenance-free operation, further simplifying its use. The high quality and reliability of the product are reflected in the specifications, which guarantee a runtime of up to 40 seconds at full load.
- Runtime at full load: 40 seconds
- Wall mount included for easy installation
- Maintenance-free operation for reduced maintenance costs
- Suitable for SITOP DC UPS systems
- Manufactured in accordance with SBTi standards.
5. Siemens CPU 1212FC
SIMATIC S7-1200 G2: Failsafe Compact CPU 1212FC DC/DC/DC, Power Supply: DC 20.4-28.8V DC, Onboard I/O: 8x DI 24V DC, 6x DO 24V DC, Memory: Program 200 KB, Data: 500 KB, Retention: 20 KB.
The SIMATIC S7-1200 G2 Basic Controller is the first choice for flexibly and efficiently solving automation tasks in the low to medium power range. The central modules are scaled in performance, available for different input voltages, and come with transistor or relay outputs. Safety variants are also available. In addition to the already integrated inputs and outputs, the compact CPUs can be expanded directly on the device or with various signal and communication modules to precisely meet your requirements. HMI devices can also be connected via the integrated Ethernet interface.
The CPU's memory can be expanded via a memory card, and the PLC is programmed using the STEP 7 Basic software in the TIA Portal. The S7-1200 G2 offers a variety of networking options through different communication standards with integrated functions such as PROFINET, thus enabling maximum flexibility in network and topology setup.
The application areas for the S7-1200 are very diverse due to its compact design, ranging from simple packaging machines to heating systems and serving as a subordinate system in large plants. Compact design, modular structure, and integrated I/Os help save space in the control cabinet. The project planning software STEP 7 is integrated into the TIA Portal, providing access to a common data repository, a unified operating concept, and consistent communication services for all components of a system. This means less project planning effort and faster commissioning.
6. Siemens Buffer module SITOP modular 24V
Accessory Type: Buffer Module
For Use With: SITOP
SITOP accessory. Mounting bracket. By combining a SITOP power supply with a 90° mounting bracket, minimal surface area is required on the back wall of the control cabinet. The width of the power supply becomes the depth, and the depth becomes the width. The mounting bracket is suitable for cabinets with a depth of at least 320 mm. Mounting adapter for standard mounting rail. The single-phase power supplies 6ES7305-1BA80-0AA0 and 6ES7307-1EA80-0AA0 are special mechanical versions for SIMATIC S7-300 and can be mounted on S7 rails. A mounting adapter (6ES7390-6BA00-0AA0) for installation on the standard mounting rail EN 60715 35 x 15 is available separately as an accessory. The power supplies 6ES7307-1BA01-0AA0, 6ES7307-1EA01-0AA0, and 6ES7307-1KA02-0AA0 are variants for SIMATIC S7-300 and can also be mounted on S7 rails. A mounting adapter (6EP1971-1BA00) for installation on DIN rail EN 60715 35 x 15/7.5 is available separately as an accessory. Connection plugs for devices with protection classes IP65 and IP67. For the maintenance-free DC UPS module SITOP UPS500P (6EP1933-2NC01, 6EP1933-2NC11) with protection class IP65. A connector set (6EP1975-2ES00) for input and output, along with a pre-assembled USB cable (2 m long), is available as an accessory. Device labels. Blank labeling plates for devices (20 x 7 mm, pastel turquoise) with 3RT1 900-1SB20 can be used to label the power supplies. The packaging unit includes 340 labels on frames, with 20 labels per frame. Information on usability can be found under "Accessories in the technical data of the respective power supplies.".
7. Siemens Energy storage
The Siemens energy storage system, also known as the SITOP battery module, is a reliable solution for ensuring power supply in critical applications. With a capacity of 1.2 Ah and an output voltage of 24 V, this battery module provides a stable energy source for various devices and systems. It is specifically designed for use in SITOP DC UPS systems and ensures uninterrupted power supply. The energy storage unit is maintenance-free and features a compact design that allows for easy integration into existing systems. The operating time at full load is 60 seconds, which is sufficient for many applications to ensure safe operation. The Siemens energy storage system is not only functional but also environmentally conscious, as the manufacturer is committed to sustainable practices.
- Maintenance-free design for easy handling
- Suitable for SITOP DC UPS systems
- Operating temperature range of -5 to 40 °C
- Manufacturer's commitment to sustainability and environmental awareness.
8. Siemens Industrial UPS system
By combining the DC UPS module with at least one battery module and a SITOP power supply, longer power outages can be bridged completely without interruption.
9. Siemens Sitop Battery 12ah
Capacity: 12Ah
Rated voltage: 24V
Dimensions: 118 x 253 x 121mm
Operating temperature range: +5 to +40°C
Battery modules DC UPS are maintenance-free accumulator modules with 1.2-12 Ah (lead-gel accumulator) suitable for ambient temperatures from 0 to +40°C. A high-temperature battery module with 2.5 Ah (pure lead-acid battery) is available for ambient temperatures from -40°C to +60°C. The accumulator modules are pre-wired with a battery holder and connectors. For longer buffer times, the accumulator modules can be connected in parallel. They can be mounted on standard mounting rails or directly on the wall.
Features and benefits include protection class III and the ability to be mounted on DIN rail or directly on a wall. The modules come pre-wired with a battery holder and terminals.

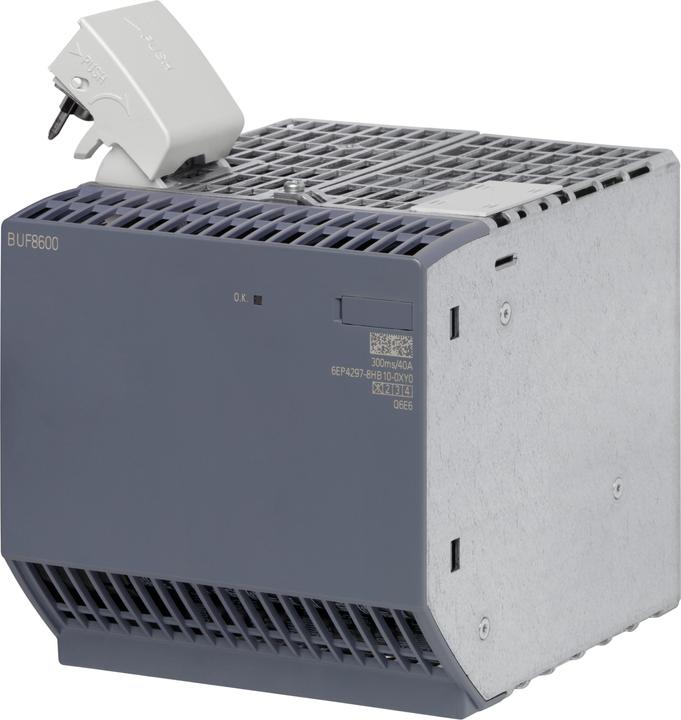

10. Siemens USV-Puffermodul 6EP4297-8HB10-0XY0
Siemens Digital Industries Buffer Module 6EP4297-8HB10-0XY0
Manufacturer: Siemens Digital Industries
Designation: Buffer Module 300 ms/40A
Type: 6EP4297-8HB10-0XY0
SNMP: no
Height: 125 mm
Width: 125 mm
Depth: 150 mm
Weight: 2.26 kg
Network Management Capable: no
UPS Technology: Offline
Siemens Digital Industries Buffer Module 6EP4297-8HB10-0XY0: additional details
SITOP BUF8600 300 ms Buffer Module for PSU8600
Buffer Capacity 300 ms/40 A with electrolytic capacitors, maintenance-free
*EX approval no longer available*
The SITOP BUF8600 buffer modules with maintenance-free energy storage are part of the SITOP PSU8600 system kit and reliably bridge short-term power outages up to 300 ms at DC 24 V and 40 A full load. They automatically take over the DC power supply in the event of a power failure. Up to two BUF8600 buffer modules can be connected to the basic unit SITOP PSU8600 in any combination. The connection is made at the top of the modules without any wiring effort via the System Clip Link, a connector for system data and power supply. The unique modular power supply system PSU8600 with complete TIA integration sets a new standard in terms of system reliability and efficiency.
EAN: 4025515154518.
