Top rated Server barebones
Here’s a ranking of the top rated Server barebones. To give you a quick overview, we’ve added the most important information about each product. This page always stays fresh and updates automatically.
1. Intertech IPC 4U-4129L
The IPC 4U 4129L is a 4U chassis with a depth of 695 mm, providing ample space for powerful server systems. The front features two removable drive cages equipped with integrated 120 mm fans, each capable of accommodating up to 5x 3.5-inch hard drives that can be installed without screws. Each drive cage can easily house 3x 5.25-inch exchange frames, allowing for easier access to the hard drives (available as an option). Additionally, five extra fans in the middle panel and at the back ensure optimal cooling for the entire system.
2. Supermicro SuperServer 5019D-FN8TP
Server barebone, 1U with front connections. Intel Xeon D-2146NT 8-core processor. 4x DIMM slots for up to 512 GB DDR4 RAM. One internal 3.5" or 4x 2.5" drive bays. 80PLUS Gold certified 200-watt power supply. 2x 10G SFP, 4x Gigabit LAN, 2x 10GB LAN, 1x IPMI LAN. Includes mainboard X11SDV-8C-TP8F. Expansion options: There is a PCI-Express x8 slot available for installing an expansion card. Additionally, the barebone features an M.2 slot in M Key format (2242/2280/22110). The brand Supermicro designs, develops, and produces optimized server solutions based on the x86 architecture. The company's extensive product range includes the industry's most comprehensive selection of server, high-end workstation, and storage systems, as well as energy-efficient server components known as Server Building Blocks Solutions, which encompass server boards, chassis, and power supplies. Moreover, Supermicro's powerful Universal I/O (UIO) expansion card technology and additional system accessories are included. Special emphasis is always placed on energy efficiency to provide effective solutions optimized for a wide range of customer applications.
3. Intertech Inter-Tech 4W2 Mining Rack
The 4W2 is a rack in a 4U format with a long installation depth (635 mm) and is designed to accommodate a large number of graphics cards alongside a motherboard. Thanks to its robust construction, the case provides the necessary support for your sensitive hardware. For optimal cooling of your hardware, six powerful 120 mm case fans are already pre-installed. Two USB 2.0 ports complete the offering.
4. Fantec SRC-4240X07 24XSAS andS
19" storage enclosure for installation in 19" industrial cabinets. Robust construction and high-quality workmanship. Pre-installed backplane for SAS or SATA hard disks.
5. Fantec SRC-4240X07-12G
4HE 680mm without power supply
19" storage enclosure for installation in 19" industrial cabinets. Robust construction and high-quality workmanship. Pre-installed backplane for accommodating SAS or SATA hard drives. Expandable with telescopic rails.
Main features
Hard drive
Storage media type: Flash, HDD, SSD
Storage drive interface: SATA
Supported storage drive sizes: 2.5, 3.5
Number of supported storage drives: 24
Connections and interfaces
Host interface: USB 2.0 Type-A
Features
Max. data transfer rate: 12 Gbit/s
Product color: Aluminum, Black, Silver
Material: Silver, Zinc steel
Country of origin: China
Cooling
Fan diameter: 12 cm
Power
Output voltage: 12 V
Weight and dimensions
Width: 430 mm
Depth: 680 mm
Height: 176 mm.
6. Intertech K-126L
Thanks to its compact design and a low installation depth of 250 mm for ITX boards, this case fits into almost any rack. The 1U K-126L offers internal space for optionally 1x 3.5-inch or 2x 2.5-inch hard drives. Two serial 40 mm fans, mounted internally behind the front panel, ensure reliable and optimal cooling.

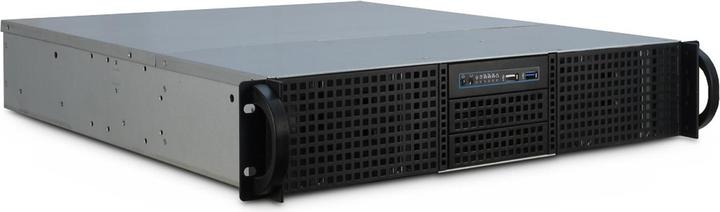

7. Intertech 2U-20248
The IPC 2U-20248 is the perfect rack for a cost-effective server system. With its excellent material quality and outstanding craftsmanship, Inter-Tech has laid the foundation for a highly versatile case.
The IPC 2U-20248 allows for the installation of up to eight 3.5" and three 2.5" hard drives internally. Two standard 80 mm fans ensure reliable optimal cooling.
The USB 2.0 ports are easily accessible at the front.
8. Silverstone RM23-502-Mini
2U rack server case with a black front. Suitable for boards from Mini-ITX to Micro-ATX. Two 80 x 25 mm fan slots at the front. Four low-profile expansion slots. 2x 5.25-inch bays at the front, 2x 3.5-inch and 1x 2.5-inch internal slots.
The SilverStone SST-RM23-502-MINI is a 2U server case with a black front. It features a large perforation for improved airflow, numerous status LEDs, two USB 3.0 ports, and individual power and reset buttons. The two handles at the front make it easier to pull the case out of the server rack with optional telescopic rails.
The case provides internal space for two 3.5-inch HDDs and one 2.5-inch drive. Two 5.25-inch drives can be installed at the front. It can accommodate motherboards up to the Micro-ATX form factor. There are four low-profile slots available for expansion cards. To cool the hardware and drives, there are two slots for 80x25 mm fans at the front.
Technical details:
- Dimensions: 430 x 88.5 x 400 mm (W x H x D)
- Case form factor: 2U
- Net weight: approx. 4.8 kg
- Material: Steel (1 mm)
- Color: Black, Silver
- Form factor: Mini-ITX, Micro-ATX
- Power supply: 2U single or 2U redundant, ATX
- Expansion slots: 4 (Low Profile)
- Drive bays: 2x 5.25 inches (external), 2x 3.5 inches (internal), 1x 2.5 inches
- Fans possible: 2x 80 x 25 mm (front)
- Front I/O: 2x USB 3.0, 1x power button, 1x reset button, 1x LED (operation), 1x LED (HDD status), 2x LED (LAN)
- Maximum CPU cooler height: 65 mm.
9. Silverstone RM41-H08
SilverStone RM41-H08.
10. Sonnet Housing RackMac mini 2018
RackMac mini for 2011, 2012, 2014, 2018, and M1 Mac mini
1U enclosure for installing and securing one or two Mac mini computers in a standard 19-inch rack.
Mac minis are great all-purpose computers and work excellently as servers for many applications. However, integrating them into a rack presents some challenges. How do you securely mount the minis? How do you keep them cool? How do you power them on without pulling them out of the rack? How do you plug in a USB stick for a quick update? Sonnet’s RackMac mini addresses all these challenges and more!
The RackMac mini is made of sturdy steel and is a fully assembled rackmount solution that supports one or two Mac mini computers installed side by side in 1U of rack space, with the computers placed behind a neat front panel.
The design of the enclosure – updated to properly support 6-core Mac mini models – ensures airflow through the computers to keep them as cool as the ambient air in the rack or on a desk, allowing you to stack them closely together for a Mac mini server farm.
The RackMac mini provides access through the front panel to each Mac mini’s power switch and one of its USB-A ports, enabling you to turn each computer on and off and connect a keyboard, mouse, USB drive, or other USB device.
