EVN LED recessed panel -round -LDR120125ws -IP547W -581lm 658lm
658 lmLuminous flux3
Product details

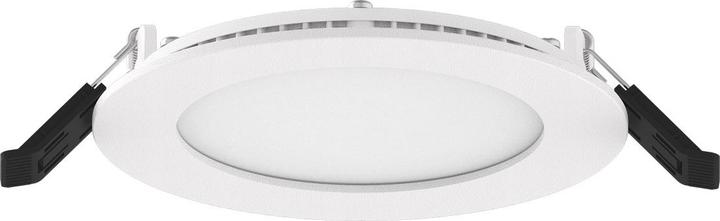

LED recessed panel for various applications, such as uniform yet effective lighting in hallways, living rooms, offices, and much more. Due to its low installation depth, the panel can be easily used in suspended ceilings with simple cladding as well as on walls. The large light output ensures very homogeneous illumination of the room. The light guide and diffuser are made of non-yellowing PMMA. The fixture can be operated with an input voltage of 176-280V/DC. The connection cable between the power supply and the fixture is 40 cm long and is connected via a plug system. The power supply has the following dimensions: diameter 57 mm, height 24 mm. With the switch attached to the cable, one of two light colors can be selected. The possible color temperatures and the resulting lumens are: 3000K (581 lm), 4000K (658 lm). The fixture is also flicker-free. The included power supply can be dimmed either via DALI or Push-L. L80B20 at 50,000 hours. Protocol: DT6, DALI2.
Application range | Indoor |
Scope of illuminant | Bulb not included |
Dimmability | Dimmable |
Material | PMMA |
Item number | 36368627 |
Manufacturer | EVN |
Category | Wall lamps + Ceiling lamps |
Manufacturer no. | LDR120125 |
Release date | 16.6.2023 |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | PMMA |
Application range | Indoor |
Wall & Ceiling Light Type | LED panel |
Dimmability | Dimmable |
Dimmer control | Dali |
Mounting type | Built-in |
Form | Round |
Scope of illuminant | Bulb not included |
Bulb type | LED light |
Housing | Matt |
Luminous flux | 658 lm |
Light colour | White |
Colour temperature | 4000 K |
Colour rendering index | 89 |
Shielding angle | 80° |
Lamp service life | 50000 h |
Number of lights | 1 x |
Max. power per lamp | 7 W |
Smart Home | Not compatible |
Power supply | Electrical connection |
input voltage | 176-280 V |
Conventional energy consumption | 7 W |
Power consumption | 7 W |
Protection type (IP code) | IP54 |
Protection class | Protection class II |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | LED built-in panel LDR120125 |
Stack depth | 2.40 cm |
Total height | 2.40 cm |
Diameter | 5.70 cm |
