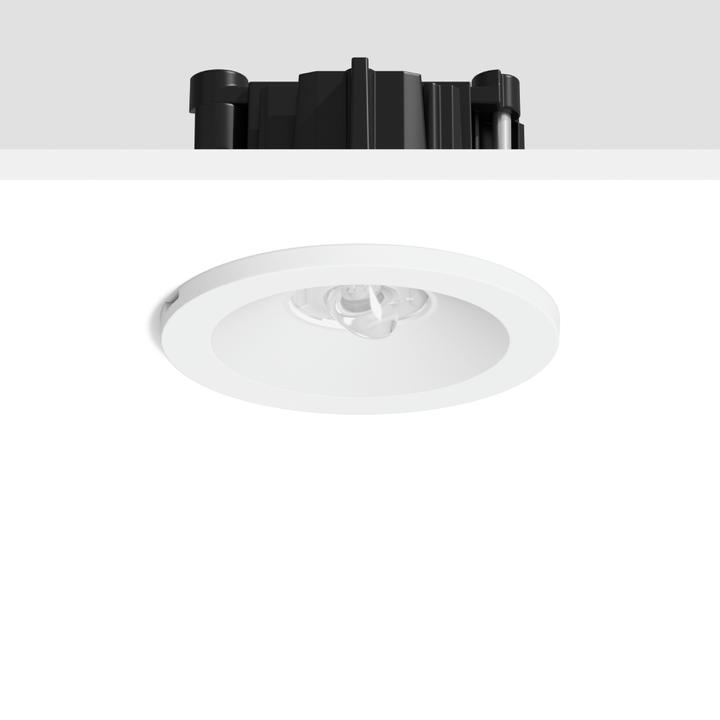

RZB LED recessed ceiling light 672561.002

Manufacturer: RZB
Designation: LED recessed ceiling light 765, EB 3h, white
Type: 672561.002
Mounting type: Recessed
Function: Escape route lighting
Suitable for labelling type: Other
With pictogram: No
Monitoring device: Automatic self-test
Switching type: Standby mode
With remote switch connection: No
With remote control: No
Power supply: Decentralised (single battery)
Battery properties: NiMh
Illuminant: LED not replaceable
With illuminant: Yes
Suitable for number of illuminants: 1
Lampholder: None
Number of lamp heads: 1
Housing material: Aluminium
Housing colour: White
Cover material: Without cover
Voltage type: AC
Rated voltage: 220-240 V
LED rated current at constant current: 18-19 mA
Control gear: LED control gear current-controlled
Replaceable control gear: Yes
Light distributor: Without
Energy efficiency class of the permanently installed light source: A++, A+, A (LED)
Constant luminous flux control: No
Protection class (IP): IP20
Protection class (NEMA): Other
Impact resistance: IK03
Protection class: II
Luminaire with limited surface temperature "D symbol": No
Rated ambient temperature according to IEC62722-2-1: 25-35 °C
Max. system power: 4.2 W
Rated luminous flux to IEC 62722-2-1: 270 lm
Luminous flux in standby mode: 190 lm
Colour temperature: 6500 K
Rated operating time: 3 h
Height/depth: 3 mm
Outer diameter: 62 mm
Installation height/depth: 76 mm
Installation diameter: 54 mm
Wiring type: Termination
Number of poles: 3
Conductor cross-section: 1.5 mm²
Connection type: Push-in connection

Further details: Round emergency luminaire for escape route lighting. Die-cast aluminium housing. Plastic cover ring. With asymmetrical plastic lens for illuminating rescue facilities. Single-battery system with automatic self-test. Also suitable for ceiling cut-outs of 68 mm with enclosed separate ceiling mounting ring. EAN: 4051859801252.
